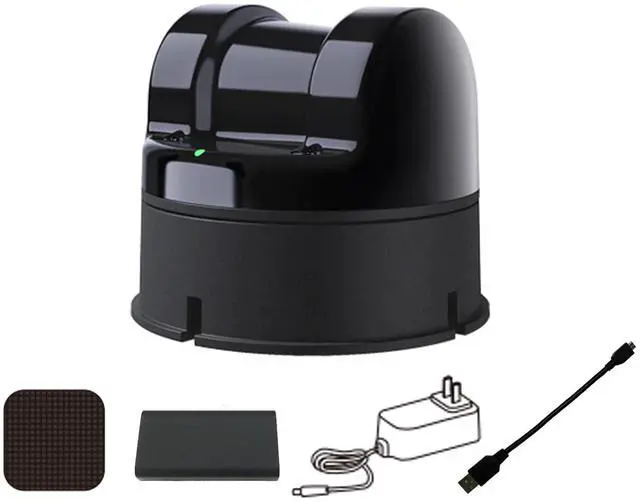

WayPonDEV L1PM 4D 3D Lidar Sensor Module Kit, 360 Degree 20 Meters Scanning Radius Rangefinder, ROS SLAM 3D Lidar Scanner for AGV Robot Navigation and Obstacle Avoidance (L1PM 20M)

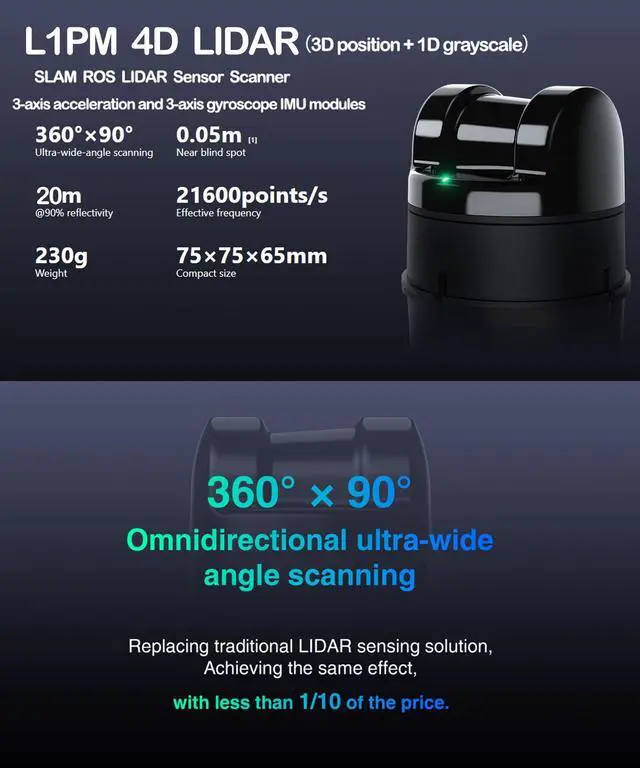

[Excellent Performance] L1 4D lidar has built-in 3-axis acceleration and 3-axis gyroscope IMU modules, supporting a push frequency of 250Hz. The circumferential scanning frequency of L1 is 11Hz, the vertical scanning frequency is 180Hz, and the effective sampling frequency is 21600 points/ Second. L1 not only has excellent performance, but also has high reliability. It can also achieve stable ranging and high-precision mapping under the strong light of 100K lux outdoors. ^^ [3D Space Detection] L1 lidar has excellent ultra-wide-angle scanning capabilities. The field of view (FOV) extends to 360 horizontally and 90 vertically.

It can realize three-dimensional space detection with a hemispherical field of view, and its application range can be expanded to More commercial scenarios. ^^ [High-speed Ranging Sampling] 4D-LiDAR L1 is a 4D lidar (3D position + 1D grayscale), which can be widely used in robots, smart cities, smart toys, logistics and other fields, supporting mapping, positioning, identification, avoidance Implementation of functions such as obstacle, environment scanning, and 3D reconstruction. ^^ [Whole House Dynamic Scanning] L1 4D lidar can quickly and accurately obtain the three-dimensional structural informati[Ultra-low Blind Zone] L1 3D lidar has an ultra-low blind zone and a minimum detection distance of 0.05 m, making it easy to achieve close range detection and recognition.

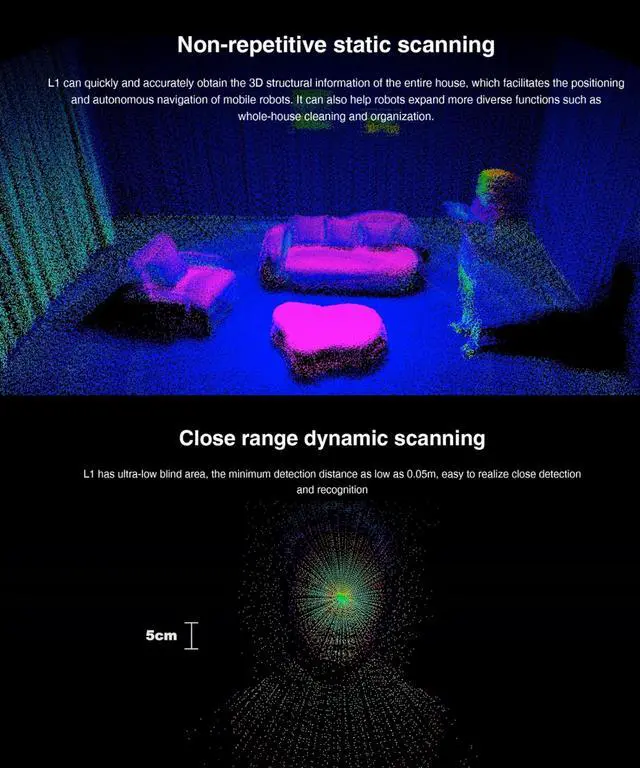

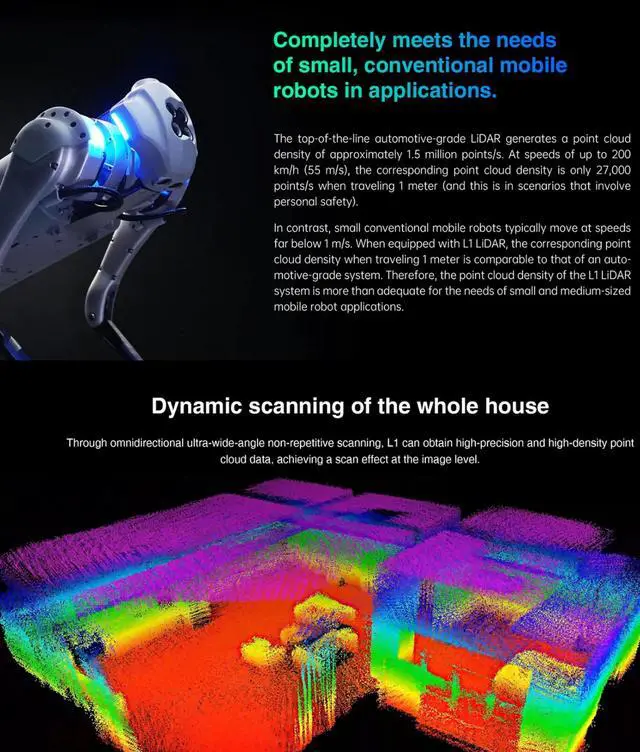

It also supportson of the whole house, which facilitates the positioning and autonomous navigation of mobile robots, and can help the robot expand richer functions such as whole-house cleaning and organization. ^^ [SDK
Document] SDK download:
"https: //www. unitree. com/download"; All technical and after-sales questions, please click "WayPonDEV" store and ask the question or leave the message to "wpd#youyeetoo&com (#-@, &-. )".
