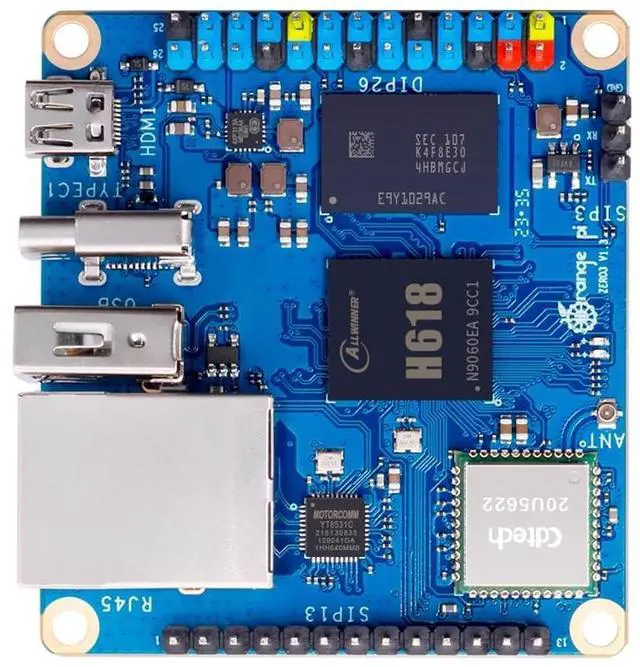

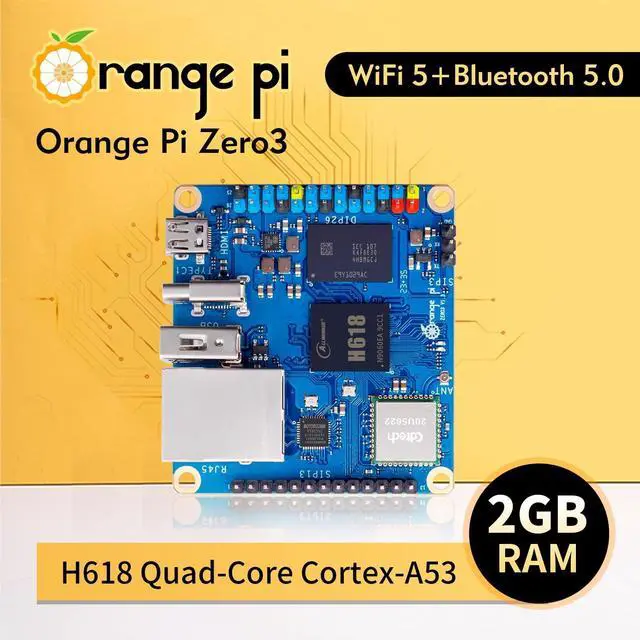

Orange Pi Zero 3 2GB LPDDR4 Allwinner H618 4-Core 64 Bit Single Board Computer, Support WiFi 5.0/Bluetooth 5.0, Development Board Run Linux/Debian/Ubuntu/Android(2GB)

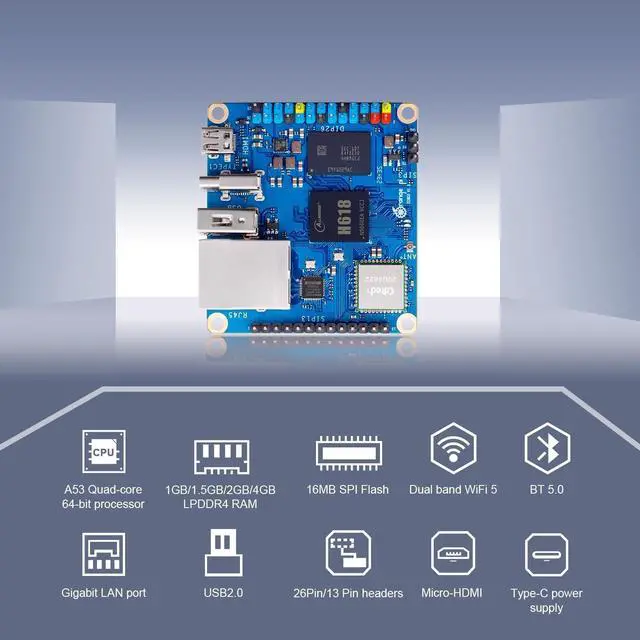

- [Fully Upgraded Version]: Orange Pi Zero 3 provides an update to the Allwinner H616-powered Orange Pi Zero 2 quadrupling the maximum memory to 4GB and embedding a larger 16MB SPI flash. The Orange Pi Zero 3 is a compact Allwinner H618 quad-core Arm Cortex-A53 SBC with 1GB/1.5GB/2GB/4GB RAM, 16MB SPI flash, micro HDMI output, Gigabit Ethernet, WiFi 5 and Bluetooth 5.0, a USB 2.0 port, and 2 headers for expansion.
- [4K Video Display Support]: Orange Pi Zero 3 delivering a seamless and immersive ultra-clear picture quality, our technology ensures stability, intricate details, and smoothness. It finds extensive applications in TV boxes, smart screen casting devices, and a wide range of other cutting-edge solutions.
- [Support Expansion Board]: Orange Pi Zero 3 development board can support earphone, 2*USB 2.0, TV out and infrared functions through conecting expansion board by 13 pin headers. In addition, the 26 pin headers on the board further enriches the function of the main board and
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Hardware specificationCPU: Allwinner H618 Quad-core Cortex-A53 processor 1.5GH zGPU: Mali G31 MP2 Supports OpenGL ES 1.0 / 2.0 / 3.2, OpenCL 2.0, Vulkan
1.1M emory: 1GB/ 1.5GB /2GB/4GB
LPDDR4On-board storage: 16MB
SPI FlashPower management: AXP313AOn-board
WiFi + Bluetooth: Supports WiFi5 and
Bluetooth 5.0N etwork: 10M/100M/1000M
Ethernet interfaceAudio input/output: 13Pin expansion port supports 2-ch output 1-ch inputVideo output: Micro HDMI up to 4K@60fps
TV-Out: 13Pin supports 1-ch
TV CVBS outputUART: 3Pin
Debug UARTUSB: USB 2.0 * 3 (two of which lead from the expansion board)
SD card interface: Micro
SD card interfaceExpansion interface: 26Pin GPIO interface 13Pin
GPIO interfacePower input: 5V3AType-c connectorOS
Support: Android 12
TVDebian11Debian12Ubuntu 22.04U buntu 20.04PCB: 50mm*55mm
1.1M emory: 1GB/ 1.5GB /2GB/4GB
LPDDR4On-board storage: 16MB
SPI FlashPower management: AXP313AOn-board
WiFi + Bluetooth: Supports WiFi5 and
Bluetooth 5.0N etwork: 10M/100M/1000M
Ethernet interfaceAudio input/output: 13Pin expansion port supports 2-ch output 1-ch inputVideo output: Micro HDMI up to 4K@60fps
TV-Out: 13Pin supports 1-ch
TV CVBS outputUART: 3Pin
Debug UARTUSB: USB 2.0 * 3 (two of which lead from the expansion board)
SD card interface: Micro
SD card interfaceExpansion interface: 26Pin GPIO interface 13Pin
GPIO interfacePower input: 5V3AType-c connectorOS
Support: Android 12
TVDebian11Debian12Ubuntu 22.04U buntu 20.04PCB: 50mm*55mm
