Transwan 4 Ports USB 3.2 Over Single-Mode Fiber Optic Extender to 250 Meters, 5 Gbps Supperspeed Compatible with USB 2.0/USB 1.1 (BY-USB-805DF(with 2 x LC Fiber Connector))

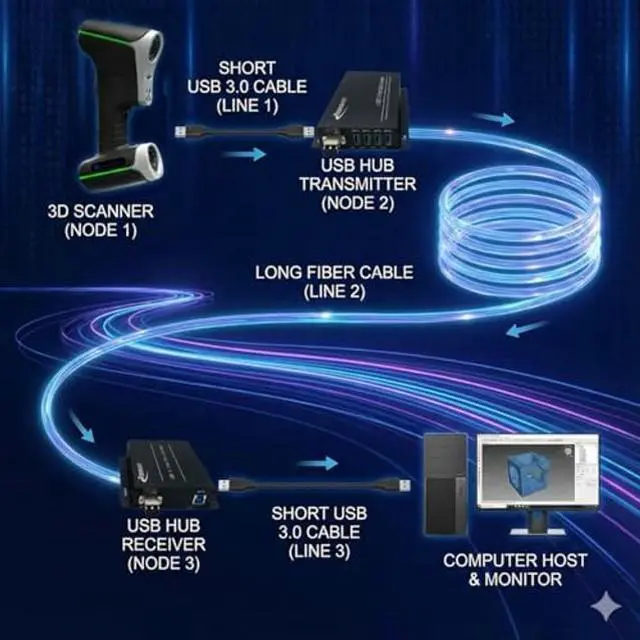

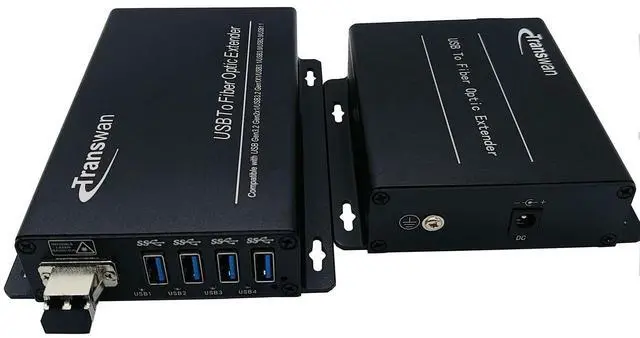

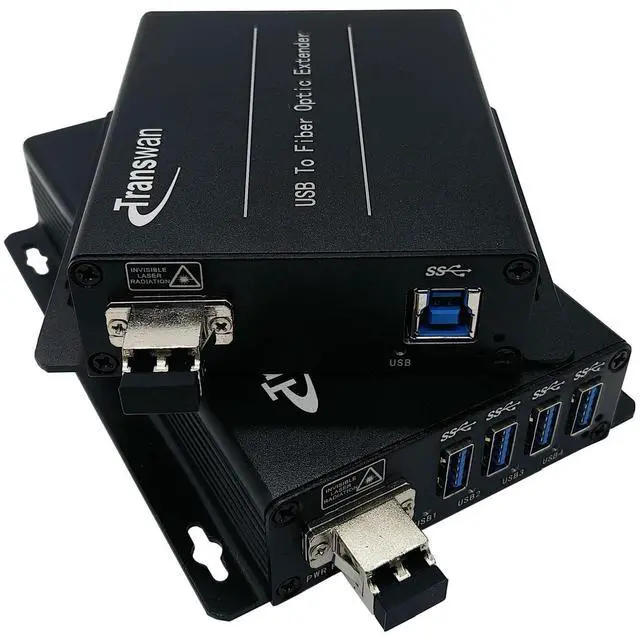

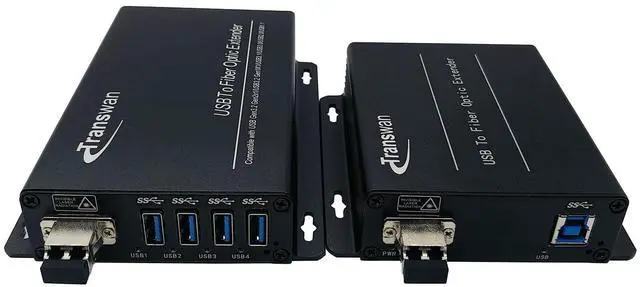

BY-USB-805 includes a transmitter (client-side) and a receiver (host-side), which can extend the Supers peed USB 3.2 / 3.1 / 3.0 / 2.0 / 1.1 to a remote location over 1 or 2 core Single-mode fiber cable, Max distance 250 Meters (820 FT). Supported Typical USB 3.1 / 3.0
Devices: 1).
USB 3.0 Camera: Intel RealSense, XiQ USB 3.0 Camera, Kinect Xbox, EMCCM camera etc2).
Instruments: Data Acquisition, Spectrum Analyzer, Oscilloscope, Ultrasonic Testing, Telescope,, 3D Scanner, FDTI Devices etc3).
Aduio Device: Stereo D to A Converter, AKai Keyboard etc4).
Computer Peripherals: Keyboard Controller, USB 3.0 Printer, USB 3.0 Flash Drive etc5. ) All USB 2.0 / 1.1 Devices such as Cameras, Printers, Scanners, Audio devices, USB touch screens, Game Controllers, Mouse and Keyboard Dongle, FTDI USB to RS232 Converter, FPGA Programmer, USB video capture device, Orientalmotor Controller, USB Bluetooth Dongle, USB headset, USB to RS232 Adapter etcTypical Applications in ROV (Remotely
Operated Vehicle): Real-Time
Video Transmission: High-definition cameras on the ROV rely on optical modules to send live video feeds to the surface.
Sensor Data Transmission: Data from sonar, depth sensors, and other instruments are transmitted via the optical module.
Control Signals: Commands from the surface operator are sent to the ROV through the optical link, ensuring precise control.
Telemetry: Information about the ROV's status, such as depth, orientation, and battery life, is transmitted in real time.
Optical:
Connector: 2 x LC or 1 x
FCWavelength: 1310nm; 1330nm/1270nmSupport
Fiber types: 9/125mTx Each USB port supports
Data rates: * Super-Speed ( 5.0 Gbps)* High-Speed (480 Mbps) * Full-Speed (12 Mbps) * Low-Speed ( 1.5

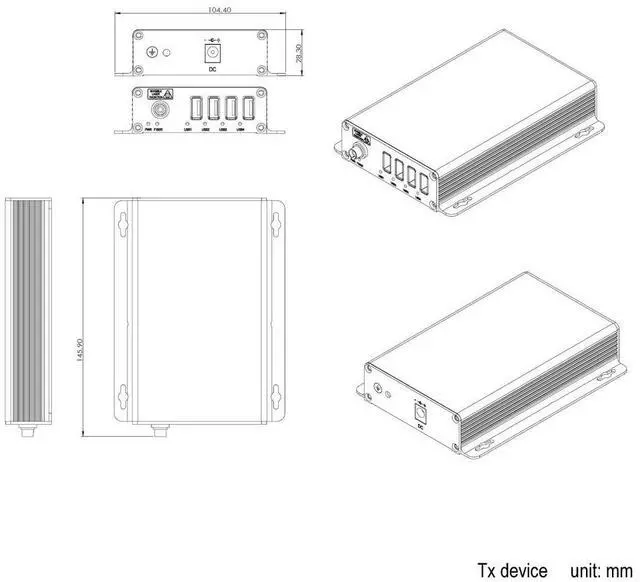

Mbps)Physical: Size (L
W H): 1)
Transmitter: 146 x 104 x 28 mm; 2)
Receiver: 111 x 104 x 28 mmUSB
Connector Type: Tx with USB 3.0 Type A Receptacle, Rx with USB 3.0
Type B ReceptacleCase Material:
AluminumColor: BlackN. W.: 1.00K gPower
Voltage: 5~12V
DCSender power consumption: <18WReceiver
power consumption:
<5WEnvironment: Working
temperature: 0-50Storage
temperature:
-40-85Humidity: 0-95%
(non-condensing)Package: 1. 1 x transmitter (client side) 2. 1 x receiver (host side). 3. 1 x Power Adapter DC 5~12V with US/EU/UK/AU plug. the receiver is powered by the host computer. 4.1 x USB Type B to Type A cable for Rx which is powered by Computer. 5. 1 x Manual.
