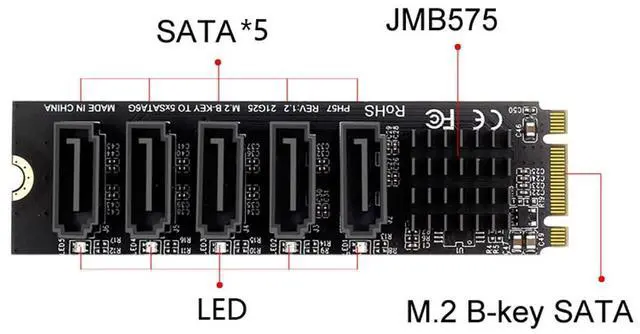

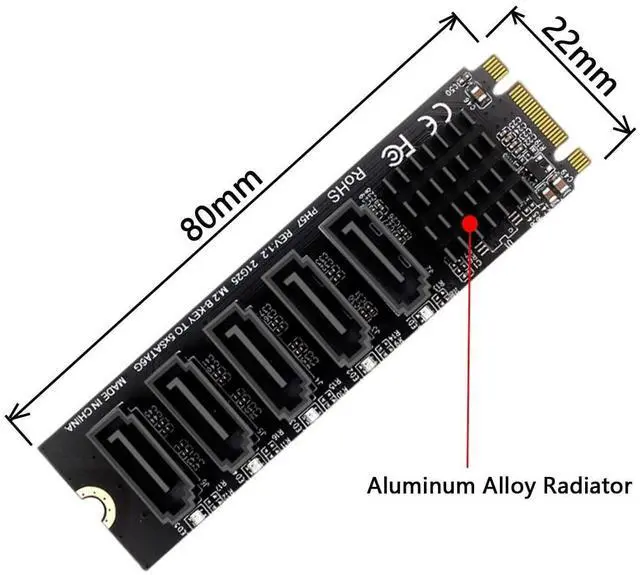

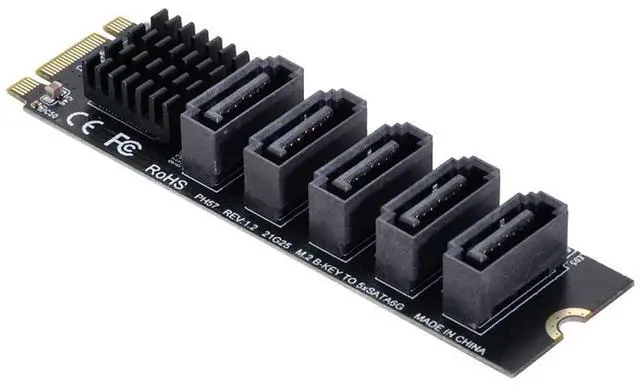

NFHK NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Multiplier Selector JMB575 2280
- JMB575 is a single chip solution. It integrated 6 independent SATA channels and a micro-processor.

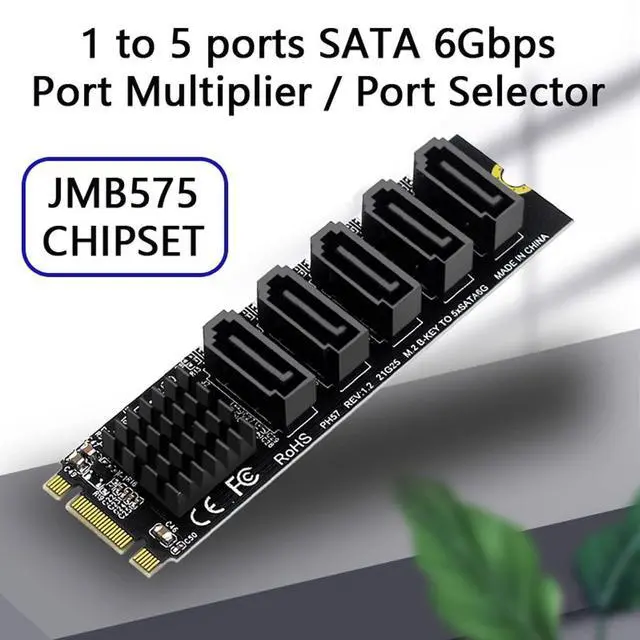

- With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port Multiplier or a 5 to 1 port SATA 6Gbps Port Selector.
- JMB575 supports cascaded mode which enables maximum 15 drives connected to one host.
- Interface: 5 * SATA3.0 interface
- Applicable slot: NGFF Key B+M
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Multiplier Selector JMB575JMB575 is a single chip solution. It integrated 6 independent SATA channels and a micro-processor. With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port Multiplier or a 5 to 1 port SATA 6Gbps Port Selector. JMB575 supports cascaded mode which enables maximum 15 drives connected to one host. Key Features Comply with Serial ATA Port Multiplier Spec. Revision 1.2 Comply with Serial ATA Port Selector Spec. Revision 1.0 Support 6 port SATA 6Gbps interface Supports BIST and loopback mode Support command-based and FIS-based switching Support PM aware and non-PM aware hostMain control chip:
JMB575Interface: 5 *
SATA 3.0 interfaceApplicable slot: NGFF Key B+M
JMB575Interface: 5 *
SATA 3.0 interfaceApplicable slot: NGFF Key B+M
