Multi-Mode LC Gigabit Fiber Media Converter - Include 2 SFP Transceiver 2Km, Wavelenth 1310nm, LC to UTP Cat5e 10/100/1000 RJ-45 Gigabit Ethernet Speed, A Set
- Fiber Port: 2KM SFP transceiver included (1.25G, Multi-mode, Wavelength 1310nm).

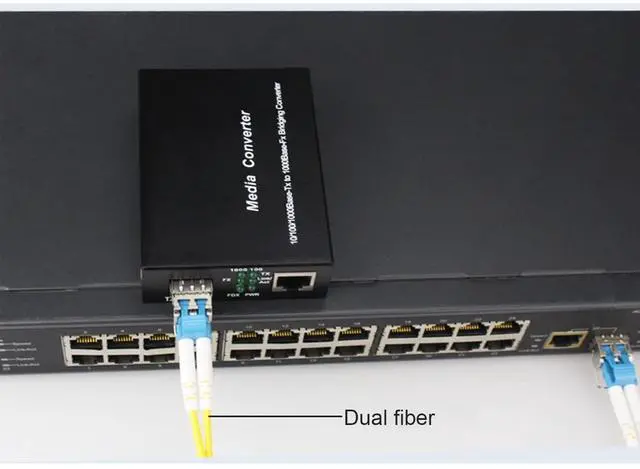

- Fiber Type: SFP MMF, Dual LC Fiber.
- AUTOMATICALLY adapts to 10/100/1000M(Gigabit)bit/s Speed And Extends it over Multi-Mode Fiber to up to 2Km.Use it with Multi-Mode Fiber Only.
- Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.
- PLUG & PLAY Fiber Media Converters - Simply plug in SFP LC port and UTP RJ-45 port, it will work immediately.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: 1.
Dimensions: 95x72x27mm (LxWxH) 2. Power Adapter working voltage AC100V~240V DC5V1A, UL Certified. 3. Power Dissipation 3 watts. 4. High-quality Conversion Chip & Easy Installation, Operating
temperature: 0C to 60C. 5.
Storage temperature: -20C to 70C.
Humidity: 5% to 90% RH.
Product content: 2x Gigabit Multimode Ethernet Fiber Media Converter. 2x Bi-Di SFP slot LC Multi-Mode module (1310nm, up to 2Km). 2x External Power Adapter (US standard),
Output voltage: 5V DC/1A, UL Certified. 1x Product Manual. LED Indicators1.

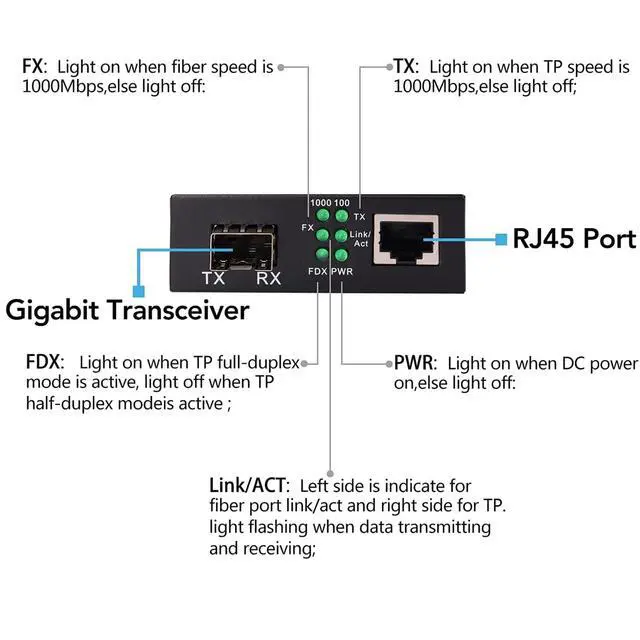

FP: Light on when fiber speed is 1000Mbps, else light off2.
TP: Light on when TP speed is 1000Mbps, else light off3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active5.
PWR: Light on when DC power on, else light off.
Dimensions: 95x72x27mm (LxWxH) 2. Power Adapter working voltage AC100V~240V DC5V1A, UL Certified. 3. Power Dissipation 3 watts. 4. High-quality Conversion Chip & Easy Installation, Operating
temperature: 0C to 60C. 5.
Storage temperature: -20C to 70C.
Humidity: 5% to 90% RH.
Product content: 2x Gigabit Multimode Ethernet Fiber Media Converter. 2x Bi-Di SFP slot LC Multi-Mode module (1310nm, up to 2Km). 2x External Power Adapter (US standard),
Output voltage: 5V DC/1A, UL Certified. 1x Product Manual. LED Indicators1.
FP: Light on when fiber speed is 1000Mbps, else light off2.
TP: Light on when TP speed is 1000Mbps, else light off3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active5.
PWR: Light on when DC power on, else light off.
