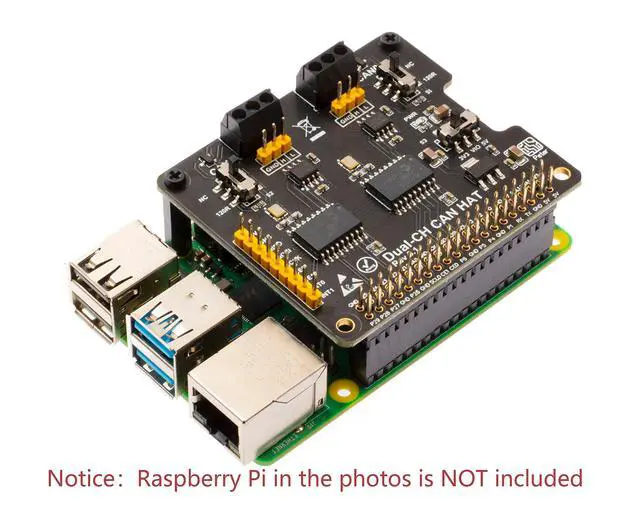

Main image of XICOOLEE Dual-CH,Can Bus Expansion HAT for Raspberry Pi, with 2-Channel CAN Interface Communication, Dual Chips MCP2515 and ATA6561

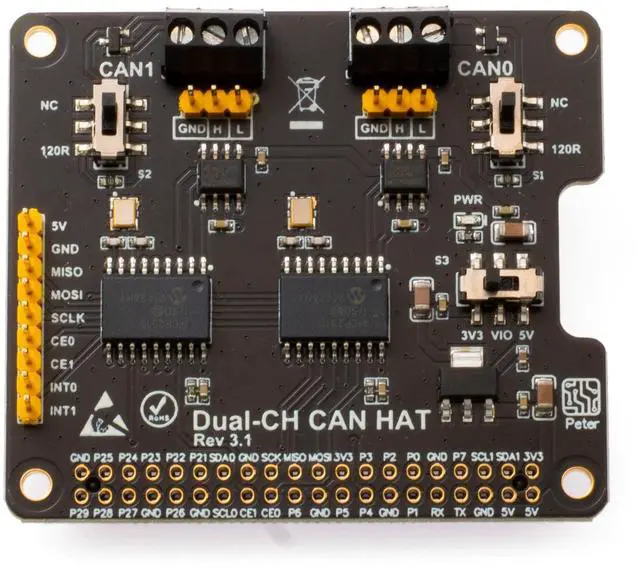

Alt view image 2 of 5 - XICOOLEE Dual-CH,Can Bus Expansion HAT for Raspberry Pi, with 2-Channel CAN Interface Communication, Dual Chips MCP2515 and ATA6561

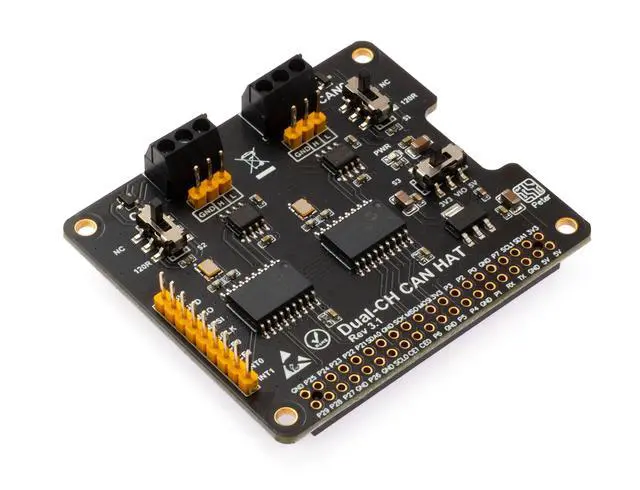

Alt view image 3 of 5 - XICOOLEE Dual-CH,Can Bus Expansion HAT for Raspberry Pi, with 2-Channel CAN Interface Communication, Dual Chips MCP2515 and ATA6561

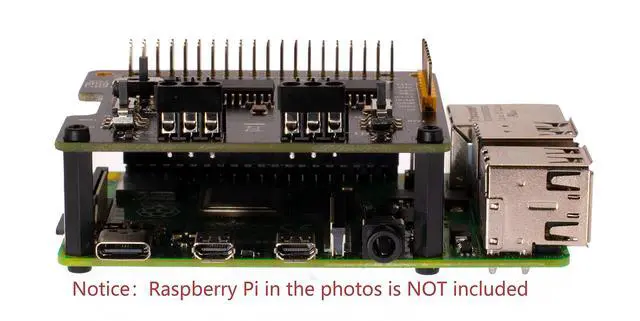

Alt view image 4 of 5 - XICOOLEE Dual-CH,Can Bus Expansion HAT for Raspberry Pi, with 2-Channel CAN Interface Communication, Dual Chips MCP2515 and ATA6561

Alt view image 5 of 5 - XICOOLEE Dual-CH,Can Bus Expansion HAT for Raspberry Pi, with 2-Channel CAN Interface Communication, Dual Chips MCP2515 and ATA6561

Shop All Bipra Products | Visit Aptly Tech Store

XICOOLEE Dual-CH,Can Bus Expansion HAT for Raspberry Pi, with 2-Channel CAN Interface Communication, Dual Chips MCP2515 and ATA6561

The module adopts dual chips of CAN controller MCP2515 and CAN transceiver ATA6561-GAQW-N. It supports dual-channel CAN interface communication, and only one module is needed to carry out CAN transceiver test on RPI
Onboard SM24CANB (Transient Voltage Suppressor), anti-static and transient spike voltage
Onboard level conversion circuit, the working level of 3.3V/5V can be switched by slide switch
Onboard 120 terminal resistance, it can be set Enable by slide switch
Leads out the SPI control interface, for connecting with host control boards like STM32/Ardui.Notice: The for Raspberry Pi in photos is NOT included.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

OverviewDual-CH Can HAT is a professional expansion board specially developed for Raspberry Pi for learning or testing the dual-channel CAN communication function with multiple protections. At the same time, it also leads to the SPI jumper wire pin interface for STM32, Ardui. and other host control boards.
SpecificationsDimensions: 65mm (length) *56mm (width)
Input voltage: 5VLogic
voltage: 3.3V
/5VCAN control chip: MCP2515CAN
transceiver: ATA6561-GAQW-NPackage
contents: 1. Dual-CH CAN HAT x12. 220PIN female header x13. Nylon pillars
24.
Screws x 4Notice: The Raspberry Pi in photos is NOT included.
