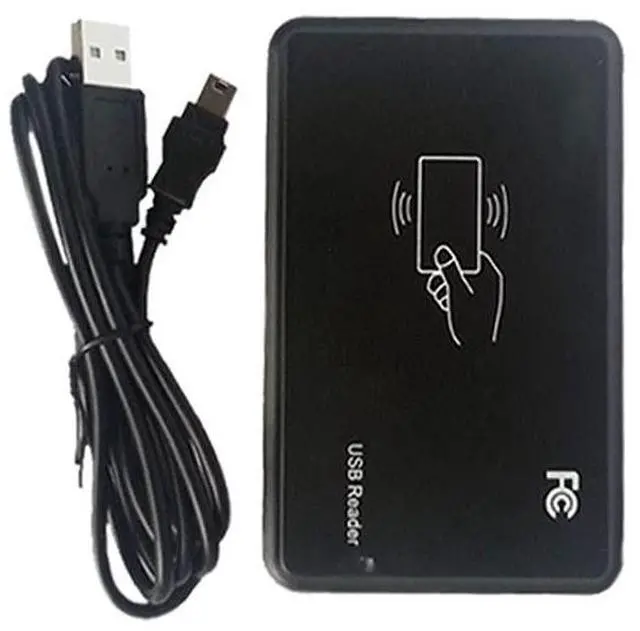

Taidacent 13.56MHz ISO14443 M1/S50/Mifare/FM1208/NTAG/NFC IC Card/CPU Card Reader/RFID Card Issuer USB Free Drive Supports Secondary Development (14443A & B & 15693 Full Agreement)
- Includes Windows, Linux, Android SDK
- Support Web page development, Java 32-bit, Java 64-bit, C#, Delphi
- This high-frequency reader can read and write IC cards and CPU cards that conform to the ISO14443 TYPE A standard protocol. The USB-HID interface is used to connect and communicate with the PC, no driver is required, and it is easy to use.

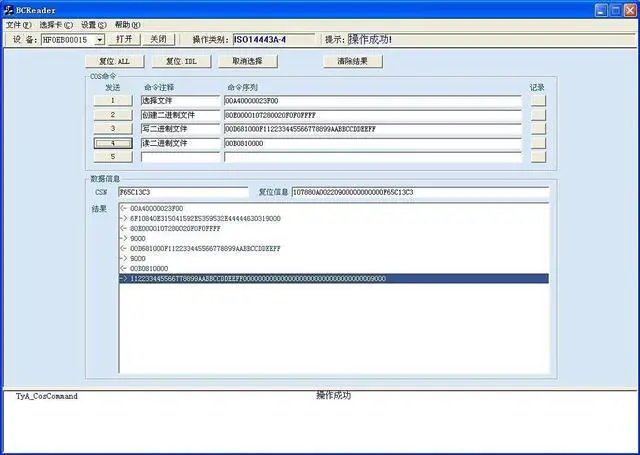

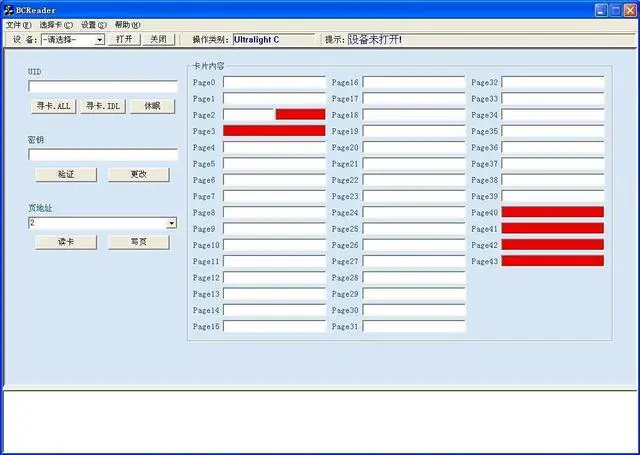

- Provide a friendly DEMO demo software. The product supports secondary development. The communication protocol and ISO14443A card reading and writing protocol have been encapsulated into simple DLL interface functions, and the card reading and writing operations can be realized by calling these functions. Provide examples of secondary development source code.
- Application areas: All-in-one card, access control, time and attendance, consumer management system terminal, e-commerce.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Interface: USB HID
Working frequency: 13.56MH
zRF standard: ISO14443ASupport
card type:
Fudan: FM11RF08, FM11RF32, FM1208, FM1216, FM12CD32NXP: MIFARE Classic 1K (S50), MIFARE Classic 4K (S70), Ultralight, Ultralight C, MIFARE DES
Fire, MIFARE ProX, NTAG203, NTAG210, NTAG212, NTAG213, NTAG215, NTAG216Other
compatible cardsSensing distance: 100mm (Mifare S50 typical distance, depending on the structure and size of the card antenna)SDK system compatibility: Windows 2000/XP/Vista/2008/7/8/10 etc.
Supported development languages: VC, C#, Java, easy language, BC, DELPHI, PB, VB, VB. NET, etc.
Display: Red and green dual color LED
Buzzer: YesPower
supply: USB power supply, DC5VWorking
current: 120mAWorking
temperature: -40
85Dimensions: 70mm*105mm*12mm
( 0.5 )Weight: about
50gColor: black
Working frequency: 13.56MH
zRF standard: ISO14443ASupport
card type:
Fudan: FM11RF08, FM11RF32, FM1208, FM1216, FM12CD32NXP: MIFARE Classic 1K (S50), MIFARE Classic 4K (S70), Ultralight, Ultralight C, MIFARE DES
Fire, MIFARE ProX, NTAG203, NTAG210, NTAG212, NTAG213, NTAG215, NTAG216Other
compatible cardsSensing distance: 100mm (Mifare S50 typical distance, depending on the structure and size of the card antenna)SDK system compatibility: Windows 2000/XP/Vista/2008/7/8/10 etc.
Supported development languages: VC, C#, Java, easy language, BC, DELPHI, PB, VB, VB. NET, etc.
Display: Red and green dual color LED
Buzzer: YesPower
supply: USB power supply, DC5VWorking
current: 120mAWorking
temperature: -40
85Dimensions: 70mm*105mm*12mm
( 0.5 )Weight: about
50gColor: black
