VSDISPLAY 9.7 Inch IPS LCD Screen 2048x1536 9.7'' LP097QX1/LTL097QL01/HQ097QX1 with USB-C LCD Controller Board VS-RTD2556HC-V2
- Specification9.7'' 2048x1536 IPS LCD screen,comes with USB-C LCD controller board VVS-RTD2556HC-V2;Brightness:400 cd/m (Typ.);Contrast ratio:800:1 (Typ.) (TM)
- LCD Size DetailsOutline size:208.8167.125.17mm(HVD);Display area:196.608147.456(HV)mm
- Advantage2048x1536 pixel,IPS screen panel,full view angle,the display image shows more clarify and vivid,bring better visual enjoyment

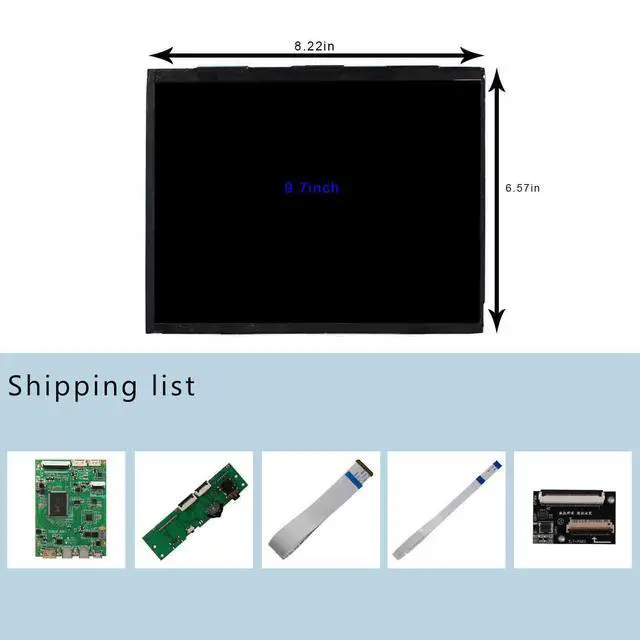

- Packing List1 USB-C LCD Controller Board VS-RTD2556HC-V2;1 9.7inch 2048x1536 IPS LCD Screen (One of LP097QX1/LTL097QL01/HQ097QX1,send random);1 Signal Cable;1 x Converter Board;1 Keyboard With Cable
- Should Be ClarifiedThe controller board and signal cable is brand new ,the screen is used,but there is no problem on appearance and displaying,there is no bad pixel
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

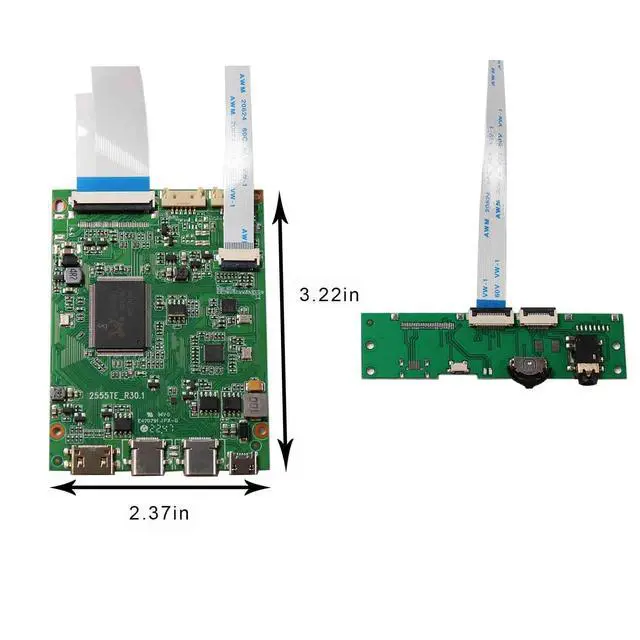

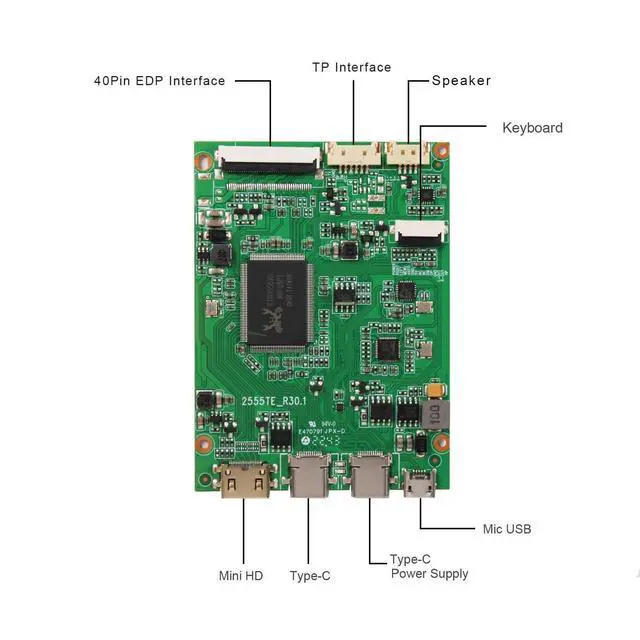

LCD Controller Board: USB C Control Board Work for 40Pin EDP
LCD ScreenInput Power Adapter: USB-C connectorCome In Standby Model When Not Input SignalStandby Model < 0.3WI nput:
USB-COutput: eDP USB (max 500mA)
Audio Output:
SpeakerOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: English Chinese French Deutsch Italian Espanol Portugues Turkce PolskiNederlands Korean JapaneseBoard Size: 82mm x 60mm x 4mm 9.7 " 2048X1536
LCD Screen: Display Mode SymmetryResolution 2048 (RGB) 1536Outline Size 208.8167. 125.17 mm (HVD) Display Area 196.608147. 456 (HV) Brightness 400 cd/m (Typ. )Contrast Ratio 800:1 (Typ. ) (TM) Viewing Angle 89/89/89/89(Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface 51 pins eDP (4 Lanes), FPC
Backlight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 LCD Controller Board VS-RTD2556HC-V21 9.7 inch 2048x1536 IPS LCD Screen (One of LP097QX1/LTL097QL01/HQ097QX1)1 Signal Cable1 x Converter Board1
Keyboard With CableTips: All the products are tested before package and shipment, if any problem of product, please feel free to contact us
LCD ScreenInput Power Adapter: USB-C connectorCome In Standby Model When Not Input SignalStandby Model < 0.3WI nput:
USB-COutput: eDP USB (max 500mA)
Audio Output:
SpeakerOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: English Chinese French Deutsch Italian Espanol Portugues Turkce PolskiNederlands Korean JapaneseBoard Size: 82mm x 60mm x 4mm 9.7 " 2048X1536
LCD Screen: Display Mode SymmetryResolution 2048 (RGB) 1536Outline Size 208.8167. 125.17 mm (HVD) Display Area 196.608147. 456 (HV) Brightness 400 cd/m (Typ. )Contrast Ratio 800:1 (Typ. ) (TM) Viewing Angle 89/89/89/89(Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface 51 pins eDP (4 Lanes), FPC
Backlight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 LCD Controller Board VS-RTD2556HC-V21 9.7 inch 2048x1536 IPS LCD Screen (One of LP097QX1/LTL097QL01/HQ097QX1)1 Signal Cable1 x Converter Board1
Keyboard With CableTips: All the products are tested before package and shipment, if any problem of product, please feel free to contact us
