WL-DP01 50VA Hi-Fi Ultra-Low Noise Linear Power Supply, 3-Level Filtering, Dual DC Output LPS 5V/9V/12V/15V/16V/18V/19V/24V (DC 5V / 3.5A)
- Ultra-Low Noise Circuit: Features an excellent performance, ultra-low noise TL431+ high-power transistor discrete voltage regulator circuit.
- 3-Level Filtering: Adopts a 3-level filtering design (first-level EMI, second-level capacitor array, third-level CLC) to reduce the output ripple to the lowest limit of instrument testing.
- Dual Output Sockets: Equipped with two DC output sockets. Please note: Both outputs deliver the same voltage and share the total output current; they are not independent outputs.
- Multiple Voltage Options: Available in multiple configurations to match your device, such as DC 5V/3.5A , 9V/3.5A , 12V/4A , 15V/3.3A , 19V/2.6A , and 24V/2A.
- Package Includes: 1 x WL-DP01 50VA Linear Power Supply, 2 x 1.2M GX16-2 PIN to 5.5*2.5mm DC output cables and1 x AC input cable.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

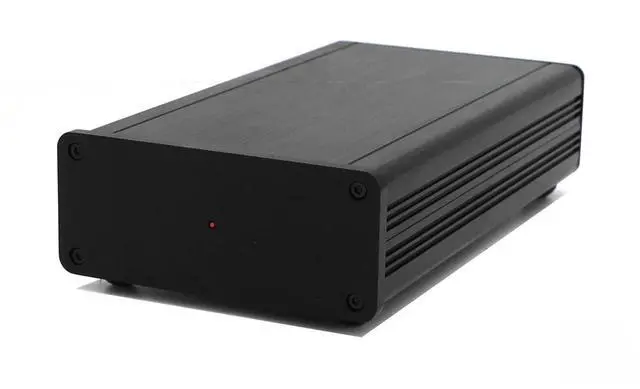

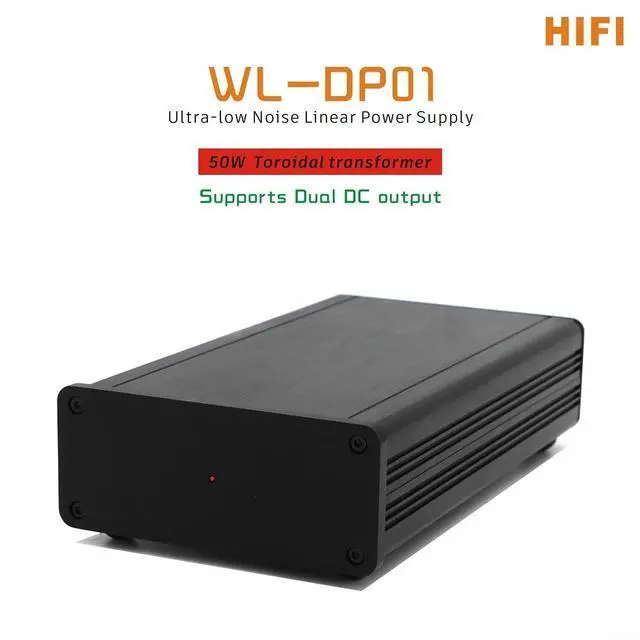

The WL-DP01 is a 50VA ultra-low noise linear power supply designed to provide a significant upgrade for a wide variety of audio and digital equipment.

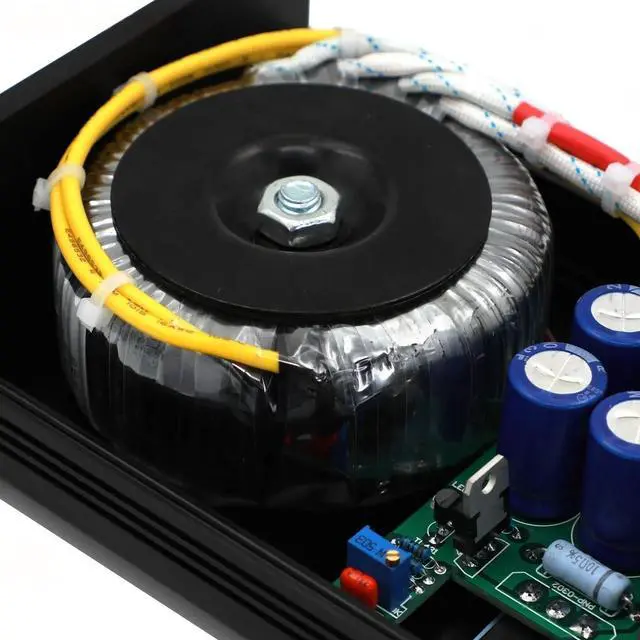

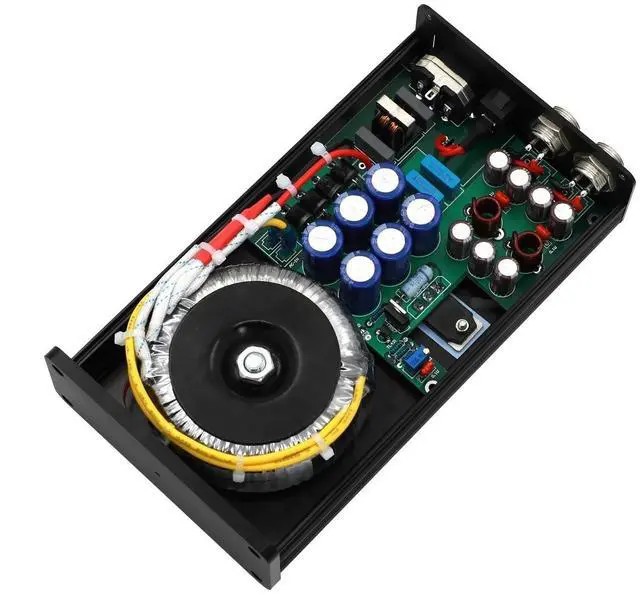

Introduction: This PSU delivers excellent performance through its ultra-low noise TL431+ high-power transistor discrete voltage regulator circuit and a high-speed low-resistance array capacitor layout. It features an advanced 3-Level filtering system (first-level EMI, second-level capacitor array, third-level CLC) to reduce output ripple to the lower limit of the instrument test.
Applications: This linear power supply is used to upgrade various audio equipment, digital equipment, NAS hard disk boxes, mobile hard disk boxes, various CAS, wireless routers, optical fiber modules, set-top boxes, MAC mini, PC HiFi, and portable computers such as Thinkpad, HP, and Asus models.

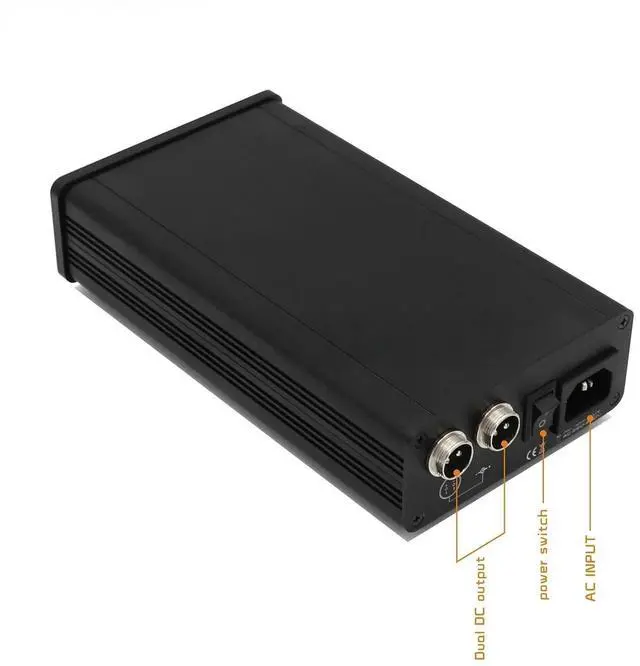

Dual Output Note: This unit has two DC outputs. Both outputs are the same voltage and share the same total output current.
Voltage/Current Options: DC 5V / 3.5ADC 9V / 3.5ADC 12V / 4ADC 15V / 3.3ADC 18V / 2.7ADC 24V / 2ASocket
Polarity: GX16-2 PIN is 1+ (Positive), 2- (Negative)
DC Plug Polarity: Internal +, External -DC
Plug Size: 5.5 * 2.5 mm (Compatible with 2.1 mm)Dimensions: 118mm*50mm*221mm (W*H*D)
Weight: About 2KGPackage
Includes: 1 x WL-DP01 50VA HIFI Ultra-low noise Linear power supply2 x 1.2M GX16-2 PIN to 5.5 * 2.5 mm DC output cable1 x AC input cable
Introduction: This PSU delivers excellent performance through its ultra-low noise TL431+ high-power transistor discrete voltage regulator circuit and a high-speed low-resistance array capacitor layout. It features an advanced 3-Level filtering system (first-level EMI, second-level capacitor array, third-level CLC) to reduce output ripple to the lower limit of the instrument test.
Applications: This linear power supply is used to upgrade various audio equipment, digital equipment, NAS hard disk boxes, mobile hard disk boxes, various CAS, wireless routers, optical fiber modules, set-top boxes, MAC mini, PC HiFi, and portable computers such as Thinkpad, HP, and Asus models.
Dual Output Note: This unit has two DC outputs. Both outputs are the same voltage and share the same total output current.
Specifications
: OutputVoltage/Current Options: DC 5V / 3.5ADC 9V / 3.5ADC 12V / 4ADC 15V / 3.3ADC 18V / 2.7ADC 24V / 2ASocket
Polarity: GX16-2 PIN is 1+ (Positive), 2- (Negative)
DC Plug Polarity: Internal +, External -DC
Plug Size: 5.5 * 2.5 mm (Compatible with 2.1 mm)Dimensions: 118mm*50mm*221mm (W*H*D)
Weight: About 2KGPackage
Includes: 1 x WL-DP01 50VA HIFI Ultra-low noise Linear power supply2 x 1.2M GX16-2 PIN to 5.5 * 2.5 mm DC output cable1 x AC input cable
