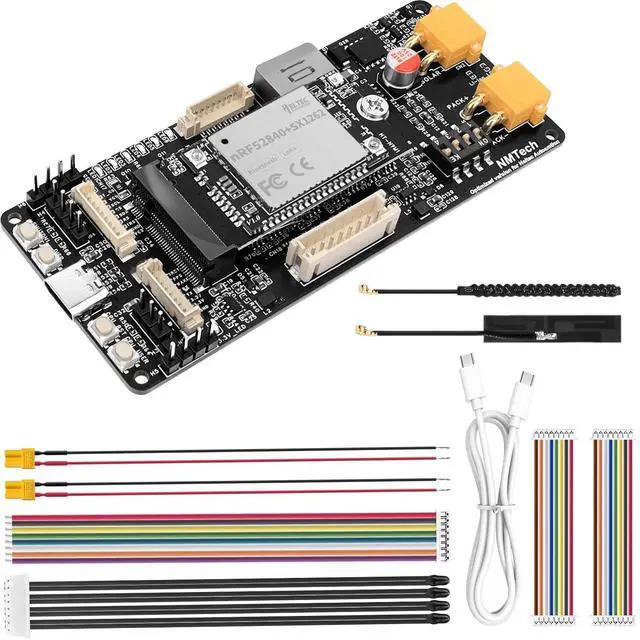

YELUFT MeshSolar Lithium Iron Phosphate BMS BLE/LoRa Connectivity Dev Board, nRF52840 MCU SX1262 LoRa Chip Supports Bluetooth & 915MHz LoRa Compatible with Meshtastic
- Battery Safety Management: MeshSolar supports 1-4 battery configurations (single-cell or battery packs). Features comprehensive protection including overcharge/over-discharge/short-circuit/over-temperature safeguards, enables balanced charging for optimal battery performance
- Charging Capabilities: Web-based charging/discharging parameter configuration and provides multiple charging modes, such as 18~25V solar MPPT charging, USBPD3.0 fast charging, 18~25V external DC charging
- Power Monitoring & Control: You can continuous power monitoring via software interface. Meanwhile, MeshSolar supports LED battery level indication and one-touch output shutdown function
- Stable Connectivity : Fully compatible with Mesh Node N5262M (nRF52480 + SX1262), supports dual-mode wireless communication, supports 915MHz LoRa (up to 10 kilometers at 211dBm) and Bluetooth 5, Bluetooth mesh, BLE
- Rich Expansion: MeshSolar is seamlessly integrated with the Meshtastic ecosystem, supporting M.2 MCU applic
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

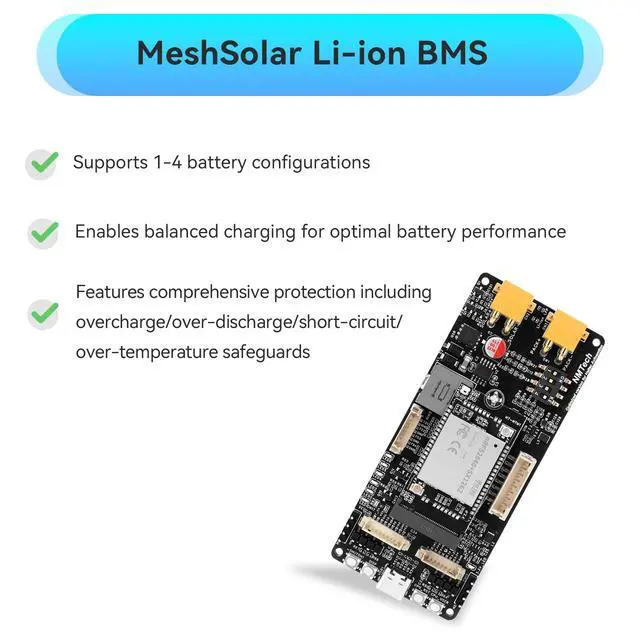

Battery Safety Management: MeshSolar supports 1-4 battery configurations (single-cell or battery packs). Features comprehensive protection including overcharge/over-discharge/short-circuit/over-temperature safeguards, enables balanced charging for optimal battery performance ^^

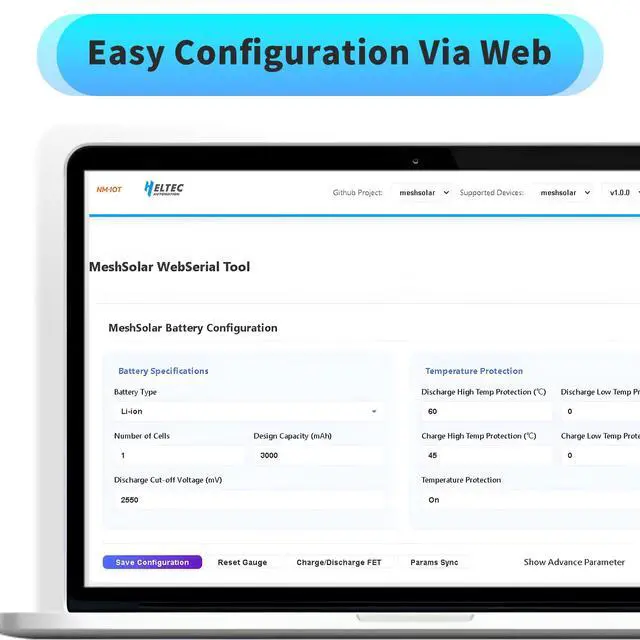

Charging Capabilities: Web-based charging/discharging parameter configuration and provides multiple charging modes, such as 18~25V solar MPPT charging, USBPD 3.0 fast charging, 18~25V external DC charging ^^
Power Monitoring & Control: You can continuous power monitoring via software interface. Meanwhile, MeshSolar supports LED battery level indication and one-touch output shutdown function ^^

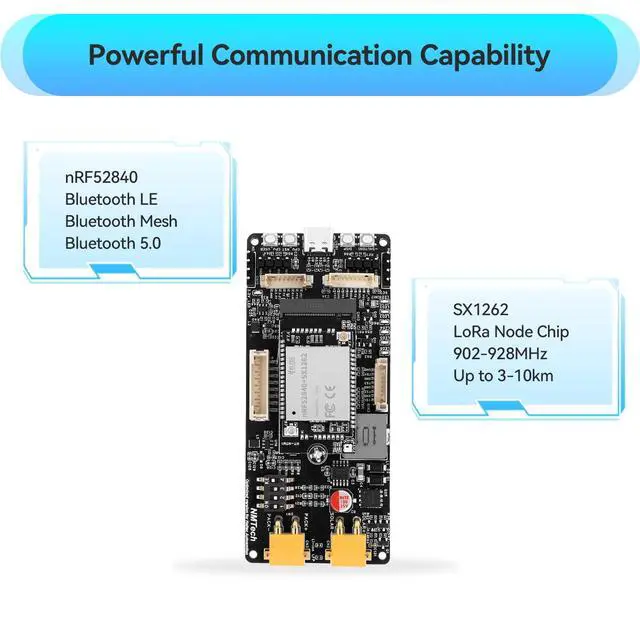

Stable Connectivity: Fully compatible with Mesh Node N5262M (nRF52480 + SX1262), supports dual-mode wireless communication, supports 915MHz LoRa (up to 10 kilometers at 211dBm) and Bluetooth 5, Bluetooth mesh, BLE ^^

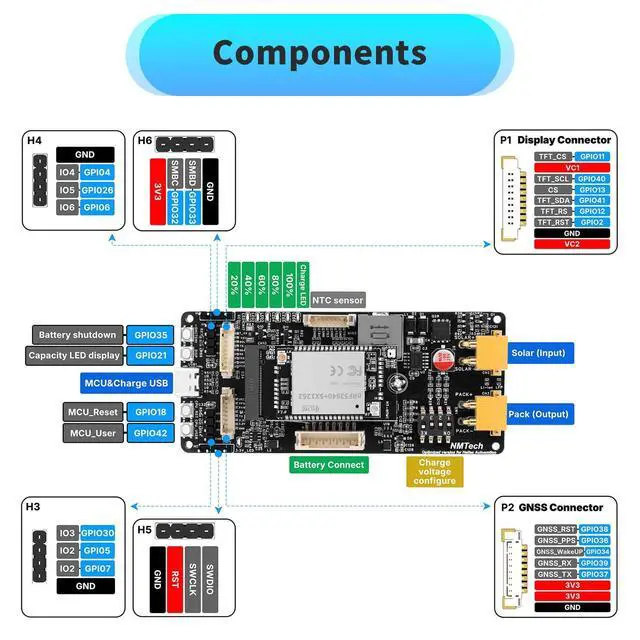

Rich Expansion: MeshSolar is seamlessly integrated with the Meshtastic ecosystem, supporting M. 2 MCU application motherboard interface, onboard display, GPS and general I/O expansion interface
Charging Capabilities: Web-based charging/discharging parameter configuration and provides multiple charging modes, such as 18~25V solar MPPT charging, USBPD 3.0 fast charging, 18~25V external DC charging ^^
Power Monitoring & Control: You can continuous power monitoring via software interface. Meanwhile, MeshSolar supports LED battery level indication and one-touch output shutdown function ^^
Stable Connectivity: Fully compatible with Mesh Node N5262M (nRF52480 + SX1262), supports dual-mode wireless communication, supports 915MHz LoRa (up to 10 kilometers at 211dBm) and Bluetooth 5, Bluetooth mesh, BLE ^^
Rich Expansion: MeshSolar is seamlessly integrated with the Meshtastic ecosystem, supporting M. 2 MCU application motherboard interface, onboard display, GPS and general I/O expansion interface
