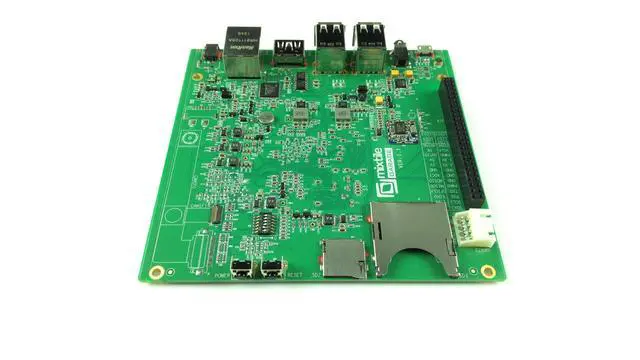

Liamo Mixtile Open Source Hardware - Accessories Included
- HIGH Processing Power prototype board with Cortex-A9 [email protected] with Mali-400 Quad Core@440MHz
- 1GB DDR3 RAM 800M Data Rate
- HDMI (Support NTSC/PAL), LCD RGB 24bit

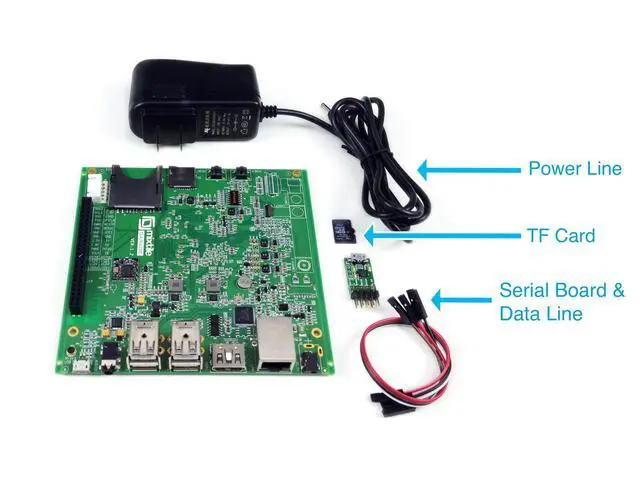

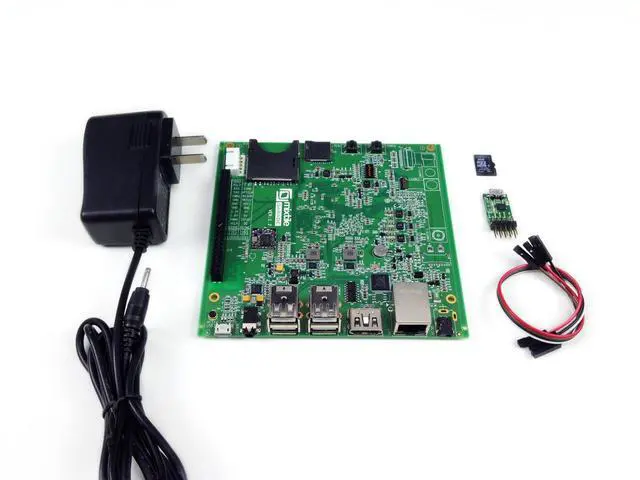

- TF card, Serial board, Power line included
- Android, Ubuntu System included
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

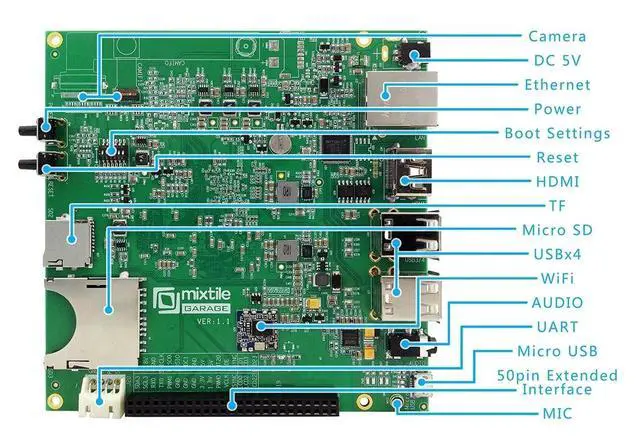

Processor: Samsung Exynos 4412 Cortex-A9 Quad Core@ 1.4GH z with
Mali-400 Quad Core@440MHzRAM: 1GB DDR3 800M
Data RateVideo: HDMI (Support NTSC/PAL), LCD RGB 24bitVideo
Codecs: MPEG4/H. 263/H. 264 1080P@30fps encode/decode, MPEG2/VC1/Xvid
1080P@30fps decodeAudio: 3.5 mm Headphone Jack, On-board MIC
Ethernet: 10/100Mbps RJ-45, Support Auto-MDIX
Wi-Fi: 802.11
b/g/nUSB: USB 2.0 Host 4, Micro-USB
Debug: 1.8V
UARTGPIO: 50-pin IO port, include UART 2, SPI, I2C, PWM 2, ADC, LCD RGB 24bit, 1.8V / 3.3V /5V
DCConnector: ITU Camera Connector, TF Card Slot, SD
Card SlotSensor:
AccelerationOS: U-Boot 2010.12, Kernel 3.0. 15, Android 4.0 (ICS)
Size: 120
120 mmPower in: 5VFor more details and downloads, please
visit http: //mixtile. com/hardware
Mali-400 Quad Core@440MHzRAM: 1GB DDR3 800M
Data RateVideo: HDMI (Support NTSC/PAL), LCD RGB 24bitVideo
Codecs: MPEG4/H. 263/H. 264 1080P@30fps encode/decode, MPEG2/VC1/Xvid
1080P@30fps decodeAudio: 3.5 mm Headphone Jack, On-board MIC
Ethernet: 10/100Mbps RJ-45, Support Auto-MDIX
Wi-Fi: 802.11
b/g/nUSB: USB 2.0 Host 4, Micro-USB
Debug: 1.8V
UARTGPIO: 50-pin IO port, include UART 2, SPI, I2C, PWM 2, ADC, LCD RGB 24bit, 1.8V / 3.3V /5V
DCConnector: ITU Camera Connector, TF Card Slot, SD
Card SlotSensor:
AccelerationOS: U-Boot 2010.12, Kernel 3.0. 15, Android 4.0 (ICS)
Size: 120
120 mmPower in: 5VFor more details and downloads, please
visit http: //mixtile. com/hardware
