4X4 HDMI

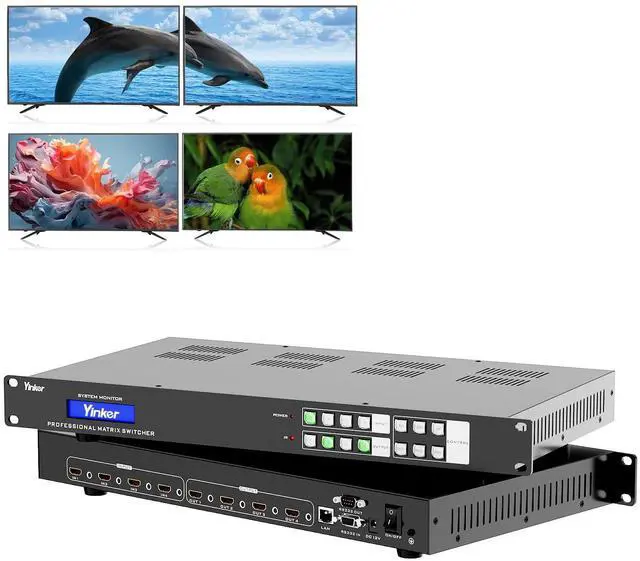

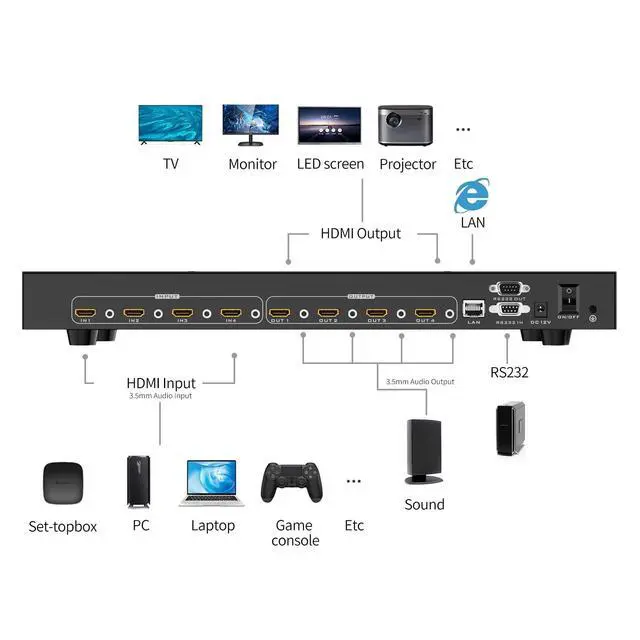

Matrix Switch: This Yinker 4K HDMI Matrix allows connecting 4 HDMI Input Sources and distributing them into 4 HDMI Output Displays seamlessly. It can used as a switcher or a splitter without plugging in and out the cables. ^^ 2X2 HDMI

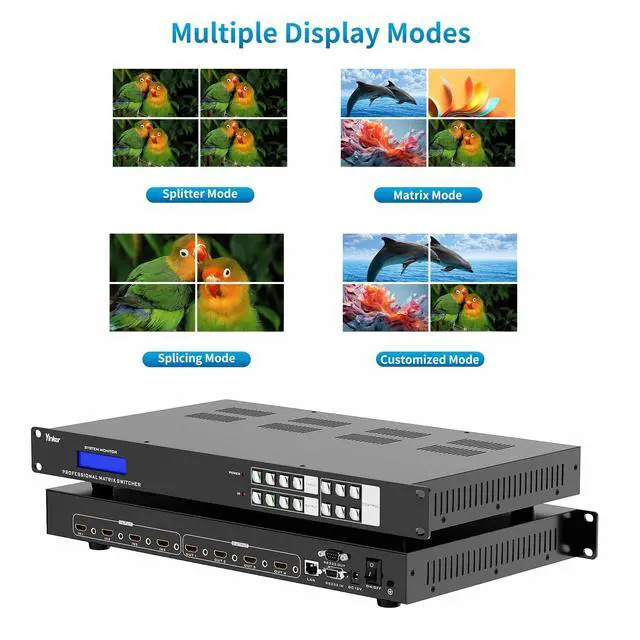

Video Wall Controller: This Video Wall Processor supports multiple splicing modes(1x1, 1x2, 2x1, 2x2, 1x3, 3x1, 1x4, 4x1). Customerized splicing modes with couples of screen splicing and couple of screen splittering.

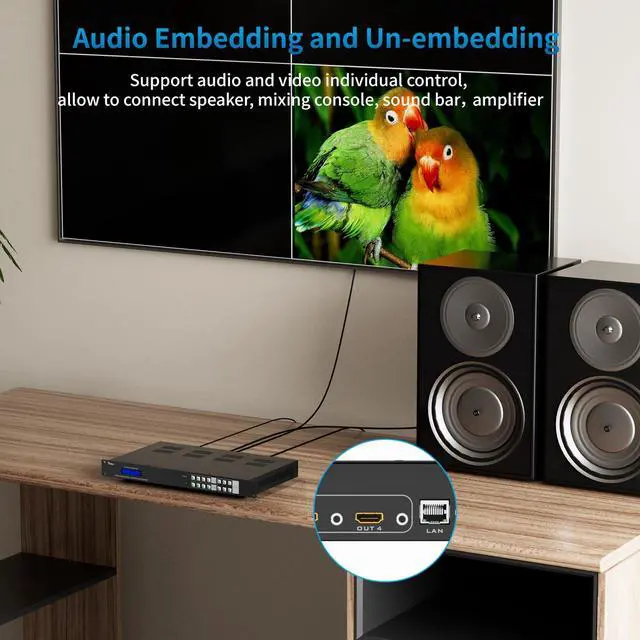

^^ Individual Audio Control: Built-in audio input embedder and audio output extractor, providing professional audio management, guarantee smoothy audio transmission without any loss.
^^ Real 4K60Hz Image: Supports video resolution up to 4K*2K@60Hz 4:4: 4 and downscaler, color
space: RGB, YCbCr
4:4: 4/
4:2: 2. Supports HDMI 2.0 and HDCP 2.2, and backward compatible, EDID management.

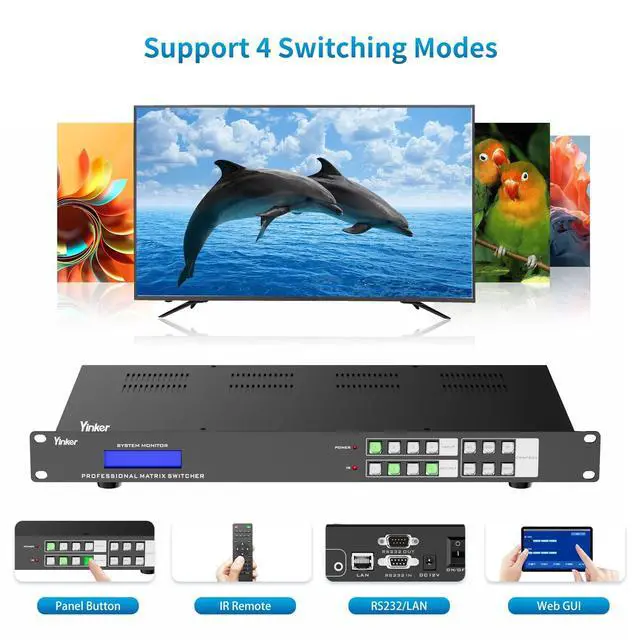

^^ 4 Switching Methods: Allows switching by 1) Panel Button, 2) IR remote, 3) RS232/LAN, 4) Web GUI. Even support Android APP Control. The Backlit Button is vision-friendly and easy to operate. The LCD Info Screen allows to check out matrix status and information.
^^ Package includes: 4x4 HDMI Matrix x1, IR Remote x1, Power Adapter and Cord x1, Ground Wire x1, RS-232 Cable x1, QR code for user manual and software. (AAA batteries is not included) Please contact Yinker Official for download of user manual and software.
