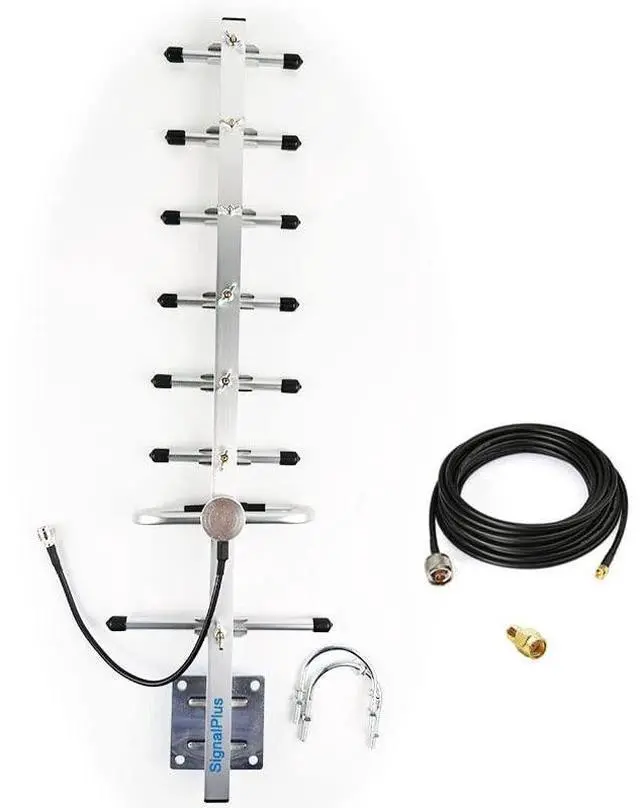

SIGNALPLUS Outdoor Yagi 915mhz lora Antenna 10 dbi Helium Antenna for Lora Miner Bobcat RAK Nebra Sensecap+Low Loss Cable RG58 16.5ft
- Its frequency is 824-960mhz,include the 915MHz.
- If it is used outdoors, we recommend that you install it in an open place, if it is used indoors, we recommend placing this inside near a window.
- Antenna length is 0.7 meters, 8 elements, weight is 0.8kg, aluminum alloy material, corrosion and oxidation resistance, increase service life
- Gain10dbi
- the connector of cable is RP-SMA ,the package is include an SMA adapter.
- Package List: 1 x lora helium antenna+1x16.5ft RG58 RP-SMA cable+1x SMA adapter
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification
Range: 915MHz
(824-960mhz )Gain:
10dBiPolarization: VerticalVertical
Half-power Beam width: 54Horizontal
Half-power Beam width: 48Front to
Back Ratio:
14VSWR: 1.5I nput
Impedance: 50Maximum
input power: 100WLightning
protection: DC
GroundInput connector type: N
FemaleDimensions: 0.7
metersAntenna weight: 0.8
kgRG58 cable: 30ftRadome
material: Aluminium
Alloy ElementsOperating temperature: -40~60Rated
Wind Velocit: 60m/sMounting

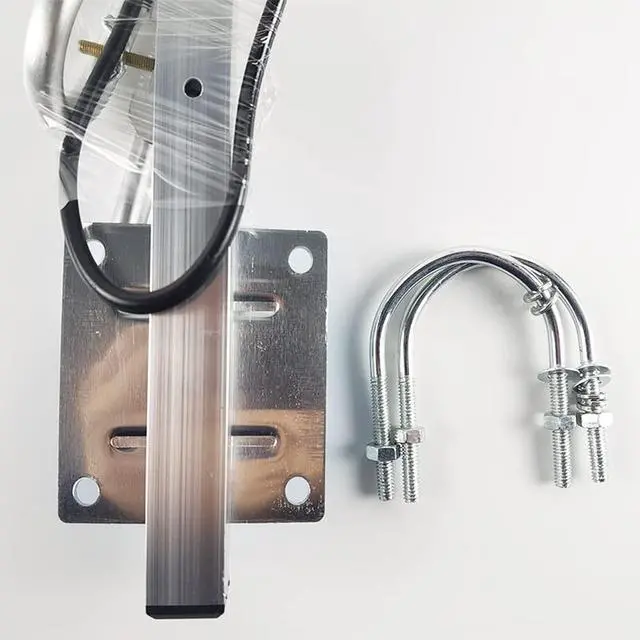

way: Pole-holdingMounting
hardware: 35mm~50mm
Details
: FrequencyRange: 915MHz
(824-960mhz )Gain:
10dBiPolarization: VerticalVertical
Half-power Beam width: 54Horizontal
Half-power Beam width: 48Front to
Back Ratio:
14VSWR: 1.5I nput
Impedance: 50Maximum
input power: 100WLightning
protection: DC
GroundInput connector type: N
FemaleDimensions: 0.7
metersAntenna weight: 0.8
kgRG58 cable: 30ftRadome
material: Aluminium
Alloy ElementsOperating temperature: -40~60Rated
Wind Velocit: 60m/sMounting
way: Pole-holdingMounting
hardware: 35mm~50mm
