RTL-SDR Blog V3 R860 RTL2832U 1PPM TCXO HF Bias Tee SMA Software Defined Radio with Dipole Antenna Kit

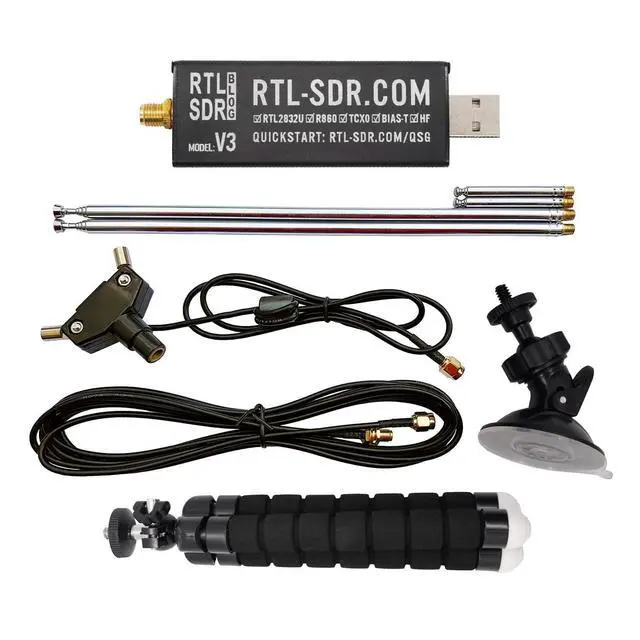

- Includes 1x RTL-SDR Blog V3 R860 RTL2832U 1PPM TCXO HF Bias Tee SMA Dongle and 1x Multipurpose Dipole Antenna Kit

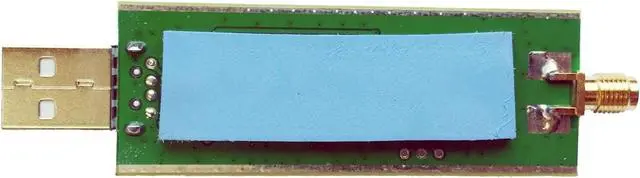

- Several improvements over other brands including use of the R860 tuner, improved component tolerances, a 1 PPM temperature compensated oscillator (TCXO), SMA F connector, aluminum shielded case with thermal pad for passive cooling, activatable bias tee circuit and a much improved antenna set.
- Can tune from 500 kHz to 1.7 GHz and has up to 3.2 MHz of instantaneous bandwidth (2.4 MHz stable). (HF reception below 24 MHz in direct sampling mode with reduced performance). Please note RTL-SDR dongles are RX only.

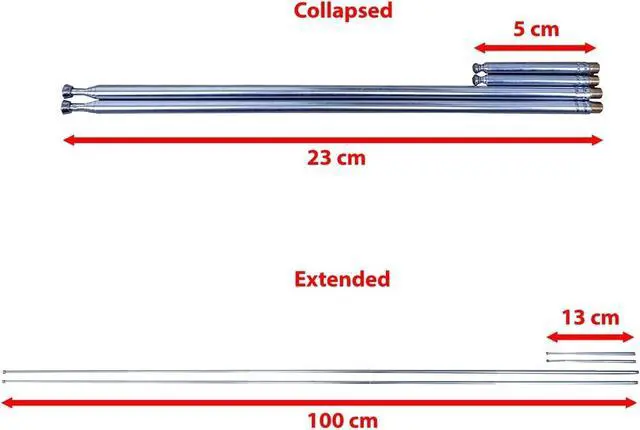

- Comes with our portable VHF/UHF dipole antenna kit. Great for beginners as it allows for terrestrial and satellite reception. Easy to mount outdoors and designed for portable and temporary outside usage. Please do not use outside during poor weather conditions. Not suitable for HF reception.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

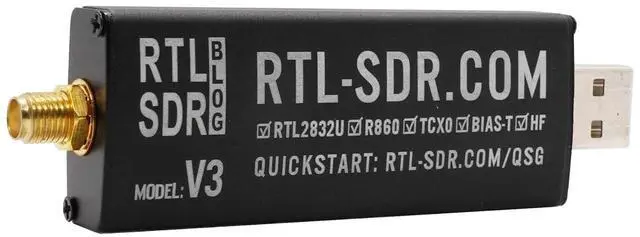

This is an RTL-SDR blog V3 software defined radio receiver with RTL2832U ADC chip, R860 tuner, 1PPM TCXO, SMA F connector and aluminium case with passive cooling. Tunes from 500 kHz to 1.766 GHz with up to 3.2 MHz ( 2.4 MHz stable) of bandwidth. (HF works in direct sampling mode with reduced performance). Can be used with free software like SDR#, HDSDR, SDR-Radio, GQRX or SDR Touch on Android. Works on Windows, OSX, Linux, Android and computers like the Raspberry Pi. This model has several improvements over other brands.

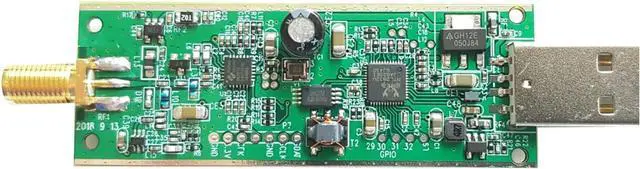

It uses the R860 tuner, a 1PPM TCXO, better components, a redesigned lower noise PCB, cooling improvements, extra ESD protection and an SMA F connector. It also has a software activatable bias-tee for powering LNA's and active antennas. This is a bundle which includes the main dongle and also our multipurpose dipole antenna kit. The antenna kit is great for beginners as it allows for terrestrial and satellite reception. Easy to mount outdoors and designed for portable and temporary outside usage. Please do not use outside during poor weather conditions.
For enabling HF reception below 24 MHz please see the V3 features guide and please feel free to contact us via messaging for technical support - we're happy to help.
It uses the R860 tuner, a 1PPM TCXO, better components, a redesigned lower noise PCB, cooling improvements, extra ESD protection and an SMA F connector. It also has a software activatable bias-tee for powering LNA's and active antennas. This is a bundle which includes the main dongle and also our multipurpose dipole antenna kit. The antenna kit is great for beginners as it allows for terrestrial and satellite reception. Easy to mount outdoors and designed for portable and temporary outside usage. Please do not use outside during poor weather conditions.
For enabling HF reception below 24 MHz please see the V3 features guide and please feel free to contact us via messaging for technical support - we're happy to help.
