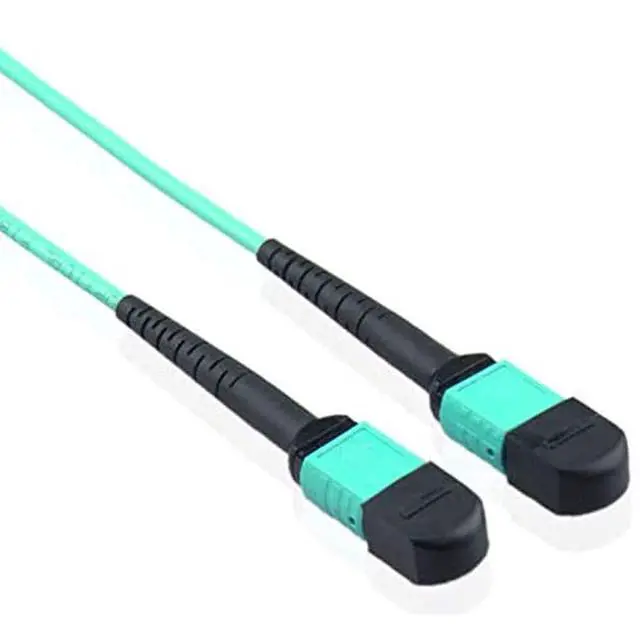

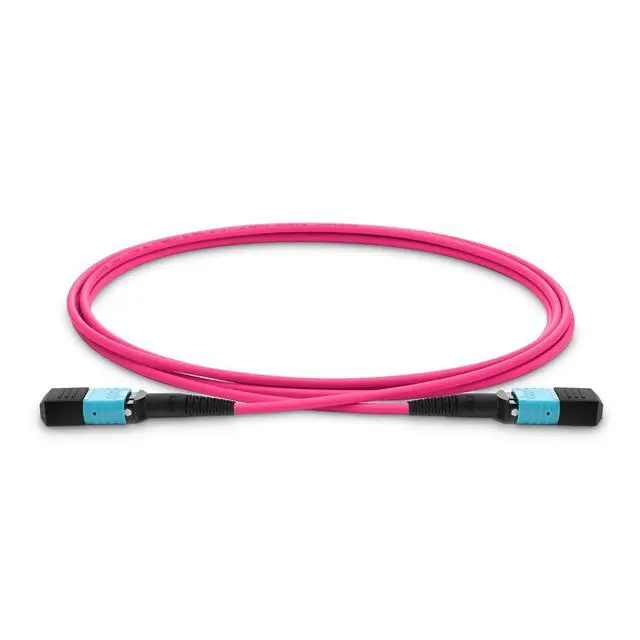

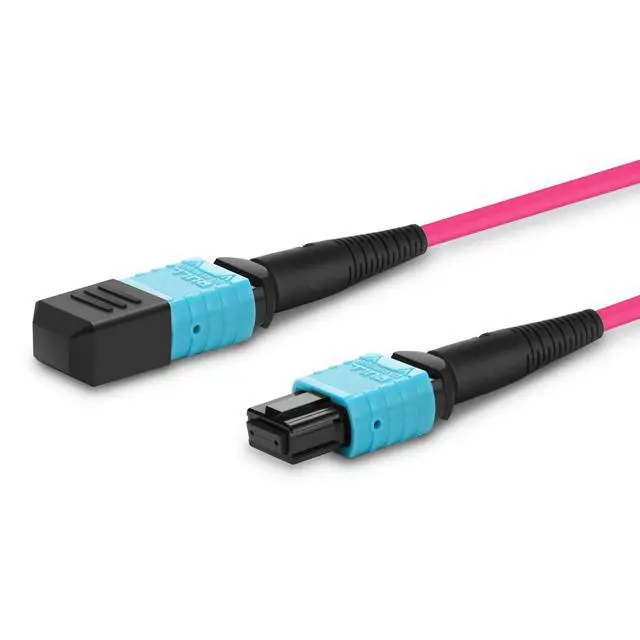

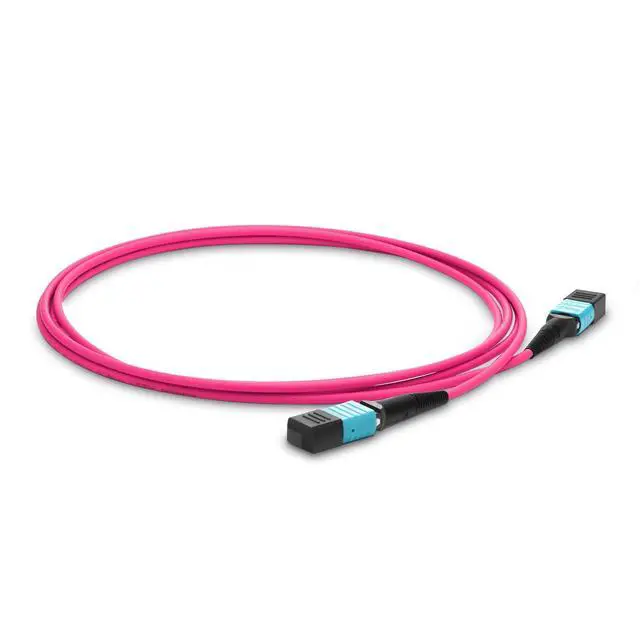

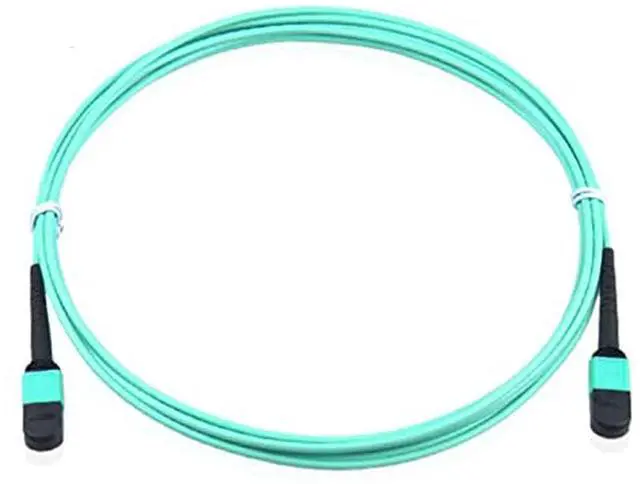

6COM MPO to MPO Fiber Patch Cable,12 Fibers Female, 40G/100G/200G/400G, OM4 50/125 Multimode Standard Loss Trunk Cable, Type B, Plenum (LSZH) with Random Color(Violet/Aqua) - 1m (3ft)
- High Speed and High Density, MPO to MPO Patch Cable, (MPO FEMALE Connector without PIN). Standard insertion loss and back reflection loss process, connections for 10G/40G/100G.
- TYPE B & IEEE802BM, MMF(50/125um), OM4 fibers, LSZH sheet, 12 fibers cable, constructed with TYPE B (Channel 1 to Channel 12).
- Carrier Grade Performance and LSZH (Plenum) Fire Rating. Jacketed with compounds that emit limited smoke and no halogen when exposed to high heat sources(Low-smoke-zero-halogen Rated).
- All of products are manufactured under strict quality control system, every fiber has been tested one by one before shipping, to ensure the fibers can work well.
- 30 days Free-Returned, 3 years Free Warranty and lifetime technology support, please contact us, any product quality and compatibility issues.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
MTP Female to MTP Female OM4 Multimode Trunk CableMPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With MPO connectors, it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
Product Specification: Connector
A: MPO Female (Pinless)
Connector B: MPO Female (Pinless)
Fiber Mode: OM4
50/125mWavelength: 850/1300nm40/100G
Ethernet Distance: 150m at 850nm10G
Ethernet Distance: 400m at 850nmMinimum
Bend Radius: 7.5 mmInsertion
Loss: 0.75 dB Max ( 0.35 dB Typ.
)Return Loss: 20dBAttenuation
at 850nm: 2.3
dB/kmAttenuation at 1300nm: 0.6 dB/kmJacket
OD: 3.0 mmCable
Jacket: Plenum (LSZH)
Operating Temperature: -10C to +70C
Product Specification: Connector
A: MPO Female (Pinless)
Connector B: MPO Female (Pinless)
Fiber Mode: OM4
50/125mWavelength: 850/1300nm40/100G
Ethernet Distance: 150m at 850nm10G
Ethernet Distance: 400m at 850nmMinimum
Bend Radius: 7.5 mmInsertion
Loss: 0.75 dB Max ( 0.35 dB Typ.
)Return Loss: 20dBAttenuation
at 850nm: 2.3
dB/kmAttenuation at 1300nm: 0.6 dB/kmJacket
OD: 3.0 mmCable
Jacket: Plenum (LSZH)
Operating Temperature: -10C to +70C
