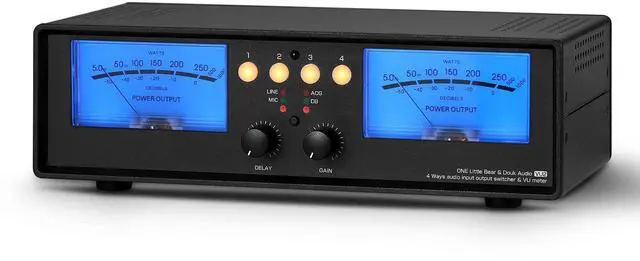

Douk Audio VU2 MIC & Line Dual VU Meter, Analog Sound Level Indicator, 4-Way Splitter Switch, Audio Switcher Box for Speaker/Amplifier/Preamp (Blue Version)

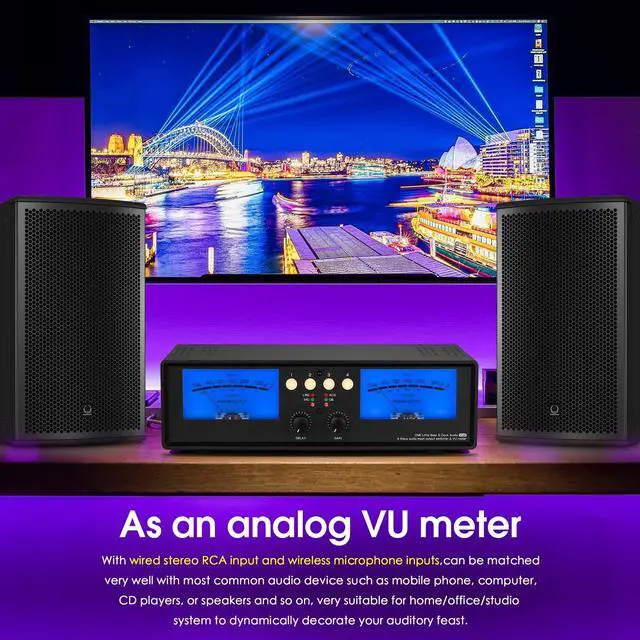

- As an analog VU meter, with wired stereo RCA input and wireless microphone inputs, can be matched very well with most common audio device such as mobile phone, computer, CD players, or speakers and so on, very suitable for home/office/studio system to dynamically decorate your auditory feast.
- As a 4-way audio splitter box, VU2 can work in 4-IN-1-OUT to compare the sound quality of differet audio source among mobile phone, tablet computer, TV, CD player, DAC etc., also can work in 1-IN-4-OUT mode to do contrasts among preamp, headphone, power amplifier and active speakers etc.
- No need to plug in and out cables repeatedly to avoid wearing the contact point of the sockets. 4 channel can input at the same time to mixer different audio source, also can output at the same time to satisfy the requirements of monitoring or recording.
- The USB interface of VU2 is only for providing power for the drive board of the VU meter, without any interference to the audio input and output circuit.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Notice1. 4 channel can work (input or output) at the same time, but this function only can be set by pressing the four channel buttons on the front panel, cannot be controlled by remote control. 2. When in 4-IN-1-OUT mode, 4 channels of VU2 are not recommended to work in parallel, there will be some distortion if the output level of 4 players are different. 3. Not recommend to power VU2 from the USB interface of audio source device, noise will be generated in this condition.
ParametersAudio input: stereo RCA /
MicrophoneAudio output: 4 groups of stereo RCA
Working mode of switcher: 1-IN-4-OUT / 4-IN-1-OUT

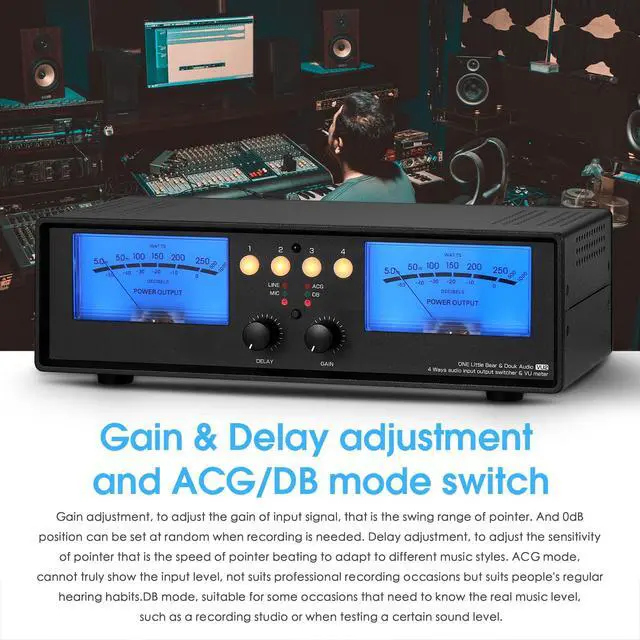

Sensitivity adjustment: supportGain
adjustment: support (DB mode /
ACG mode)Working voltage: Micro
USB DC 5VWorking current: 1.5AV
oltage of backlight filament: DC /
AC 6-12VCurrent of backlight filament: 100mADynamic acceleration / deceleration damping modes: supportPower
on/off function: supportSettings
saved after shutdown: supportMute

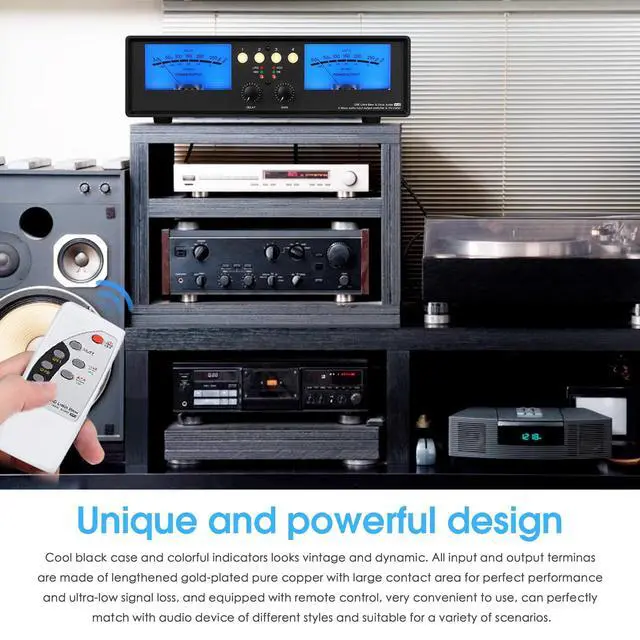

function: supportRemote
control: supportDimensions
(W*D*H): 280*122*80mm / 11.02 * 4.08 * 3.15 inNet weight: 1.10 kg / 2.43 lbPackage weight: 1.43 kg / 3.15 lbPacking List1*VU2 Meter1*Remote Control (without batteries) 1*USB Cable1*Manual
ParametersAudio input: stereo RCA /
MicrophoneAudio output: 4 groups of stereo RCA
Working mode of switcher: 1-IN-4-OUT / 4-IN-1-OUT
Sensitivity adjustment: supportGain
adjustment: support (DB mode /
ACG mode)Working voltage: Micro
USB DC 5VWorking current: 1.5AV
oltage of backlight filament: DC /
AC 6-12VCurrent of backlight filament: 100mADynamic acceleration / deceleration damping modes: supportPower
on/off function: supportSettings
saved after shutdown: supportMute
function: supportRemote
control: supportDimensions
(W*D*H): 280*122*80mm / 11.02 * 4.08 * 3.15 inNet weight: 1.10 kg / 2.43 lbPackage weight: 1.43 kg / 3.15 lbPacking List1*VU2 Meter1*Remote Control (without batteries) 1*USB Cable1*Manual
