Transwan USB 2.0/1.0 over Fiber Extender to Max 5 Kilometers over 1 Singlemode, Compatiable with USB 1.1, with SFP Module, Plug and play

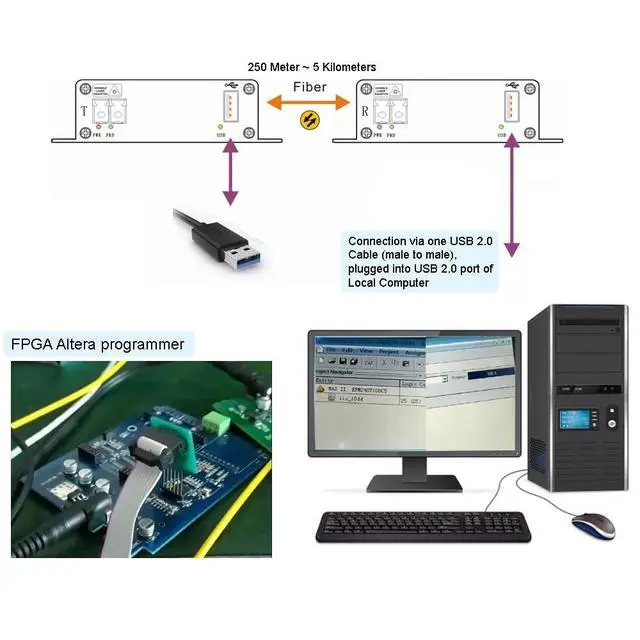

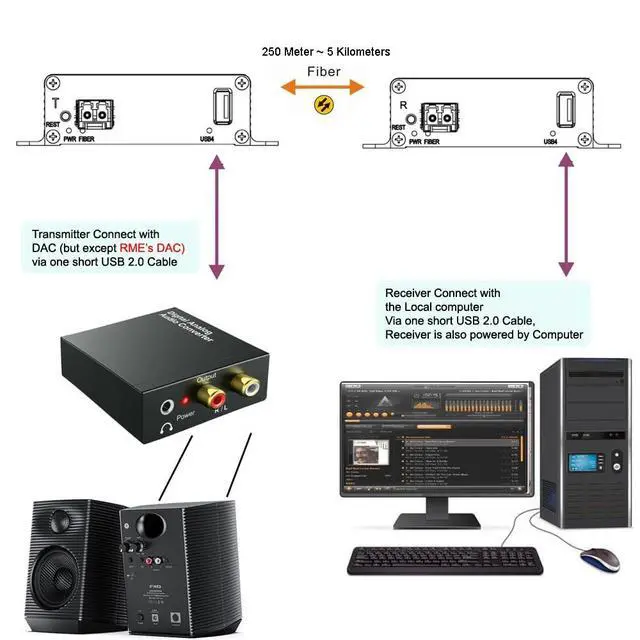

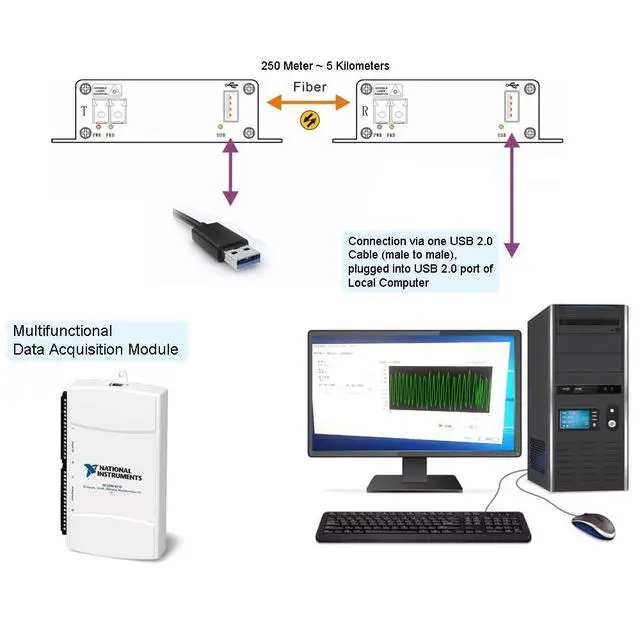

- Support USB1.1 and USB 2.0 devices, Such as Cameras, Printers, Scanners, Audio devices, USB touch screens, Game Controllers, Mouse and Keyboard Dongle, FTDI RS232 Converter, FPGA Programmer, USB video capture device, Orientalmotor Controller, USB Wireless Dongle, USB headset, USB to RS232 Adapter,Arbitrary Waveform Generator 33250A & 82357B, Oscilloscope Kit, Data Acquisition Device (DAQ),Audio DAC(but Except RME's), Akai APC devices etc.
- USB 2.0 port to Max 5 Kilometers 1 Core Singlemode Fiber; Backwards compatible with USB 1.1
- 1 fiber bi-directional transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
- Auto recognition of High-speed (25Mbps480Mbps)Full-speed (500Kbps12Mbps)Low-speed (10Kbps1.5Mbps) USB devices.
- Power-up sequence: Because of USB status (Suspend and Resume), Both the the computer and the USB device it's being connected to should be shut down completely BEFORE making all the connections. The USB de
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

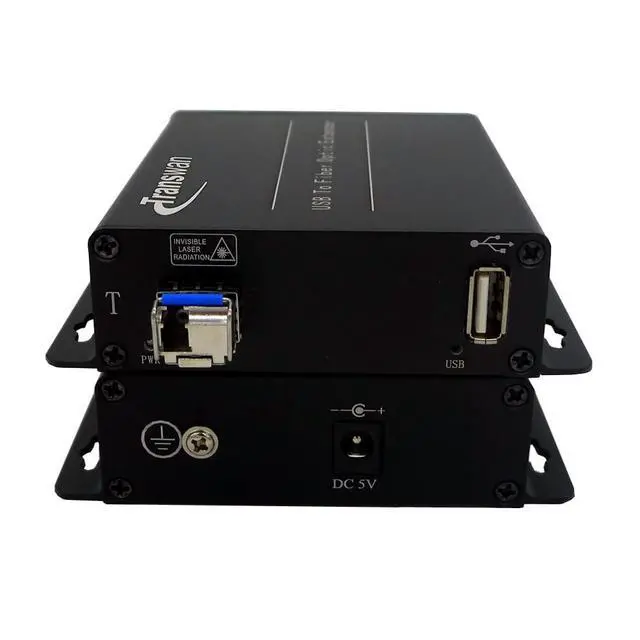

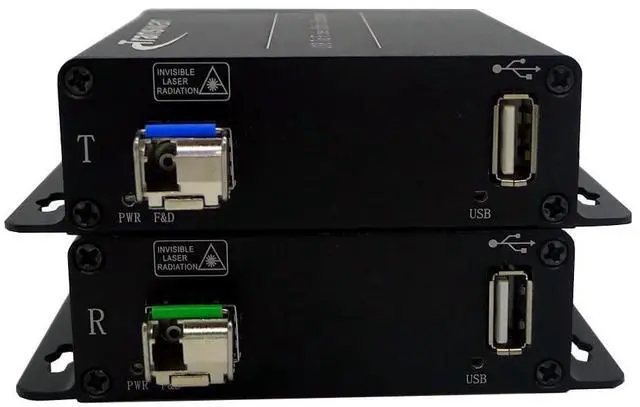

BY-USB-395SF-FBA includes a transmitter and a receiver, which can extend USB 2.0 device to a remote location over 1 Core fiber cable, Max 5 Kilometers Singlemode Fiber. It can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etcOptical
Connector: 1x
LC/PCWave length: 1310/1550 nmSupport
Fiber types: 9/125m(Single-mode Fiber)Physical Size (L
W H): 104mm
x104mm x28mmCase:
AluminumColor: BlackN. W.: 0.75K gPower
Voltage: 5~12V
DCTransmitter power consumption: <10WReceiver
power consumption: < 3.5WE nvironment
Working temperature: -20-70Storage
temperature:
-40-85Humidity: 0-95% (non-condensing)USB interface (Type
A):
Receiver: 1 port, connect to
PCTransmitter: 1 port, connect to
USB 2.0 devicePackage: 1. 1 x transmitter (client side). 2. 1 x receiver (host side). 3. 1 x Power supply adapters DC 5~12V with US plug for the transmitter. 4. 1 x USB 2.0 cable, the receiver powered by the local PC via USB cable. 5. 1 x Manual.
Power-up sequence: Because of USB status (Suspend and Resume), Both the the computer and the USB device it's being connected to should be shut down completely BEFORE making all the connections. The USB devices and the transmitter module it's connected to must both be powered up and running BEFORE the computer is booted up. Otherwise, the USB device's driver in the computer will not be loaded, and the devices will not connect. In case the USB device's driver shows can not Identify the Device or shows "Unknown Device", please unplug and plug the receiver module.
Connector: 1x
LC/PCWave length: 1310/1550 nmSupport
Fiber types: 9/125m(Single-mode Fiber)Physical Size (L
W H): 104mm
x104mm x28mmCase:
AluminumColor: BlackN. W.: 0.75K gPower
Voltage: 5~12V
DCTransmitter power consumption: <10WReceiver
power consumption: < 3.5WE nvironment
Working temperature: -20-70Storage
temperature:
-40-85Humidity: 0-95% (non-condensing)USB interface (Type
A):
Receiver: 1 port, connect to
PCTransmitter: 1 port, connect to
USB 2.0 devicePackage: 1. 1 x transmitter (client side). 2. 1 x receiver (host side). 3. 1 x Power supply adapters DC 5~12V with US plug for the transmitter. 4. 1 x USB 2.0 cable, the receiver powered by the local PC via USB cable. 5. 1 x Manual.
Power-up sequence: Because of USB status (Suspend and Resume), Both the the computer and the USB device it's being connected to should be shut down completely BEFORE making all the connections. The USB devices and the transmitter module it's connected to must both be powered up and running BEFORE the computer is booted up. Otherwise, the USB device's driver in the computer will not be loaded, and the devices will not connect. In case the USB device's driver shows can not Identify the Device or shows "Unknown Device", please unplug and plug the receiver module.
