PCIex4 10G RJ45 Ethernet Network Adapter, Single-Port RJ45 NIC Network Card, 10/100/1000M/2.5G/5G/10Gbps Data Rate, Support Windows Server/Windows/Linux/Ubuntu, Green

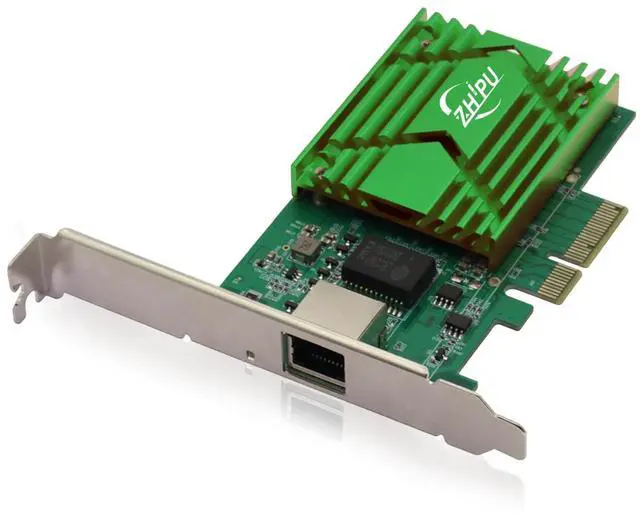

OverviewLNK-NIC-10GE is a PCI Express x4 single port 10 Gigabit Ethernet network adapter based on the xxx chip solution. It is also compatible with PCle x8 and x16 channels. A high-performance, five rate NIC adapter that integrates PCle, MAC, and PHY to provide power and space-efficient connectivity to client systems. The PCle x4 universal interface gives this product great flexibility. The integrated PHY can be routed through Cat 6a at speeds up to 10Gbps over a distance of 100 meters. It also supports 5Gbps network connections over traditional Cat 5e or Cat 6 cabling.

The LNK-NIC-10GE is IEEE 802.3 an & IEEE 802.3 bz compliant and enables 2.5GBASET, 5GBASE-T 10GBASE-T, 1000BASE-T and 100BASE-TX transmission over 100m twisted pair cabling. MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload for high performance and low CPU utilization with up to 16 KB of massive data frame support. Features1. PCIE x 4 Hardware Interface. 2.
Support systems: Windows, Linux, Ubuntu, etc3. Windows 7/8/ 8.1 /104. Windows Server 2008 R2/2012 R2/2016 R2/2019 R25. Linux Stable Kernel version 2.6. 32/3. x/4. x or later6. Linux CentOS/RHEL 6.5 / 7. x or later7. Ubuntu 14. x/15. x/16. x or later8. VMware ESX/ESXi 4. x/5. x/6. x or later9. 10/100/1000M/ 2.5G /5G/10Gbps data rate10. Jumbo frame support up to 16 KB. 11.
Extensive software support: Windows and Linux drivers; UEFI and PXE remote boot. 12. MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload. 13. Brown and Green color optionalSpecifications1.
Power Consumption: 4.7W 2.

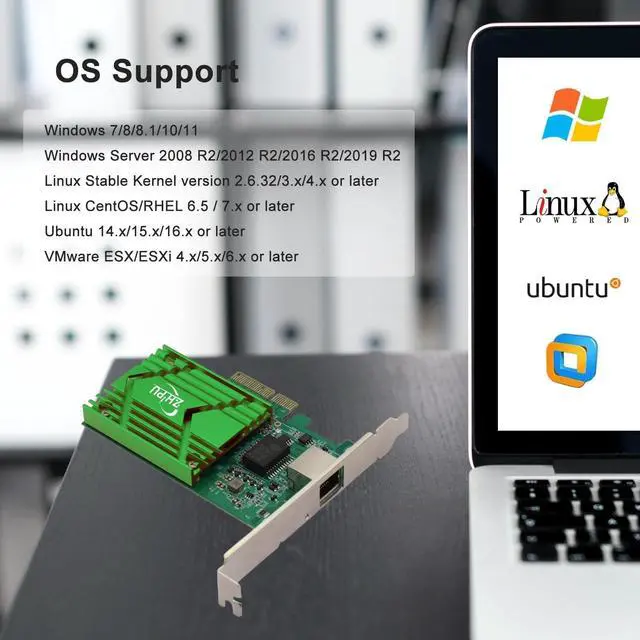

OS Support: Windows 7/8/ 8.1 /10Windows Server 2008 R2/2012 R2/2016 R2/2019 R2Linux Stable Kernel version 2.6. 32/3. x/4. x or laterLinux CentOS/RHEL 6.5 / 7. x or laterUbuntu 14. x/15. x/16. x or laterVMware ESX/ESXi 4. x/5. x/6. x or later3.

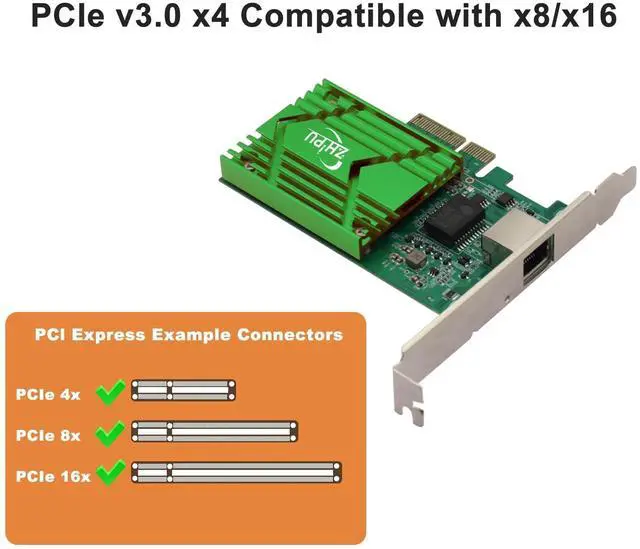

Bus Type: PCIe v 3.0 x4compatible with x8, x164.

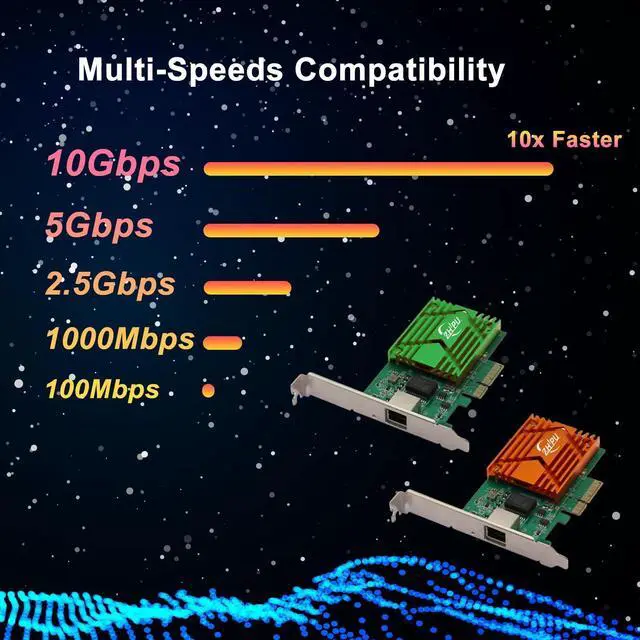

Data rate per port: 10/100/1000M/ 2.5G /5G/10Gbps data rate5.
Connector: 1*10G RJ456.
Operating Temperature: 0 to 55 (32 to 131) 7.
Storage Temperature: -40 to 70 (-40 to 158)8.
Size: 125 x 125 x 20 mm9.
Weight: 90gPackage contentsPCIE x4 Single-port RJ45 10G Ethernet Network A dapter *1
