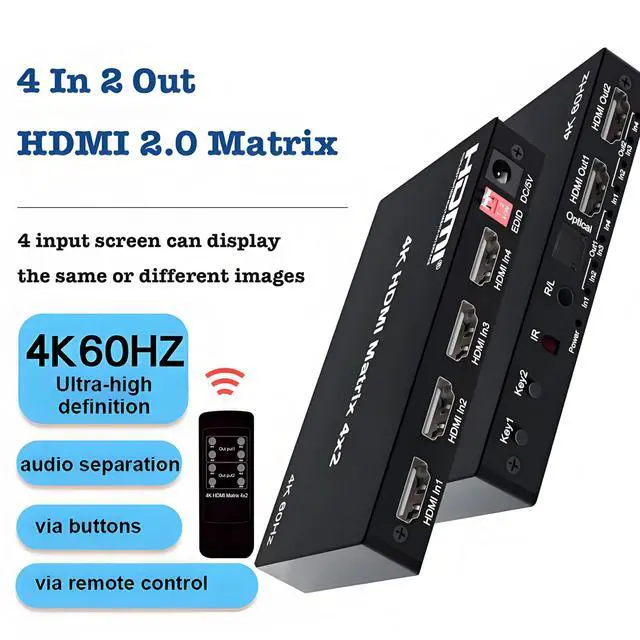

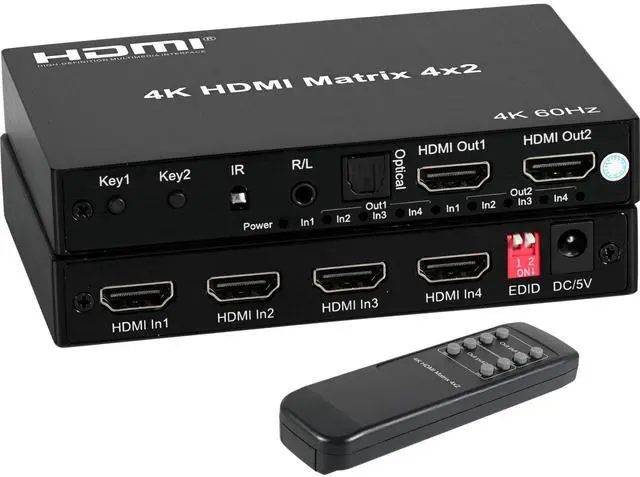

4K 4x2 HDMI Matrix Switch with 3.5mm Stereo Audio Extractor and Audio Optic Output, 4 in 2 Out Video Switcher&Splitter, Support HDMI 2.0 4K@60Hz

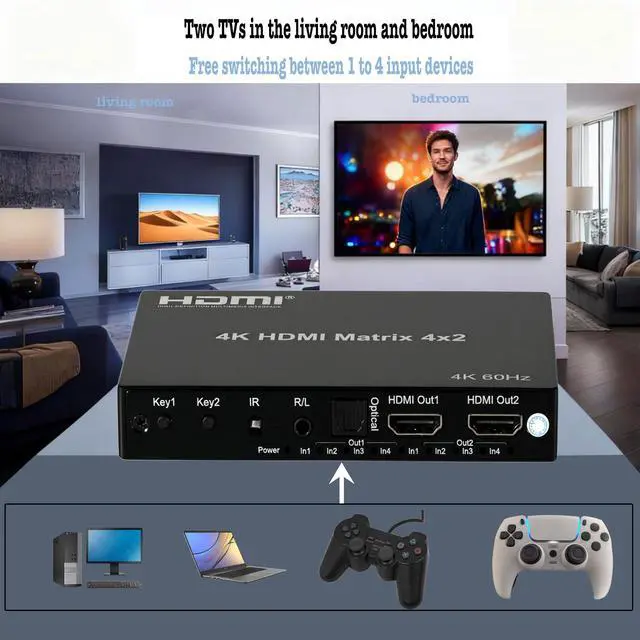

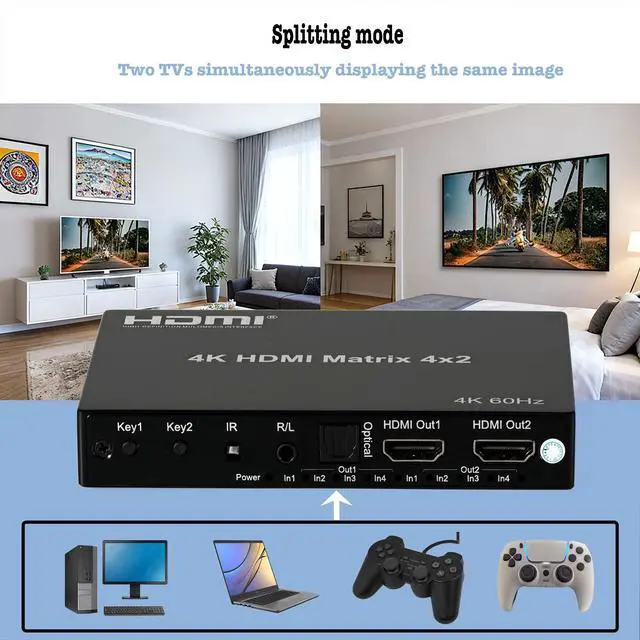

- This 2x4 HDMI Matrix Switch allows seamless switching between 2 input signal devices and distributes the selected signal to 4 monitors. You can freely choose any connected video source and send it to the desired monitor, making it perfect for home theaters, offices, schools, conference rooms, shopping malls, hotels, or museums.
- High Resolution 4K 60Hz Support: The HDMI 2.0 matrix switch enables you to connect an HDMI video source to multiple HDMI displays. It supports 4K (3840x2160) @ 60Hz Ultra HD resolutions and HDR (High Dynamic Range), delivering lifelike images with amazing contrast, brightness, color, and greater luminosity.
- Dual Control Modes: You have the option to control the matrix switch either via the IR remote control or by pushing the buttons on the device itself, giving you flexibility in any situation.
- Audio Separation: This 2 in 4 Out Video Switcher offers audio separation with stereo and optical audio output options. Any input high definition source can have
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
4K 4x2 HDMI Matrix Switch with 3.5 mm Stereo Audio Extractor and
Audio Optic OutputSPECIFICATIONS: HDMI resolution...................... up to 3840*2160/60HzSupport video format............... 8/10/12 bit deep colorSupport audio format............... LPCM/DTS/Dolby-AC3Max bandwidth....................... 600MHzMax baud rate........................ 3x6GbpsInput cable distance................ 4K/30Hz 15M AWG26 HDMI standard cable4K/60Hz 5M HDMI 2.0 standard cableOutput cable distance............... 4K/30Hz 15M AWG26 HDMI standard cable4K/60Hz 5M HDMI 2.0 standard cableMax working current................. 900mAPower adapter Input...
............. AC (50HZ, 60HZ) 100V-240V;
Output: Power adapter Output............... DC5V/ 1.5AO perating Temperature range...... (-15 to +45C)Operating Humidity range........... 5 to 90%RH (No Condensation) Dimension (L x W x H)............... 122x80x19 (mm) Weight.....................................
180gPackage Included: 1x 4K 60Hz HDMI Matrix 4x21x Power Adapter1x Remote Control (Powered by AAA batteries which is not included) 1x User Manual
Audio Optic OutputSPECIFICATIONS: HDMI resolution...................... up to 3840*2160/60HzSupport video format............... 8/10/12 bit deep colorSupport audio format............... LPCM/DTS/Dolby-AC3Max bandwidth....................... 600MHzMax baud rate........................ 3x6GbpsInput cable distance................ 4K/30Hz 15M AWG26 HDMI standard cable4K/60Hz 5M HDMI 2.0 standard cableOutput cable distance............... 4K/30Hz 15M AWG26 HDMI standard cable4K/60Hz 5M HDMI 2.0 standard cableMax working current................. 900mAPower adapter Input...
............. AC (50HZ, 60HZ) 100V-240V;
Output: Power adapter Output............... DC5V/ 1.5AO perating Temperature range...... (-15 to +45C)Operating Humidity range........... 5 to 90%RH (No Condensation) Dimension (L x W x H)............... 122x80x19 (mm) Weight.....................................
180gPackage Included: 1x 4K 60Hz HDMI Matrix 4x21x Power Adapter1x Remote Control (Powered by AAA batteries which is not included) 1x User Manual
