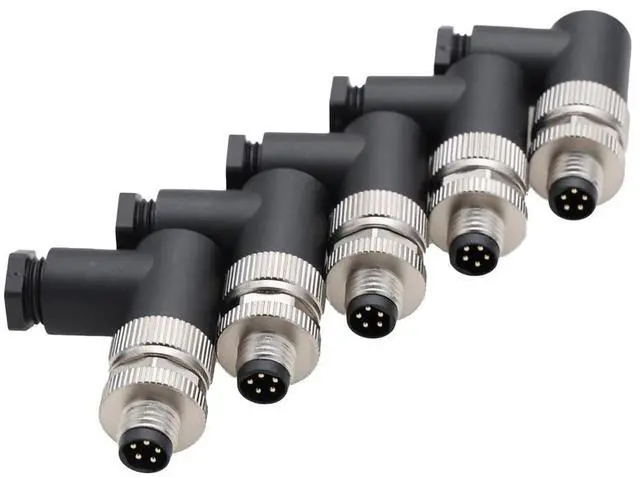

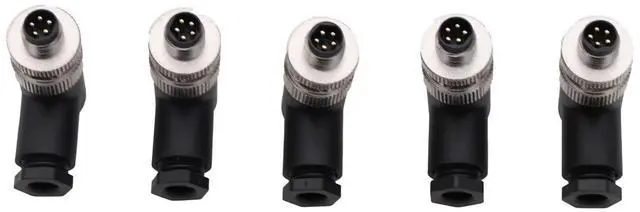

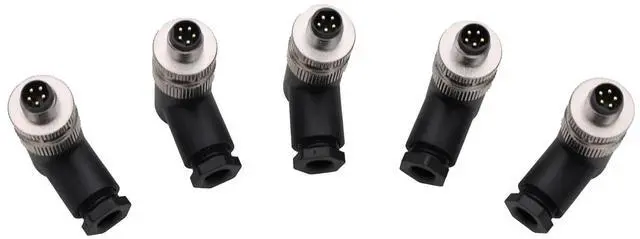

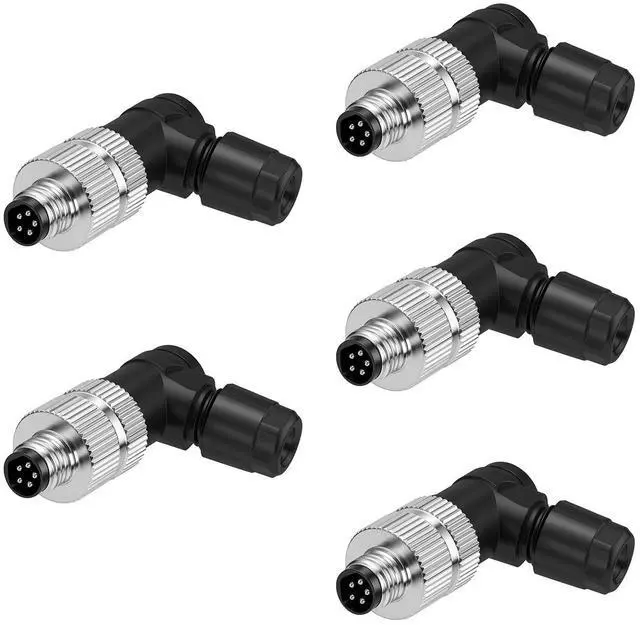

ZBLZGP M8 B-Code 5 Pin Connector Plastic Assembled Plug Straight Elbow Screw Solder Cable Male Female Waterproof IP67 Connector for Proximity Switch Sensor 5Pack
- M8 Connector Waterproof 3-pole 4-pole 5-pole 6-pole 8-pole A, B, D coding available with M8*1.0 screw locking circular connector.
- Rated Current1.5A/2A/3A/4A.Rated Voltage30V for 5/6/8 pin60V for 3/4 pin.Protection levelIP67/IP68 waterproof.Contact Resistance10m.Mechanical Operation>500 mating cycles.
- Easy quick connect and disconnect coupling;Shield and un-shield Version Available with metal or plastic housing.
- Screw/Nut MaterialBrass with nickel plated.Contact MaterialPhosphorus copper with gold plated.Temperature Range: -25C ~ + 85C.
- The M8 series offers a wide range of male and female M8 connectors for small sensors and actuators. These connectors are ideal for industrial control networks that require small sensors. The connectors are available factory molded with TPU overmolding or as panel receptacles with solder cups for wire connections or PCB panel solder contacts.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Key Features: Space-saving
design: 8mm diameter threaded coupling saves valuable panel space.
Industrial durability: Metal or plastic housing withstands vibration and mechanical stress.
Reliable sealing: IP67/IP68 rated versions available for harsh environments.
Wiring options: Choose from pre-wired cables or field-wireable versions.
Polarized versions: Available with keyed coding to prevent mismating.
Product Series

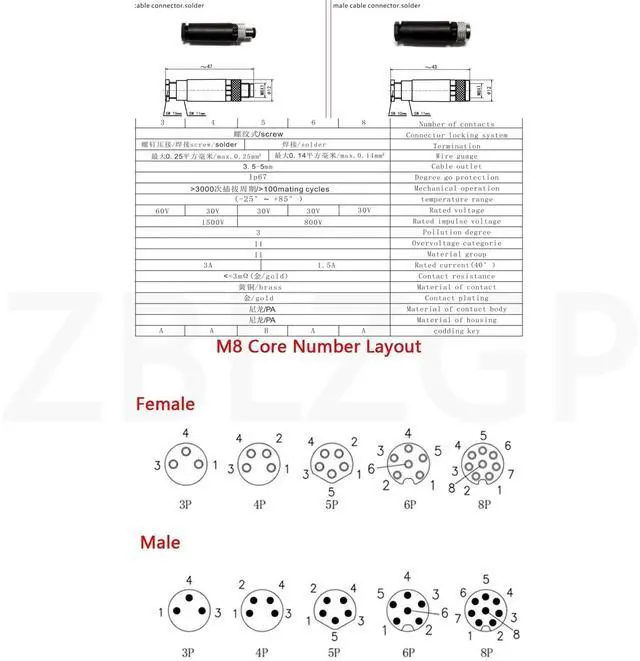

M8 series includes: M8 male/female straight connectorsM8 male/female right-angle connectorsM8 panel mount receptaclesM8 cable-to-cable connectorsAvailable in 3-pin, 4-pin, 5-pin, 6-pin
and 8-pin configurationsSpecifications: Current
rating: 2A/4A (depending on configuration)
Voltage rating: 30V/60V
AC/DCContact resistance: 10mInsulation
resistance: 100MOperating
temperature: -25C
to +85CMating cycles: 100
cyclesHousing material: plastic or metal
design: 8mm diameter threaded coupling saves valuable panel space.
Industrial durability: Metal or plastic housing withstands vibration and mechanical stress.
Reliable sealing: IP67/IP68 rated versions available for harsh environments.
Wiring options: Choose from pre-wired cables or field-wireable versions.
Polarized versions: Available with keyed coding to prevent mismating.
Product Series
Details
: TheM8 series includes: M8 male/female straight connectorsM8 male/female right-angle connectorsM8 panel mount receptaclesM8 cable-to-cable connectorsAvailable in 3-pin, 4-pin, 5-pin, 6-pin
and 8-pin configurationsSpecifications: Current
rating: 2A/4A (depending on configuration)
Voltage rating: 30V/60V
AC/DCContact resistance: 10mInsulation
resistance: 100MOperating
temperature: -25C
to +85CMating cycles: 100
cyclesHousing material: plastic or metal
