BASALIMPACT POE+ Switch, 4 PoE Ports, 2 Ethernet Uplink, Sturdy Metal Switch, Power Over ethernet Switch, 10/100Mbps, 802.3af/at, Ethernet Unmanaged Switch

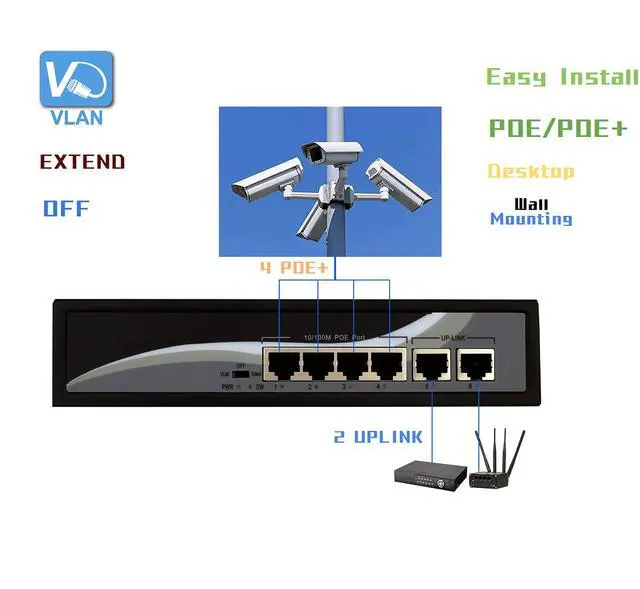

- POWER OVER ETHERNET SWITCH: 4-port 10/100M PoE+Switch, 2 fast 10/100M Ethernet Uplink ports for Connection to Router and Network Video Recorder (NVR), Up to 30W per port, which is better than normal PoE port. Total Power Budget 65W, Bandwidth is up to 1.2Gbps.
- PLUG AND PLAY: Zero configuration, Unmanaged 4+2 ports PoE+ switch, Durable metal housing, Auto MDI/MDIX, Internal Power Supply design, desktop or wall mounting easily, Ideal for office or home securit system.
- HIGH PERFORMANCE: Comppliant IEEE 802.3af/at, 802.3&802.3u, Support IEEE 802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode. Sturdy Metal PoE+ switch, fanless, Perfect for IP cameras, wired surveillance cameras, VoIP phones, wireless access points, and other network devices.
- SMALL SWITCH, BIG FUNCTION: Extend mode extending max PoE transmission distance from 100 meters to 250 meters. VLAN funcation is port isolation mode and each port only can communite with uplink. The OFF mode
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
It is a new 4 POE+ Ports Switch with two uplink ports, desktop or wall mounting easily, zero configuration, unmanaged, 65 W, small switch with big function. We are committed to provide Good Quality and Great Styles for you. Your complete satisfaction is our goal.
Ports: 2*10/100Mbps Uplink ports, 4*10/100 Mbps
PoE portsPoE Power: Port 1 -4 30W, Total65WPoE
Standard: IEEE 802.3 af (PoE), IEEE 802.3 at (PoE+)Switching
Capacity: 1.2G bps (non-blocking)Network
Protocols: IEEE 802.3 i 10BASET; IEEE 802.3 u 100BASETX; IEEE 802.3 x Flow Control; IEEE 802.3 af/atNetwork
Media:
10BASE-T: Cat. 3 or above
UTP/STP (100 meter) 10BASE-T: Cat. 6 or above
UTP/STP (250 meter) 100BASE-TX: Cat5 or above UTP/STP (100 meter)
Forwarding Mode: Store-And-ForwardPower
Supply: Power
input: AC110-260V 50/60Hz output 52V 1.25AP oE
Feature: All ports support
MDI/MDIXMAC Table Size: 1KOperating
Humidity: 10% ~ 90%, non-condensingOperating
Temperature: -20
55Weight: 1.15 lb (520g) Dimensions (W x D x
H): 7.87 in x 4.72 in x 1.77 in (200mm*120mm*45mm)
Packing list: 6-Ports 10/100 Switch with 4 PoE ports and 2 Uplink Ethernet X 1, User Manual X 1, Power cord X 1
Specifications
:Ports: 2*10/100Mbps Uplink ports, 4*10/100 Mbps
PoE portsPoE Power: Port 1 -4 30W, Total65WPoE
Standard: IEEE 802.3 af (PoE), IEEE 802.3 at (PoE+)Switching
Capacity: 1.2G bps (non-blocking)Network
Protocols: IEEE 802.3 i 10BASET; IEEE 802.3 u 100BASETX; IEEE 802.3 x Flow Control; IEEE 802.3 af/atNetwork
Media:
10BASE-T: Cat. 3 or above
UTP/STP (100 meter) 10BASE-T: Cat. 6 or above
UTP/STP (250 meter) 100BASE-TX: Cat5 or above UTP/STP (100 meter)
Forwarding Mode: Store-And-ForwardPower
Supply: Power
input: AC110-260V 50/60Hz output 52V 1.25AP oE
Feature: All ports support
MDI/MDIXMAC Table Size: 1KOperating
Humidity: 10% ~ 90%, non-condensingOperating
Temperature: -20
55Weight: 1.15 lb (520g) Dimensions (W x D x
H): 7.87 in x 4.72 in x 1.77 in (200mm*120mm*45mm)
Packing list: 6-Ports 10/100 Switch with 4 PoE ports and 2 Uplink Ethernet X 1, User Manual X 1, Power cord X 1
