DaRui Power Distribution Block Bus Bar 5/16'' M8 Terminal Stud 4 Post with Cover 250 Amp Rating for Marine Automotive and Solar Wiring RV Boat (250A, 5/16'', Red+Black)

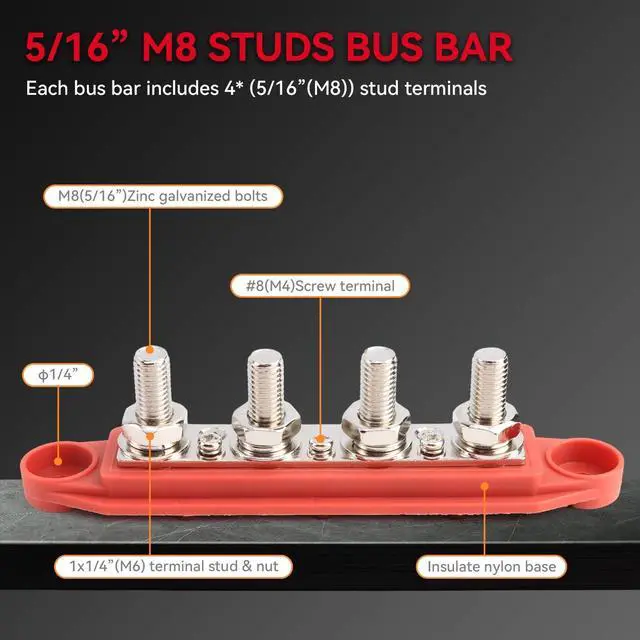

- Basic Parameters 4*#8 stainless steel terminal screws, 4*5/16" studs. The dimensions: 6.6"Lx1.33"Wx1.65H".
- Operating Voltage/Amperage range Max voltage: 48VDC. Max continuous amperage: 250A for the entire connection. Maximum intermittent: 20A for each connection (less than 1 minute). So whether your working on a boat, a car, or an RV, we've got you covered.

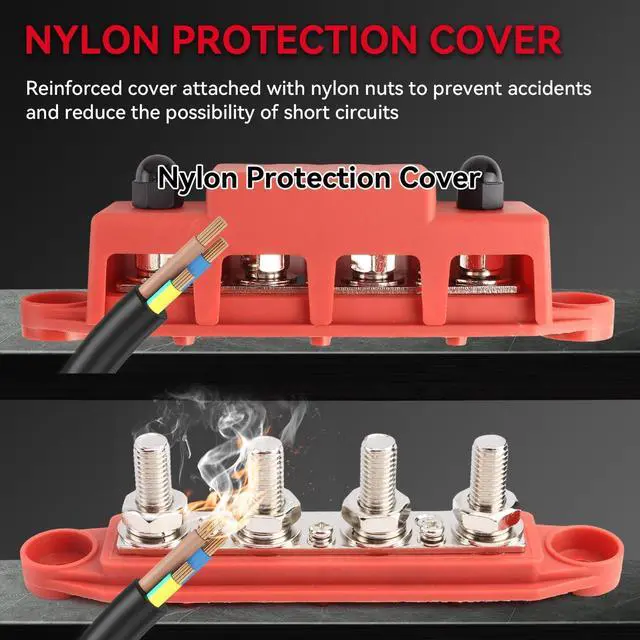

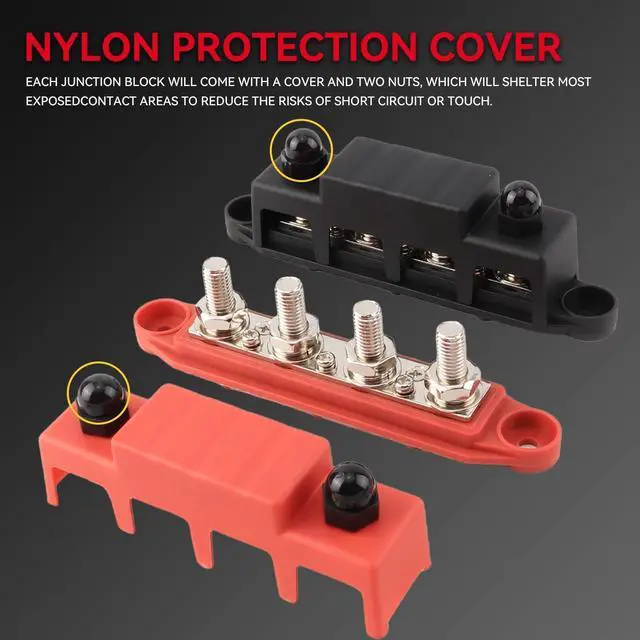

- Built for Safe Nickle plated brass busbar plates offer low resistance, maximum conductivity, and corrosion protection. The nylon nuts connect to two external studs to prevent accidental short circuits. A removable Nylon cover keeps metal components from making contact with anything. The insulated nylon base is flame-retardant.
- Distribute Power More Efficiently Provides several large gauge connections for running a dedicated ground to the battery and offers more minor gauge connections for lower voltage.
- Wide ApplicationsDaRui bus bar is an excellent circuit collection wire Harness in the car, RV, yacht, caravan, and ship
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Basic Parameters 4*#8 stainless steel terminal screws, 4*5/16" studs.

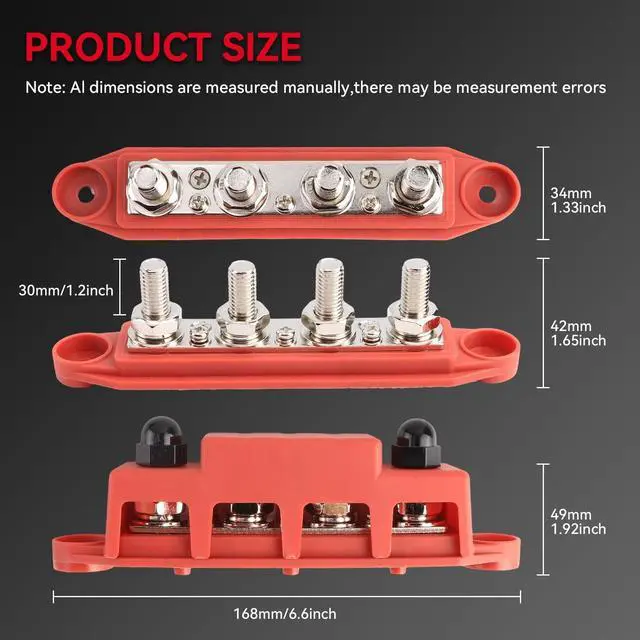

The dimensions: 6.6"L x 1.33"W x 1.65H ". ^^ Operating Voltage/Amperage range
Max voltage: 48VDC.
Max continuous amperage: 250A for the entire connection.
Maximum intermittent: 20A for each connection (less than 1 minute). So whether your working on a boat, a car, or an RV, we've got you covered. ^^ Built for Safe Nickle plated brass busbar plates offer low resistance, maximum conductivity, and corrosion protection. The nylon nuts connect to two external studs to prevent accidental short circuits. A removable Nylon cover keeps metal components from making contact with anything. The insulated nylon base is flame-retardant. ^^ Distribute Power More Efficiently Provides several large gauge connections for running a dedicated ground to the battery and offers more minor gauge connections for lower voltage. ^^ Wide ApplicationsDaRui bus bar is an excellent circuit collection wire Harness in the car, RV, yacht, caravan, and ship power system. The busbar holds wide cables securely to keep the wires neat.
The dimensions: 6.6"L x 1.33"W x 1.65H ". ^^ Operating Voltage/Amperage range
Max voltage: 48VDC.
Max continuous amperage: 250A for the entire connection.
Maximum intermittent: 20A for each connection (less than 1 minute). So whether your working on a boat, a car, or an RV, we've got you covered. ^^ Built for Safe Nickle plated brass busbar plates offer low resistance, maximum conductivity, and corrosion protection. The nylon nuts connect to two external studs to prevent accidental short circuits. A removable Nylon cover keeps metal components from making contact with anything. The insulated nylon base is flame-retardant. ^^ Distribute Power More Efficiently Provides several large gauge connections for running a dedicated ground to the battery and offers more minor gauge connections for lower voltage. ^^ Wide ApplicationsDaRui bus bar is an excellent circuit collection wire Harness in the car, RV, yacht, caravan, and ship power system. The busbar holds wide cables securely to keep the wires neat.
