4PCS Type-C PD3.0/3.1 QC Trigger Module USB-C PD 5V 9V 12V 15V 20V 28V 5A 140W Adjustable Voltage Fast Charge Power Trigger Board USB-C Female Input
- Support Multiple of ProtocolsQC PD2.0/3.0/3.1 FCP AFC voltage trigger output. Ajustable voltage 5V/9V/12V/15V/20V/28V trigger output.
- Wide CompatibilityMax supports 28V/5A, 140W. The actual output current/power is determined by your fast charging charger and load.
- Safe DesignSolid and long service life. Prevent misoperation from avoiding voltage damage to load equipment. Ultra-low power consumption.

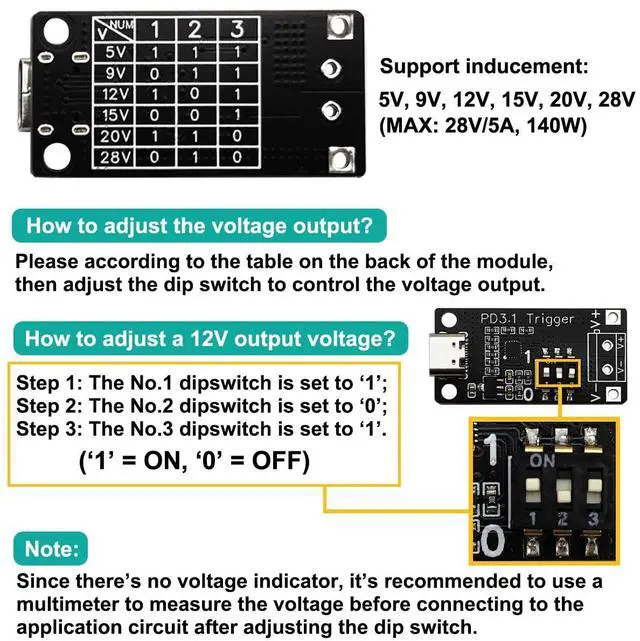

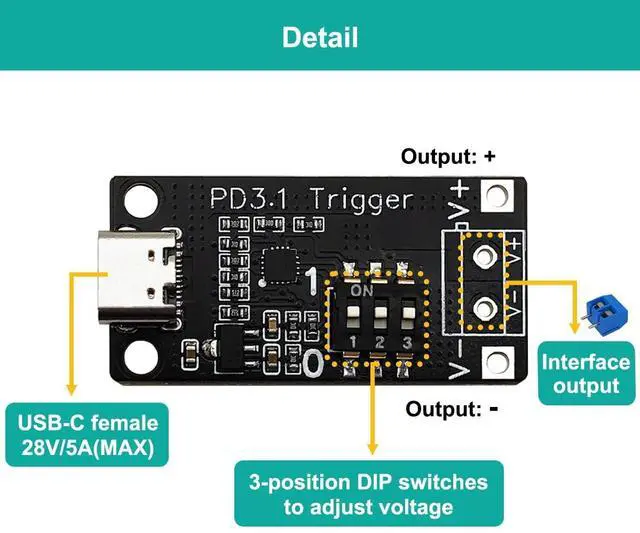

- Easy to OperateThe trigger board is marked the table on the back that easy to show how to adjust the 3-position dip switch to different voltages.
- Widely UseIt can be used for fast charger to trigger different voltages as DC power supply, and also be used to supply power to router, optical modem, battery charging, etc.
- Note: When you want to test/use the voltage 28V, please make sure the 140W power supply is connected to only one piece type-C cable with E-mark. (If the 140W power supply is connected to 2 pieces or more cables, the power supply output will not reach 28V.)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Output: 5V/9V/12V/15V/20V/28V
Output current: 5A (MAX)
Power: 100W(20V/5A), 140W(28V/5A)
Operating Temperature: -40 C to +85

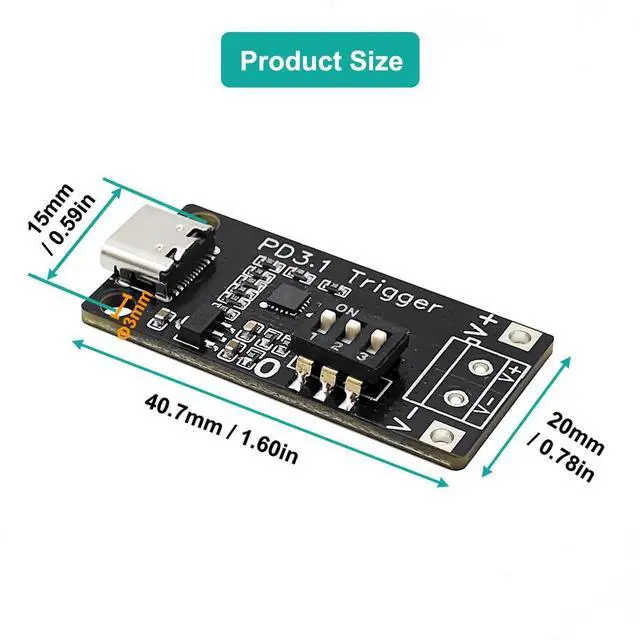

C Size: 40.7X 20X 6.1 mm
Weight: 3.7 g
Attentions:
1. The trigger board can't boost buck, it can be induce power module output only.
2. Please know that there are not all USB-C power supplies can support all voltages. The max support is 28V/5A (140W), the actual output current/power is determined by your fast charging charger and load.
3. If the power supply is not support the requested voltage, it will be provided the next lowest voltage. (If you want to trigger 12V, but your charger doesn't support 12V, it will automatically fall back to 9V)
4. If you want to use more than 65W, please use the TYPE-C cable with E-mark. (Max current support 5A)
5. Since there's no voltage indicator, it's recommended to use a multimeter to measure the voltage before connecting to the application circuit after adjusting the dip switch.
6. When you want to test/use the voltage 28V, please make sure the 140W power supply is connected to only one piece type-C cable with E-mark. (If the 140W power supply is connected to 2 pieces or more cables, the power supply output will not reach 28V. )

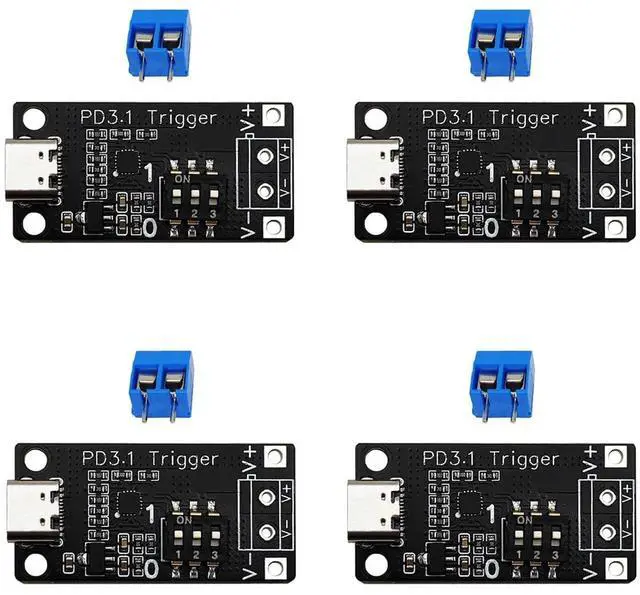

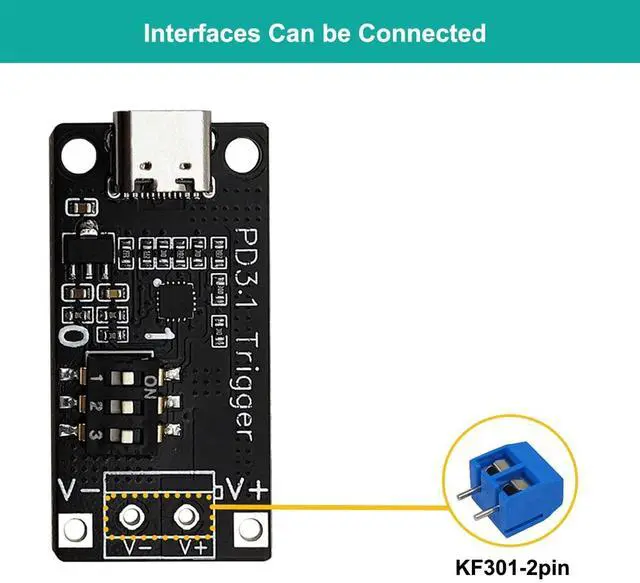

Package Included: 4* PD 3.1 Trigger Board 4* KF301-2pin
Output: 5V/9V/12V/15V/20V/28V
Output current: 5A (MAX)
Power: 100W(20V/5A), 140W(28V/5A)
Operating Temperature: -40 C to +85
C Size: 40.7X 20X 6.1 mm
Weight: 3.7 g
Attentions:
1. The trigger board can't boost buck, it can be induce power module output only.
2. Please know that there are not all USB-C power supplies can support all voltages. The max support is 28V/5A (140W), the actual output current/power is determined by your fast charging charger and load.
3. If the power supply is not support the requested voltage, it will be provided the next lowest voltage. (If you want to trigger 12V, but your charger doesn't support 12V, it will automatically fall back to 9V)
4. If you want to use more than 65W, please use the TYPE-C cable with E-mark. (Max current support 5A)
5. Since there's no voltage indicator, it's recommended to use a multimeter to measure the voltage before connecting to the application circuit after adjusting the dip switch.
6. When you want to test/use the voltage 28V, please make sure the 140W power supply is connected to only one piece type-C cable with E-mark. (If the 140W power supply is connected to 2 pieces or more cables, the power supply output will not reach 28V. )
Package Included: 4* PD 3.1 Trigger Board 4* KF301-2pin
