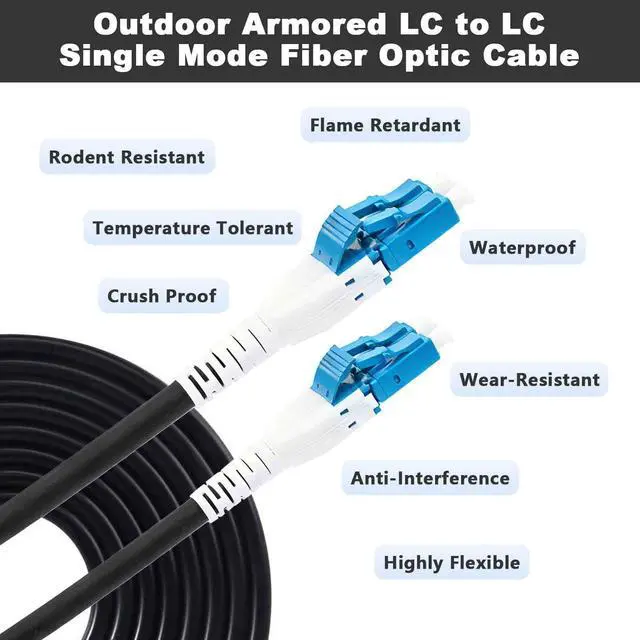

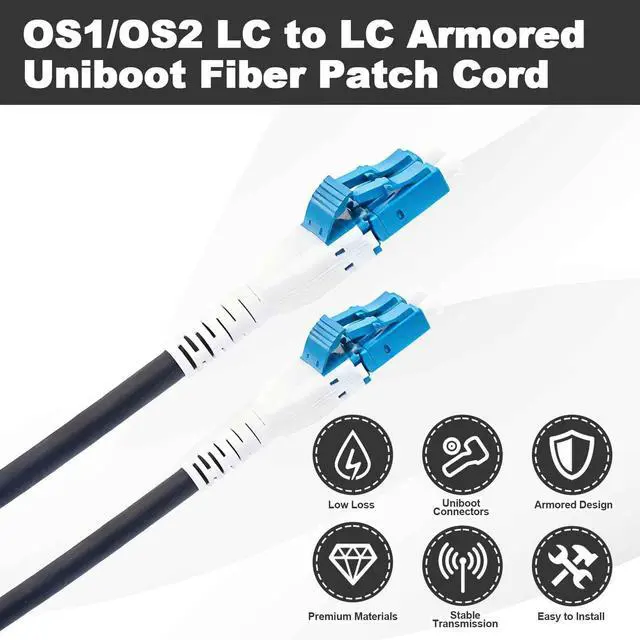

Hamadap 50 Meters Uniboot LC to LC Outdoor Armored Fiber Patch Cable, 1G/10GB Single Mode Patch Cord Duplex 9/125 SM Field Fiber Optic Jumper, LSZH Black, OD-5mm, OS1/OS2 Compatible

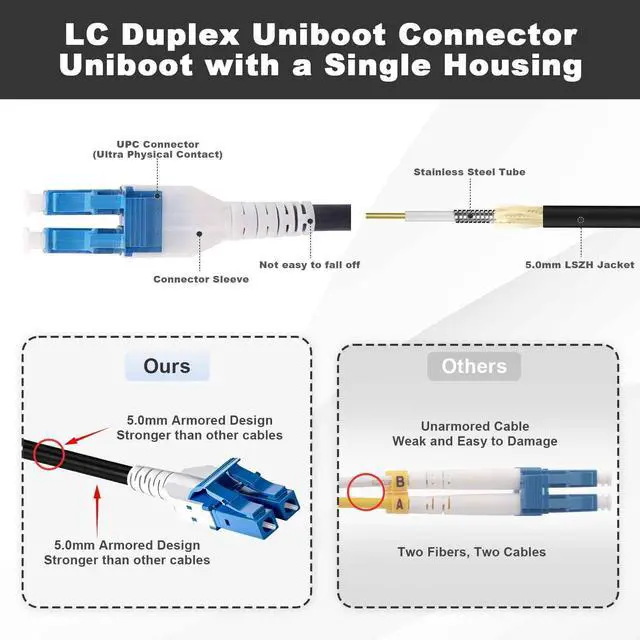

- Space-Saving Uniboot Connectors: LC duplex connectors with uniboot integrate two optical fibers within a single protective housing, connected via a single dual-fiber circular cable. Compared to traditional duplex cables, it reduces the required space by half, simplifies patch panel management, and serves as an ideal choice for high-density cabling applications.

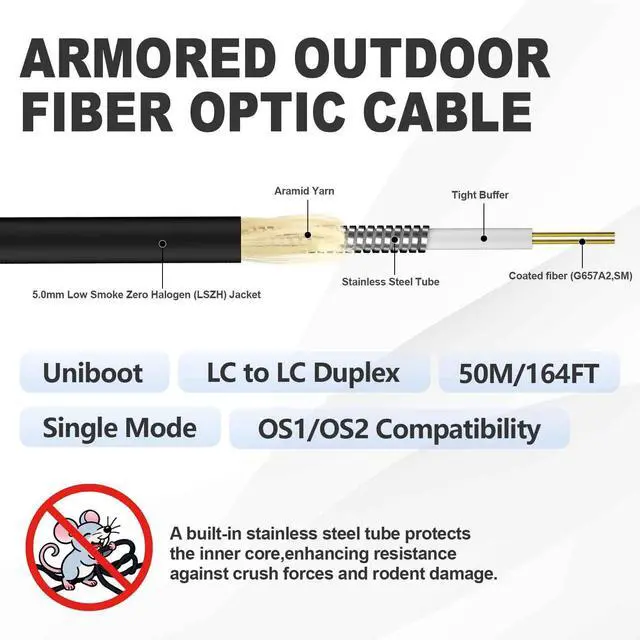

- Armored Design: Our LC fiber jumper cable is built with a stainless steel tube to protect the inner core (fiber glass) from damage caused by pets and other external factors. it remains all the features of a standard patch cord, but is much stronger. Pressure resist, Wear resist and Heat Resist. This armored design single mode fiber cable reduces maintenance and replacement needs and suitable for outdoor use.
- LSZH Material: Our OS2 armored LC to LC fiber optic patch cords are made of Low Smoke Zero Halogen (LSZH) material. In the event of a fire, they produce very little smoke and will not release harmful halogen gases, ens
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
FiberCore Type: Single-Mode
G657A2 Core/Cladding Diameter: 9/125 m
Cable Structure: 2Core Armored Field
Cable Outer Diameter: 5.0 mm 0.2 mm
Jacket Material: LSZH (Low Smoke Zero Halogen), Black
Insertion Loss: 0.3 dB
Return Loss (UPC): 50 dB
Connector Type: LC
Uniboot Ferrule Material: Zirconia Ceramic
Durability (Mating Cycles): 500
Tensile Strength: 1500
N Bend Radius: Static 10 mm, Dynamic 20 mm
Operating Temperature: -40 to +85

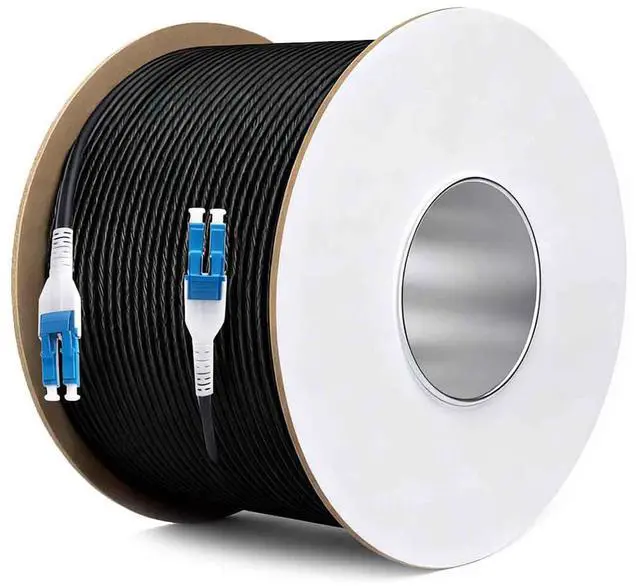

Packaging: Reel/Coiled Pack
