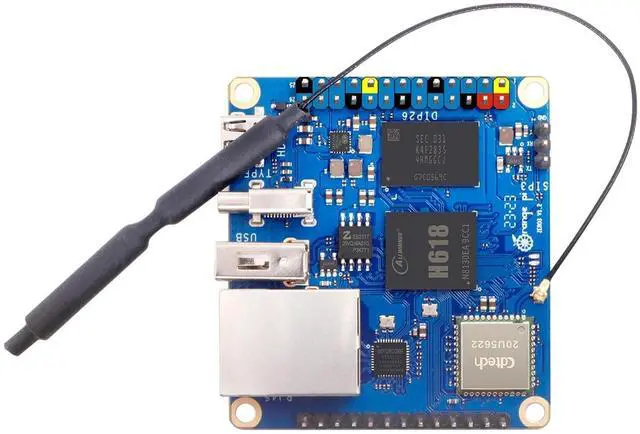

Orange Pi Zero 3 2GB Allwinner H618 LPDDR4 Quad Core 64 Bit Single Board Computer, Support 4K Display WiFi Bluetooth
- The Orange Pi Zero 3 2GB uses a full-memory H618 64-bit high-performance quad-core Cortex-A53 processor, Arm Mali-G31 MP2 GPU, and supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1, etc.
- Orange Pi Zero 3 2G Microcontroller has four memory specifications of 1GB /1.5GB/2GB/4GB to choose from, support a variety of video formats codec, Micro-HDMI output support 4K display, can be widely used in TV boxes, smart projection equipment and so on. Suitable for Building Mini PC/Smart Robot/Game Console/Workstation/Media Center/VR/Etc.
- The Orange Pi Zero 3 Mini PC Computer can also extend the functions of headphones, TV-Out, USB2.0, and infrared reception through the 13Pin expansion port and adapter board.
- The Orange Pi Zero 3 26Pin expansion function port on this board further enrichis the functional interface of the motherboard and enhances the potential for development.
- Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

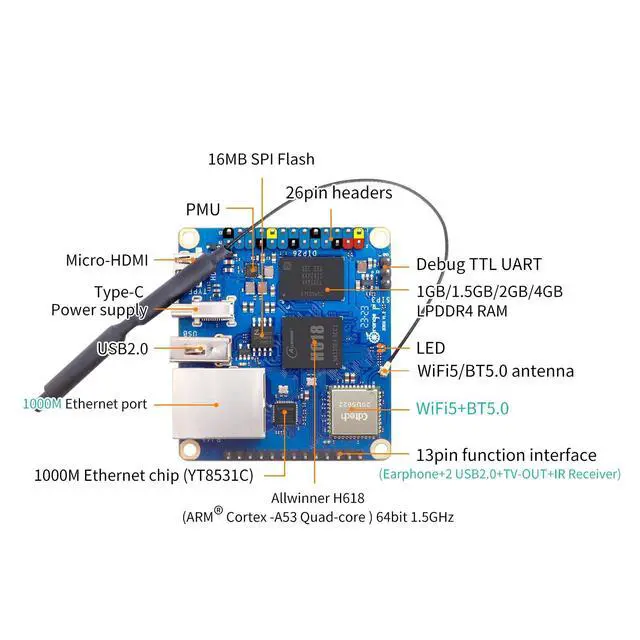

Product ParameterCPU: Full memory H618 high-performance quad-core
Cortex-A53 processor 1.5GH zGPU: Mali G31 MP2Support OpenGL ES 1.0 / 2.0 / 3.2, OpenCL 2.0, Vulkan
1.1M emor: 1GB/ 1.5GB /2GB/4GB
LPDDR4Onboard storage: 16MB
SPI FlashPower management: AXP313AOnboard
WiFi+ Bluetooth: supports WiFi5 and
Bluetooth 5.0N etwork: 10M/100M/1000M
Ethernet interfaceAudio input and output: 13Pin expansion port supports two outputs and one inputVideo
Output: Micro
HDMI support 4K@60fpstv-out: 13Pin supports one
TV CVBS outputUART: 3Pin
Debug UARTUSB: USB 2.0 x 3 (two of which lead from the expansion board)
SD Card port: MicroSD

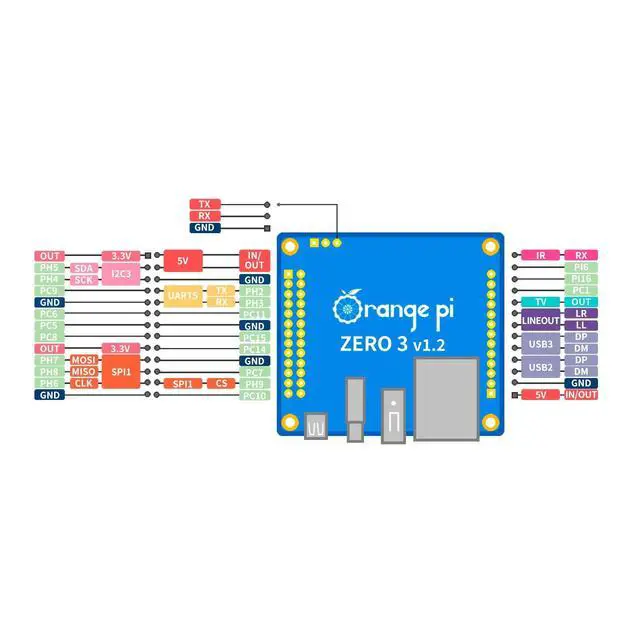

card portExpansion interface: 26Pin GPIO interface13Pin
GPIO interfacePower input: 5V3A, Type-c interfaceSupported
Operating Systems: Android 12 TV, Debian11, Debian12, Ubuntu 22.04, Ubuntu 20.04A ppearance

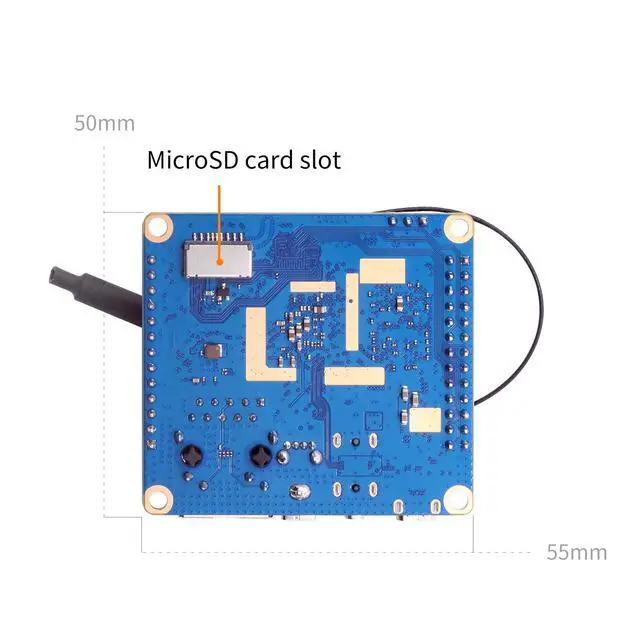

SpecificationProduct size: 50mmX55mm
Cortex-A53 processor 1.5GH zGPU: Mali G31 MP2Support OpenGL ES 1.0 / 2.0 / 3.2, OpenCL 2.0, Vulkan
1.1M emor: 1GB/ 1.5GB /2GB/4GB
LPDDR4Onboard storage: 16MB
SPI FlashPower management: AXP313AOnboard
WiFi+ Bluetooth: supports WiFi5 and
Bluetooth 5.0N etwork: 10M/100M/1000M
Ethernet interfaceAudio input and output: 13Pin expansion port supports two outputs and one inputVideo
Output: Micro
HDMI support 4K@60fpstv-out: 13Pin supports one
TV CVBS outputUART: 3Pin
Debug UARTUSB: USB 2.0 x 3 (two of which lead from the expansion board)
SD Card port: MicroSD
card portExpansion interface: 26Pin GPIO interface13Pin
GPIO interfacePower input: 5V3A, Type-c interfaceSupported
Operating Systems: Android 12 TV, Debian11, Debian12, Ubuntu 22.04, Ubuntu 20.04A ppearance
SpecificationProduct size: 50mmX55mm
