ESP32 LoRa V4 Development Board + L76K GNSS GPS Module + 3000mAh 3.7V Lithium Battery, ESP32-S3 WiFi BLE SX1262 LoRa Kit for Arduino Meshtastic LoRaWAN

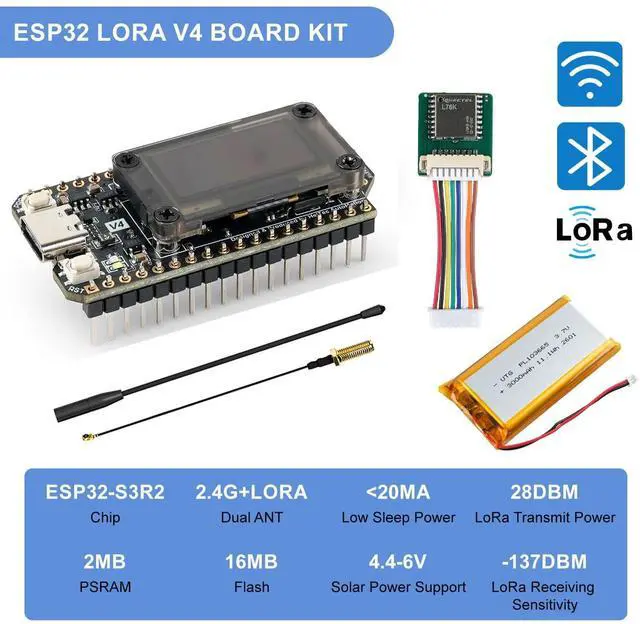

- What you will get: 1 x ESP32 LoRa V4 Development Board + 1 x L76K GNSS GPS Module + 1 x 3000mAh 3.7V Lithium Battery
- The all-new V4 version of the classic development board WiFi LoRa 32 supports WiFi, BLE, and LoRa communication. It supports development methods for Arduino, Micro-python, Platform-io, and Espressif-IDE
- 2MB PSRAM and 16MB external Flash, more suitable for UI and complex system
- High-power version with LoRa transmission power increased to 281dBm

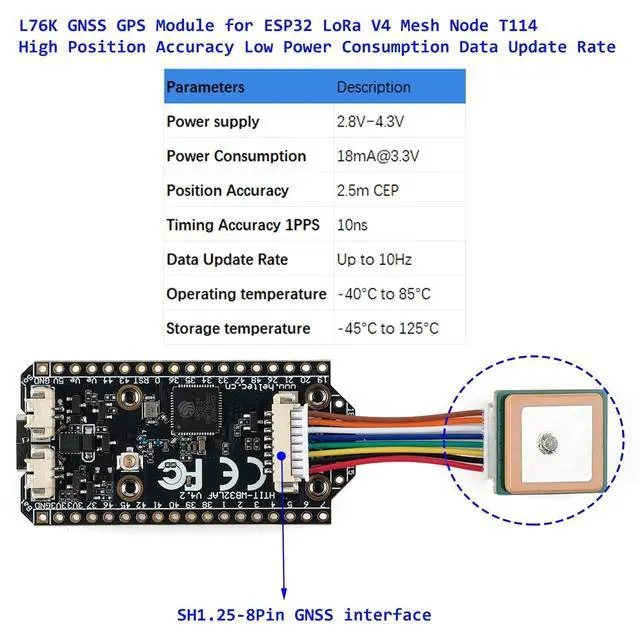

- With L76K GNSS GPS Module for ESP32 LoRa V4 Mesh Node T114, High Position Accuracy Low Power Consumption Data Update Rate

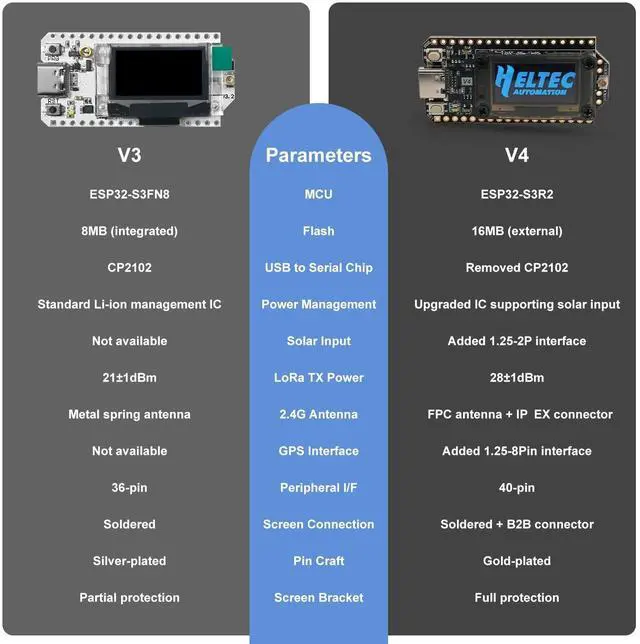

- Form factor and pin compatibility with Wi-Fi LoRa 32 V3
- Its the best choice for smart cities, smart farms, smart home, and IoT makers
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The classic WiFi LoRa 32 development board has been upgraded to the all-new V4 version. While retaining the advantages of previous editions, it features comprehensive improvements in craftsmanship and enhanced performance.
Main Features: Base on ESP32-S3R2 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication. 2MB PSRAM and 16MB external Flash, more suitable for UI and complex system.

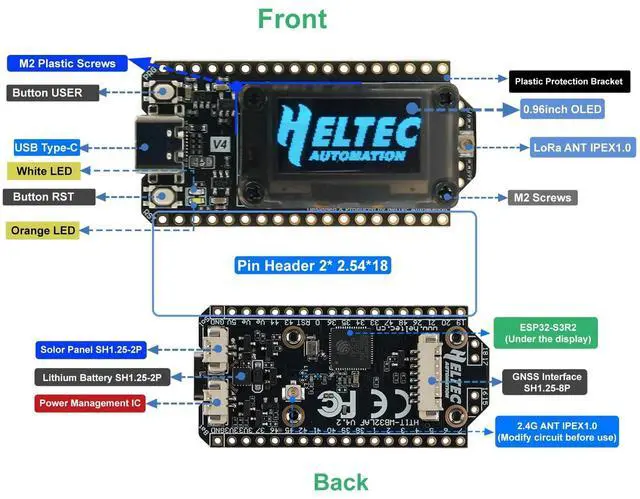

LoRa Transmit Power: High-power version 28 dBmPC casing protects the screen and integrates FPC 2.4G antenna. Form factor and pin compatibility with WiFi LoRa 32 V3. PC casing protects the screen and integrates FPC 2.4G antenna. Added 1.25 -2Pin solar panel interface, and 1.25 -8Pin GNSS interface. Optimized lithium battery management. Low power consumption is less than 20A.
MCU: ESP32-S3R2 (Xtensa32-bit lx7 dual core processor)LoRa
Chip:
SX1262Frequency: 863-928MHzMax.
TX Power: High-power
version: 28 1 dBmMax.
Receiving sensitivity: -137dBm@SF12
BW=125KHzWi-Fi: 802.11 b/g/n, up
to 150MbpsBluetooth: Bluetooth (LE), Bluetooth 5,
Bluetooth MeshHardware Resource: 7*ADC1 + 2*ADC27*Touch3*UART2*I2C2*SPI; etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 2MB PSRAM; 16MB
FlashInterface: Type-C USB 1.25 *2 Pin lithium battery interface 1.25 *2 Pin Solar interface 1.25 *8 Pin interfaceLoRa ANT(I-PX 1.0 ) 2.4G
ANT(I-PX 1.0 )Battery applicable: 3.3 - 4.4V lithium batteryOperating
Temperature: -20 ~ 70

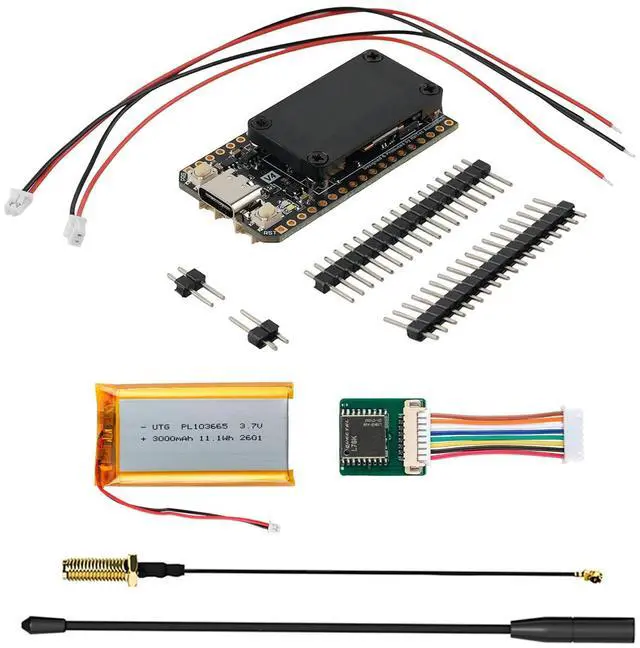

Dimensions: 51.7 * 25.4 * 10.7 mmPacking list: WiFi LoRa 32 (V4) x 1L76K GNSS GPS Module x 15DBI LoRa Antenna x 11.252 Connector (for battery&solar) x 22.54 *18 Header Pin x 22.54 *2 Header Pin x 23000mAh 3.7V Lithium Battery x 1
Main Features: Base on ESP32-S3R2 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication. 2MB PSRAM and 16MB external Flash, more suitable for UI and complex system.
LoRa Transmit Power: High-power version 28 dBmPC casing protects the screen and integrates FPC 2.4G antenna. Form factor and pin compatibility with WiFi LoRa 32 V3. PC casing protects the screen and integrates FPC 2.4G antenna. Added 1.25 -2Pin solar panel interface, and 1.25 -8Pin GNSS interface. Optimized lithium battery management. Low power consumption is less than 20A.
Specifications
:MCU: ESP32-S3R2 (Xtensa32-bit lx7 dual core processor)LoRa
Chip:
SX1262Frequency: 863-928MHzMax.
TX Power: High-power
version: 28 1 dBmMax.
Receiving sensitivity: -137dBm@SF12
BW=125KHzWi-Fi: 802.11 b/g/n, up
to 150MbpsBluetooth: Bluetooth (LE), Bluetooth 5,
Bluetooth MeshHardware Resource: 7*ADC1 + 2*ADC27*Touch3*UART2*I2C2*SPI; etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 2MB PSRAM; 16MB
FlashInterface: Type-C USB 1.25 *2 Pin lithium battery interface 1.25 *2 Pin Solar interface 1.25 *8 Pin interfaceLoRa ANT(I-PX 1.0 ) 2.4G
ANT(I-PX 1.0 )Battery applicable: 3.3 - 4.4V lithium batteryOperating
Temperature: -20 ~ 70
Dimensions: 51.7 * 25.4 * 10.7 mmPacking list: WiFi LoRa 32 (V4) x 1L76K GNSS GPS Module x 15DBI LoRa Antenna x 11.252 Connector (for battery&solar) x 22.54 *18 Header Pin x 22.54 *2 Header Pin x 23000mAh 3.7V Lithium Battery x 1
