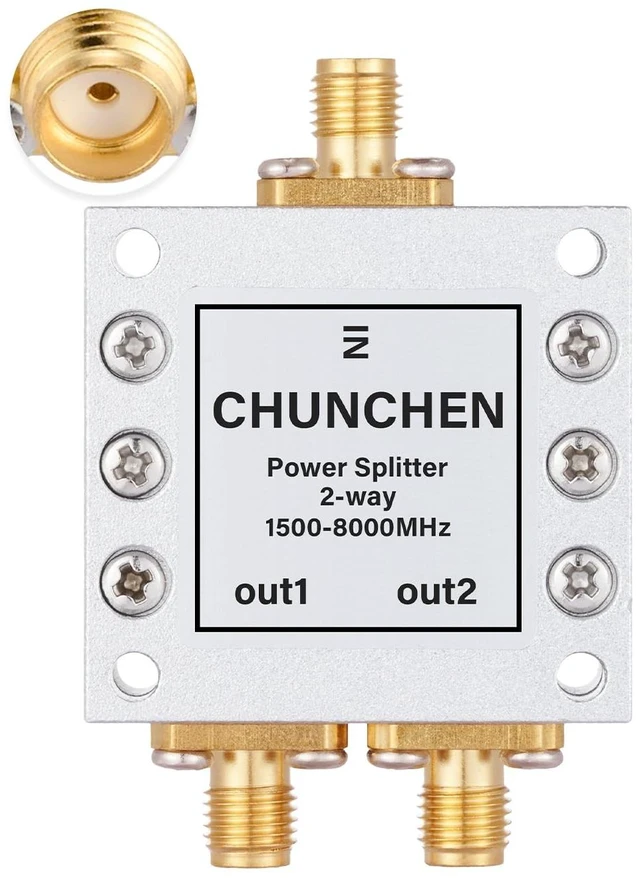

CHUNCHEN 2 Way 1.5-8GHz Power Splitter SMA Female Connector Signal Splitter 1500MHz-8000Mhz Cable Signal Splitter 1 Input 2 Output for Antenna Cable
- Product name: 1.5-8GHz SMA female 2 way power splitter 1 input 2 out;
- Connector port: 1 input and 2 output; Output port type: 2 way; Connector type(Input): SMA female; Connector type(Output 1): SMA female; Connector type(Output 2): SMA female; Product material(Body): Aluminum alloy; Connector material: Copper;
- Specification: Frequency range (GHz): 1500-8000Mhz; Insertion loss (dB): 4.7-7.5; Isolation (dB): 20; VSWR: 1.1, 1.55; Amplitude balance (dB): 0.3; Phase balance (): 5; Impedance (): 50; Power capacity (W): 50; Operating temperature (C): -30+70; Product dimensions (cm): 5.4*3.5*1.4cm;
- Applicaion: Provides 2 amplified SMA female output ports for use with cable antenna satellite signal and so on;
- Package: 1 x SMA female 2 way signal splitter(Weight:44g).
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product name: 1.5 -8GHz SMA female 2 way power splitter 1 input 2 out; ^^
Connector port: 1 input and 2 output;
Output port type: 2 way;
Connector type (Input): SMA female;
Connector type (Output 1): SMA female;
Connector type (Output 2): SMA female;
Product material (Body): Aluminum alloy;
Connector material: Copper; ^^
Specification: Frequency
range (GHz): 1500-8000Mhz;
Insertion loss (dB): 4.7 - 7.5;
Isolation (dB): 20;
VSWR: 1.1, 1.55;
Amplitude balance (dB): 0.3;
Phase balance (): 5;
Impedance (): 50;
Power capacity (W): 50;
Operating temperature (C): -30+70;
Product dimensions (cm): 5.4 * 3.5 * 1.4 cm; ^^
Applicaion: Provides 2 amplified SMA female output ports for use with cable antenna satellite signal and so on; ^^
Package: 1 x SMA female 2 way signal splitter(Weight: 44g).
Connector port: 1 input and 2 output;
Output port type: 2 way;
Connector type (Input): SMA female;
Connector type (Output 1): SMA female;
Connector type (Output 2): SMA female;
Product material (Body): Aluminum alloy;
Connector material: Copper; ^^
Specification: Frequency
range (GHz): 1500-8000Mhz;
Insertion loss (dB): 4.7 - 7.5;
Isolation (dB): 20;
VSWR: 1.1, 1.55;
Amplitude balance (dB): 0.3;
Phase balance (): 5;
Impedance (): 50;
Power capacity (W): 50;
Operating temperature (C): -30+70;
Product dimensions (cm): 5.4 * 3.5 * 1.4 cm; ^^
Applicaion: Provides 2 amplified SMA female output ports for use with cable antenna satellite signal and so on; ^^
Package: 1 x SMA female 2 way signal splitter(Weight: 44g).
