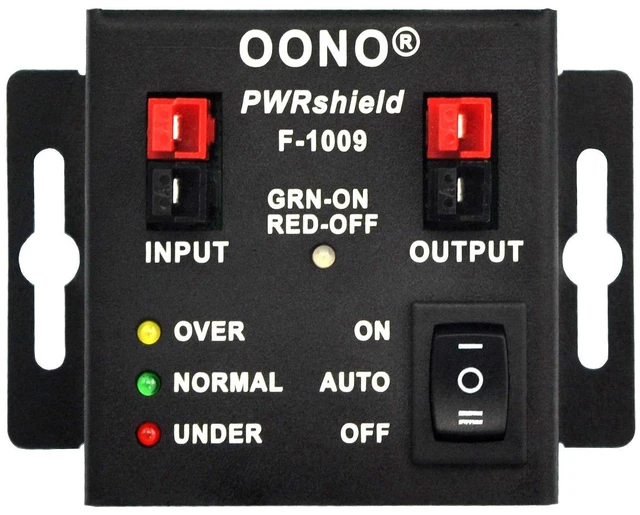

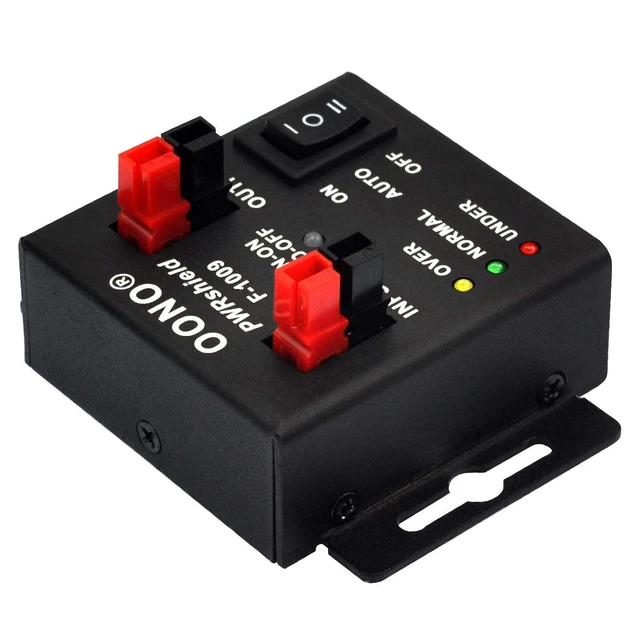

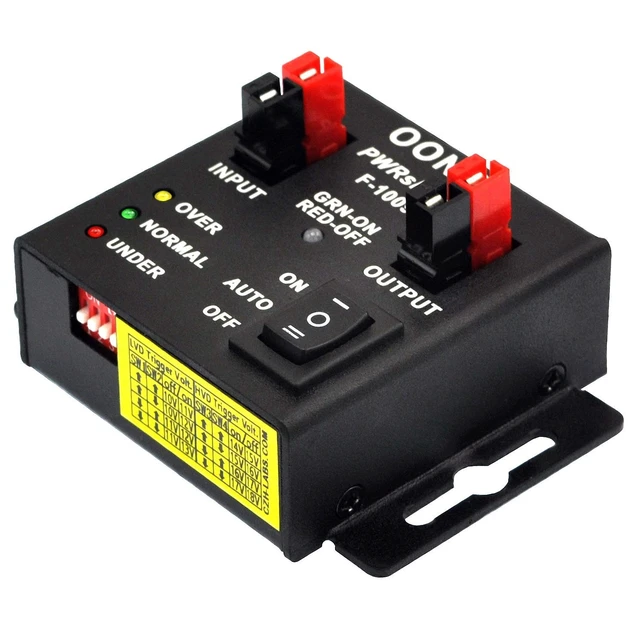

Low Loss PWRshield LVD-HVD Power Guard Module, PWRguard
- The PWRshield module is a programmable LVD(Low Voltage Disconnect) and HVD(High Voltage Disconnect) power protect system. Programmable voltage setting for LVD and HVD(rocker switch set to AUTO). With emergency ON or OFF function, if you want switch output to be immediate and remain ON or OFF, you can set rocker switch to ON or OFF.
- Design based on microcontroller and low loss MOSFETs (on status resistance < 0.002 ohm), you do not have to add heatsinks even for 30 Amps of continuous working current.
- Standard 30 Amps power pole connectors. High quality aluminum enclosure, thickness 1.5mm/0.06".
- Package includes: 1x PWRshield module, 2x black power pole housings, 2x red power pole housings, 2x PVC cover flame retardant sleeve, 4x silver plated copper 30A 14-12AWG power pole contacts.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
1, The PWRshield module is a programmable LVD (Low Voltage Disconnect) and HVD (High Voltage Disconnect) power protect system. Programmable voltage setting for LVD and HVD (rocker switch set to AUTO). With emergency ON or OFF function, if you want switch output to be immediate and remain ON or OFF, you can set rocker switch to ON or OFF. 2, Design based on microcontroller and low loss MOSFE
Ts (on status resistance < 0.002 ohm), you do not have to add heatsinks even for 30 Amps of continuous working current. 3, Standard 30 Amps Power pole connectors. 4, High quality aluminum enclosure, thickness 1.5 mm/ 0.06".
5,
Attachment includes: 2x black power pole housings. 2x red power pole housings. 2x PVC cover flame retardant sleeve. 4x silver plated copper 30A 14-12AWG power pole contacts.
Specification: Operating
voltage: DC 6.5 ~ 30VProgrammable

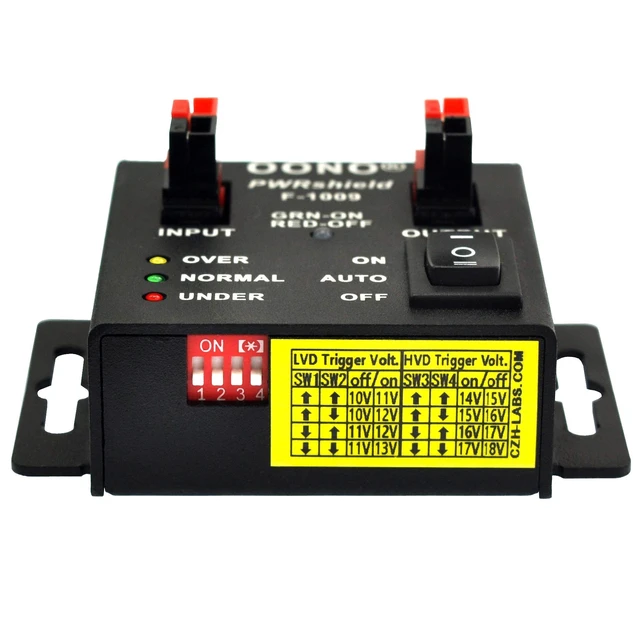

HVD value: 14V/15V, 15V-16V, 16V/17V, 17V/18V.
Programmable LVD value: 10V/11V, 10V/12V, 11V/12V, 11V/13V.
Quiescent current (output off status): 2.5 mAQuiescent current (output on status): 13mADisconnect/Reconnect
voltage tolerance: < 0.1VM ax.
output current: 40A (<5 seconds)Max.
continuous output current: 30AVoltage
drop: 0.025V (at 10A) 0.070V (at 30A) MOSFE
Ts: 30V 60A P-Channel, on status resistance < 0.002 ohm.
Connectors: compatible 45A power pole connectors, Red is positive, Black is negative.
Ts (on status resistance < 0.002 ohm), you do not have to add heatsinks even for 30 Amps of continuous working current. 3, Standard 30 Amps Power pole connectors. 4, High quality aluminum enclosure, thickness 1.5 mm/ 0.06".
5,
Attachment includes: 2x black power pole housings. 2x red power pole housings. 2x PVC cover flame retardant sleeve. 4x silver plated copper 30A 14-12AWG power pole contacts.
Specification: Operating
voltage: DC 6.5 ~ 30VProgrammable
HVD value: 14V/15V, 15V-16V, 16V/17V, 17V/18V.
Programmable LVD value: 10V/11V, 10V/12V, 11V/12V, 11V/13V.
Quiescent current (output off status): 2.5 mAQuiescent current (output on status): 13mADisconnect/Reconnect
voltage tolerance: < 0.1VM ax.
output current: 40A (<5 seconds)Max.
continuous output current: 30AVoltage
drop: 0.025V (at 10A) 0.070V (at 30A) MOSFE
Ts: 30V 60A P-Channel, on status resistance < 0.002 ohm.
Connectors: compatible 45A power pole connectors, Red is positive, Black is negative.
