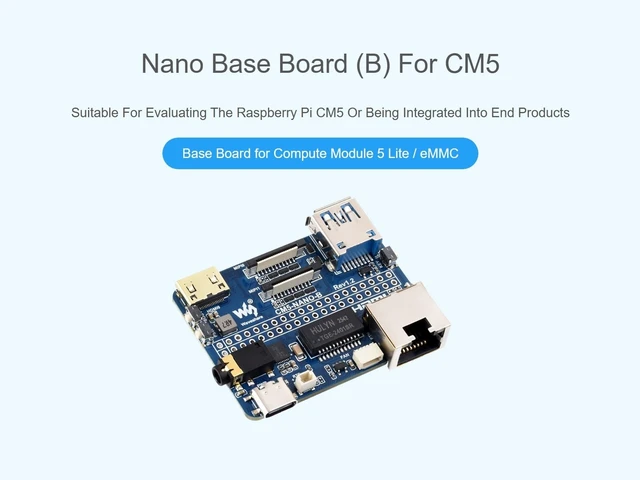

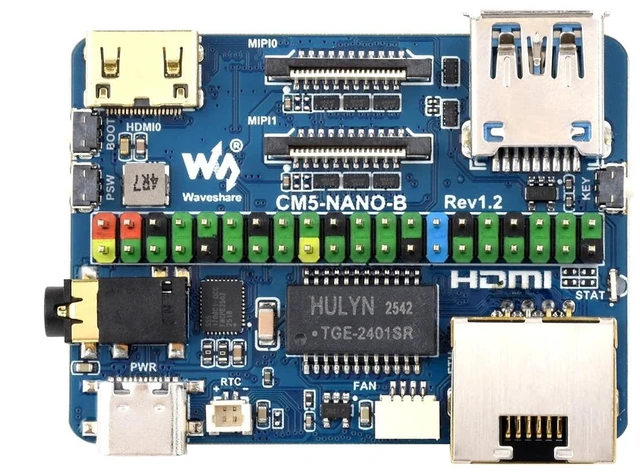

CM5 Nano Base Board Mini Expansion Board for Raspberry Pi CM5

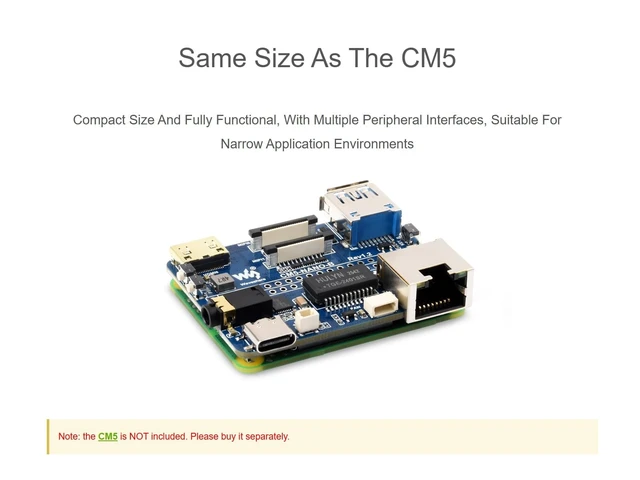

- Nano Base Board (B) for Raspberry Pi Compute Module 5 Lite / eMMC, same size as CM5, with multiple peripheral interfaces, suitable for evaluating CM5 or being integrated into end products

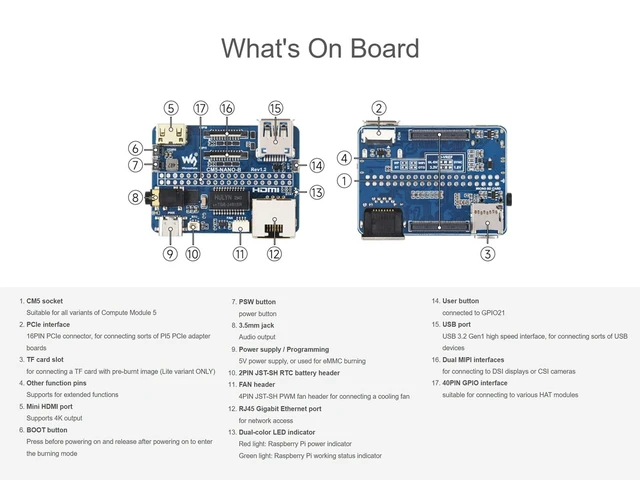

- Onboard CM5 socket, suitable for all variants of Compute Module 5. Onboard with Raspberry Pi 40PIN GPIO interface for connecting to various HAT modules
- Onboard Gigabit Ethernet RJ45 connector, USB 3.2 Gen1 Type A port 1, MIPI 4-lane interface 2 (22pin 0.5mm FPC connector), Mini HD-MI port 1 supports 4K output, USB audio 3.5mm jack, 16PIN PCIe connector (PCIe Gen2/3 x1)
- Onboard TF card socket for Compute Module 5 Lite (without eMMC) variants
- Power input: DC 5V 5A. Dimensions: 55 41mm
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Nano Base Board (B) for Raspberry Pi Compute Module 5 Lite / eMMC, same size as CM5, with multiple peripheral interfaces, suitable for evaluating CM5 or being integrated into end products ^^ Onboard CM5 socket, suitable for all variants of Compute Module 5. Onboard with Raspberry Pi 40PIN GPIO interface for connecting to various HAT modules ^^ Onboard Gigabit Ethernet RJ45 connector, USB 3.2 Gen1 Type A port 1, MIPI 4-lane interface 2 (22pin 0.5 mm FPC connector), Mini HD-MI port 1 supports 4K output, USB audio 3.5 mm jack, 16PIN PCIe connector (PCIe Gen2/3 x1) ^^ Onboard TF card socket for Compute Module 5 Lite (without eMMC) variants ^^
Power input: DC 5V 5A.
Dimensions: 55 41mm
Power input: DC 5V 5A.
Dimensions: 55 41mm
