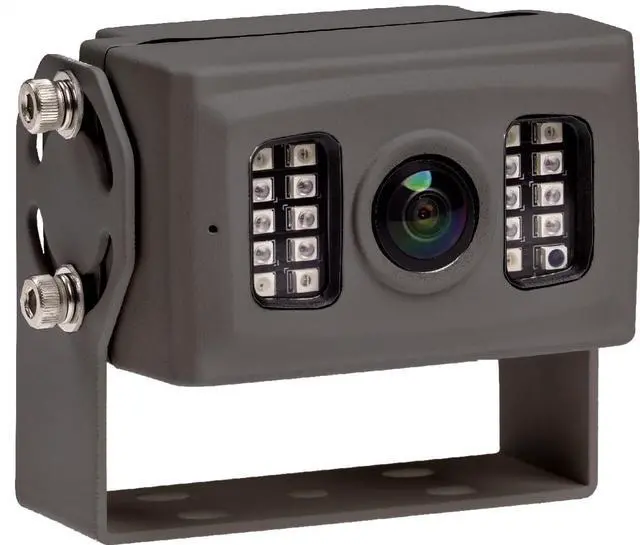

Voyager VCAHD25 Rear High-Definition Camera; 1/3" CMOS Sensor; IP69K Waterproof; IR Low-Light Assist; Microphone; Impact-Resistant Aluminum Housing; Normal/Mirror Image Switch; Black Color

Voyager VCAHD25 Rear High-Definition Camera; 1/3" CMOS Sensor; IP69K Waterproof; IR Low-Light Assist; Microphone; Impact-Resistant Aluminum Housing; Normal/Mirror Image Switch; Surface Mount; 170 Wide ViewUpgrade your vehicles safety and visibility with the Voyager VCAHD25 Rear High-Definition Camera. Engineered for high performance in all conditions, this camera features advanced color optics, a sensitive CMOS sensor, and powerful IR low-light assist for clear images day or night. Its rugged, impact-resistant aluminum housing and IP69K waterproof rating ensure reliable operation in the harshest environments. With a built-in microphone, corrosion resistance, and a wide 170 viewing angle, the VCAHD25 is the ultimate solution for secure, confident driving and parking.

Key Features: The VCAHD25/B will be replacing the VCMS24/B High-performance 1/3" CMOS sensor delivers crisp, high-definition color video for superior rear visibility IP69K waterproof and corrosion-resistant aluminum housing withstands extreme weather and road conditions 19 integrated IR LEDs provide powerful low-light and night vision capability for 24/7 safety Wide 170 diagonal viewing angle with selectable normal/mirror image for flexible installation Built-in microphone and surface mount design for easy integration and enhanced situational awarenessSpecifications: Power
System: 12VDC Operating
Voltage Range: 10V 16VDC
Power Consumption: <175mA (with
IR ON) Operating Temperature Range: -40F to 185F (-40C to 85C)
Storage Temperature Range: -40F to 185F (-40C to 85C)
Operating Relative Humidity: 100% RH
Waterproof Rating: IP69K Overall

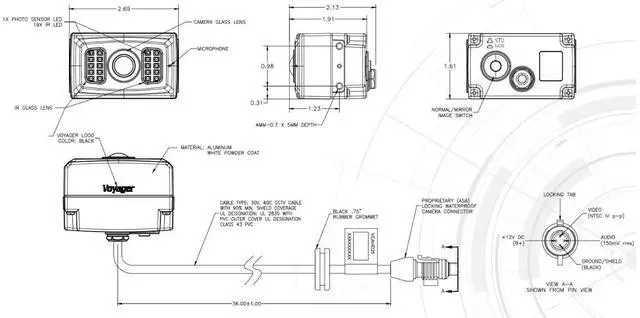

Dimensions (without bracket): 2.69" x 1.61" x 2.13"
Product Weight (unpackaged): 8.82 oz
Video Output Signal Format: NTSC CVBS
Video Signal Output Level: 1.0V p-p; 75
Sensor: 1/3"
CMOS Iris/Shutter Type: Electronic rolling shutter
Resolution: 1280 x 960
Sensitivity: 0 Lux (with IR)
Image Orientation: Default Mirror / Normal (selectable)
View Angles:
D: 170, H: 152, V: 95
IR Low-Light Assist: 19
LEDs Microphone: Integrated
Housing: Impact-resistant, corrosion-resistant aluminum
Mounting Type: Surface mount
