Banana Pi BPI-M6 LPDDR4 4GB Single Board Computer with Synaptics VS680 Cortex-A73 M3 CPU 6.75Tops NPU Imagination GE9920 GPU for AI Edge computing/Media Center/Video Call Support Android Linux
- [High Performance Synaptics VS680 CPU] ] BPI-M6 single board computer adopt Synaptics VS680 Quad-core Cortex-A73 (2.1GHz) and one Cortex-M3 CPU, Imagination GE9920 GPU, NPU for AI up to 6.75 tops. It is a smart chip built specifically for applications such as smart displays, smart cameras, set-top boxes and media streaming.
- [Greater Storage Scalability] BPI-M6 development board onboard 4GB LPDDR4 RAM and 16G eMMC flash with support for up to 64GB,with MicroSD slot and M.2 PCIe interface support for up to 256GB expansion, providing greater possibilities for AI edge computing development.
- [Wide Range of Applications] Synaptics VS680 CPU can be widely used in smart home devices. It is Integrated high-performance Imagination PowerVR Series9 GPU with HDR-capable ISP to handle two 4K cameras. DLA is combined with dual ISPs to run neural networks on the cameras' video streams to perform tasks such as facial recognition, object recognition and security surveillance.
- [4K Smar
+
+
Overview
Specs
Reviews
-Specification-

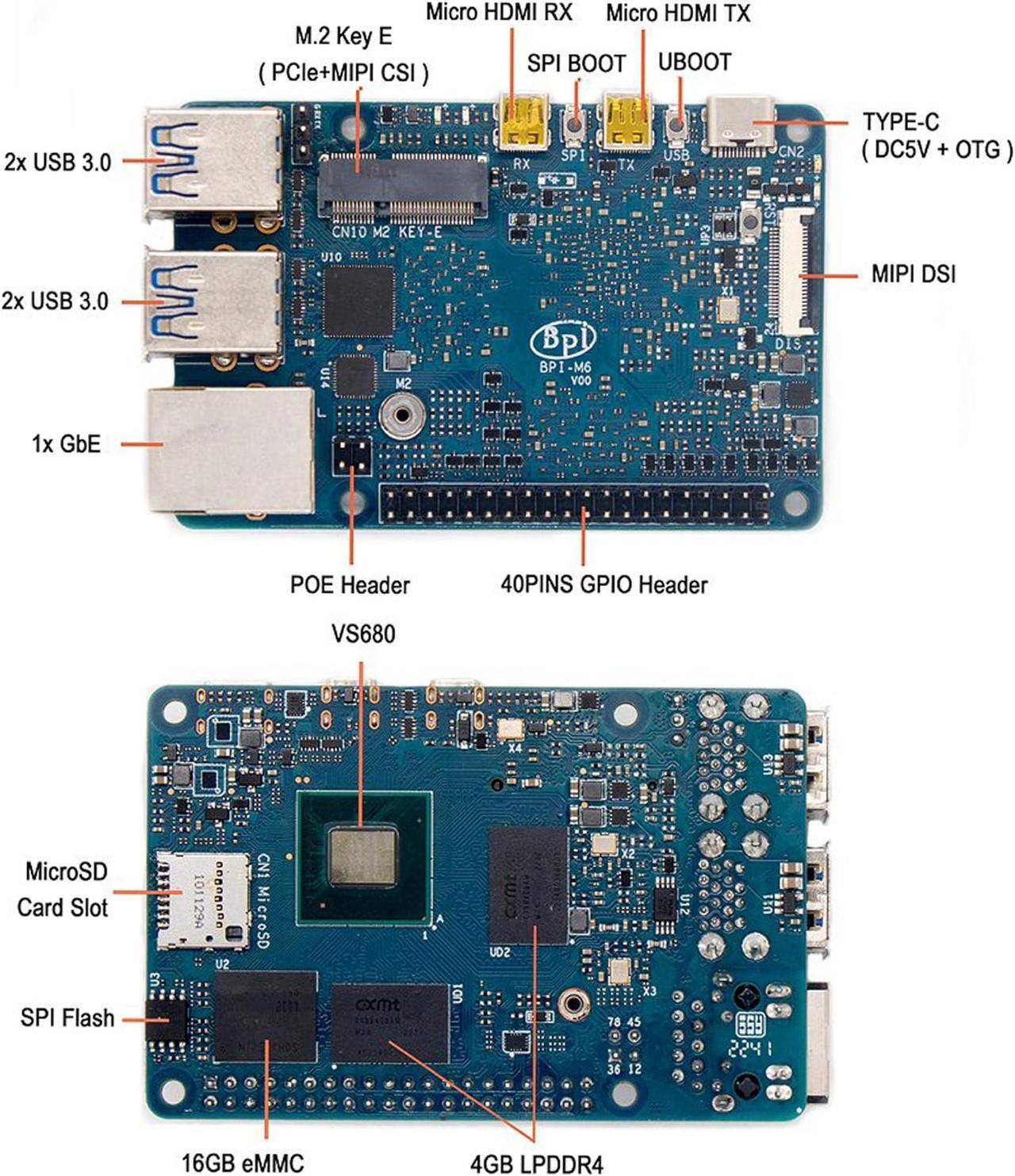

CPU: Synaptics VS680 quad-core Cortex-A73 ( 2.1GH z) and One Cortex-M3 processor
GPU: Imagination GE9920 GPU
NPU for AI: Up to 6. 75Tops
Memory: 4 GB LPDDR4
Storage: 16G eMMC flash, MicroSD slot with support for up to 256GB expansion and support for up to 64GB
Network: 10/100/1000 Mbit/s Ethernet, Optional WiFi USB dongle
Video: 1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID) out, and 1 HDMI in Port
Audio Output (s): 1 x HDMI digital output
Display: MIPI DSI interface
M. 2 interface: M. 2 Key E(PCIe + MIPI CSI)
USB ports: USB 3.0 PORT (x4)
GPIO:
40 Pin Header: GPIO (x28) and Power (+5V, + 3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
Switches: SPI boot and U-boot
LED: Power Status and Activity status
Power Source: 5 volt @3A TYPE C
Size & Weight: 92x60mm, 48g
OS: Android and Linux

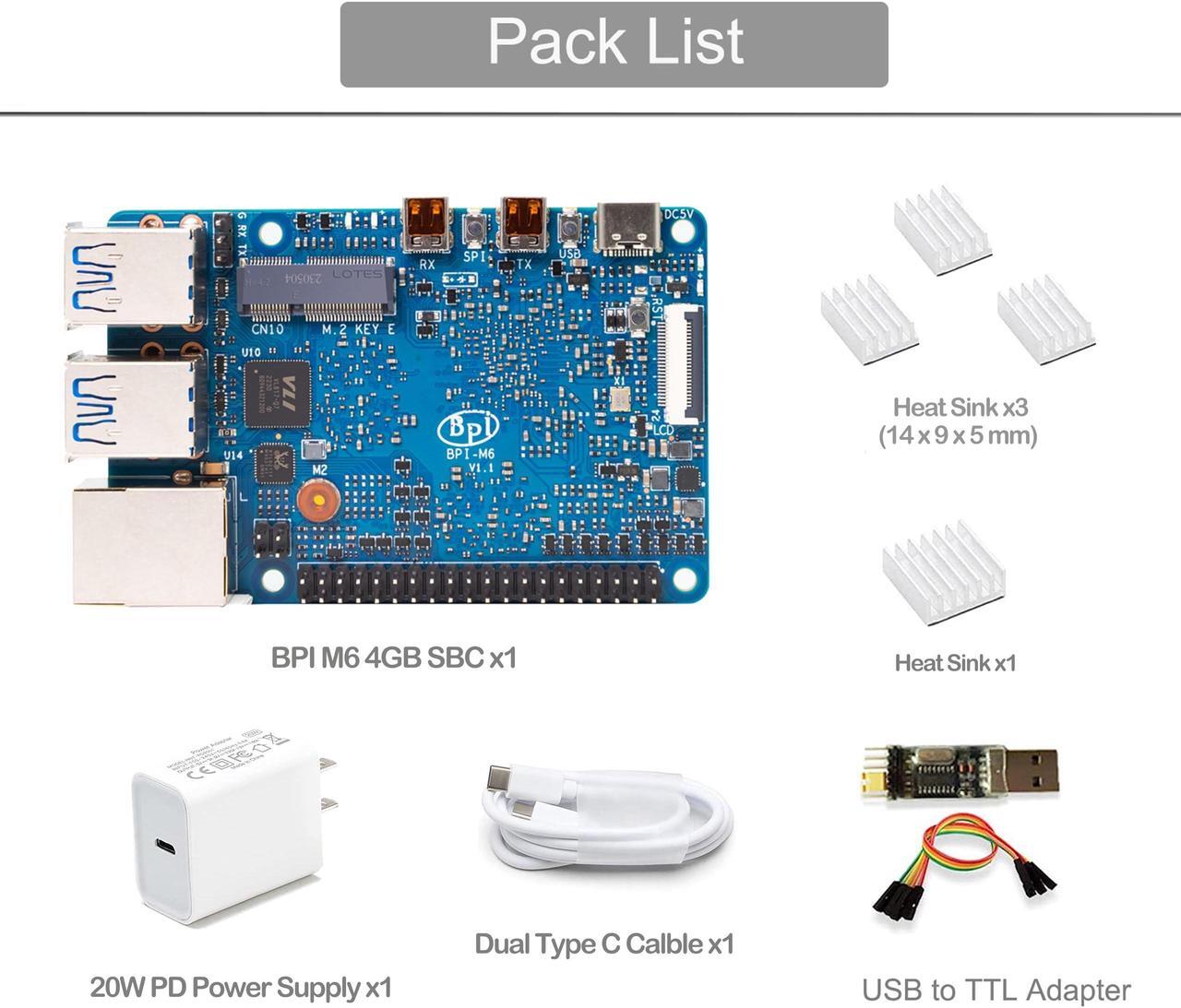

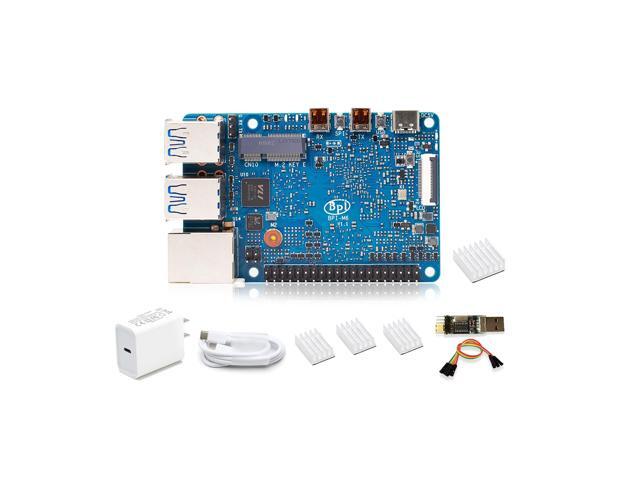

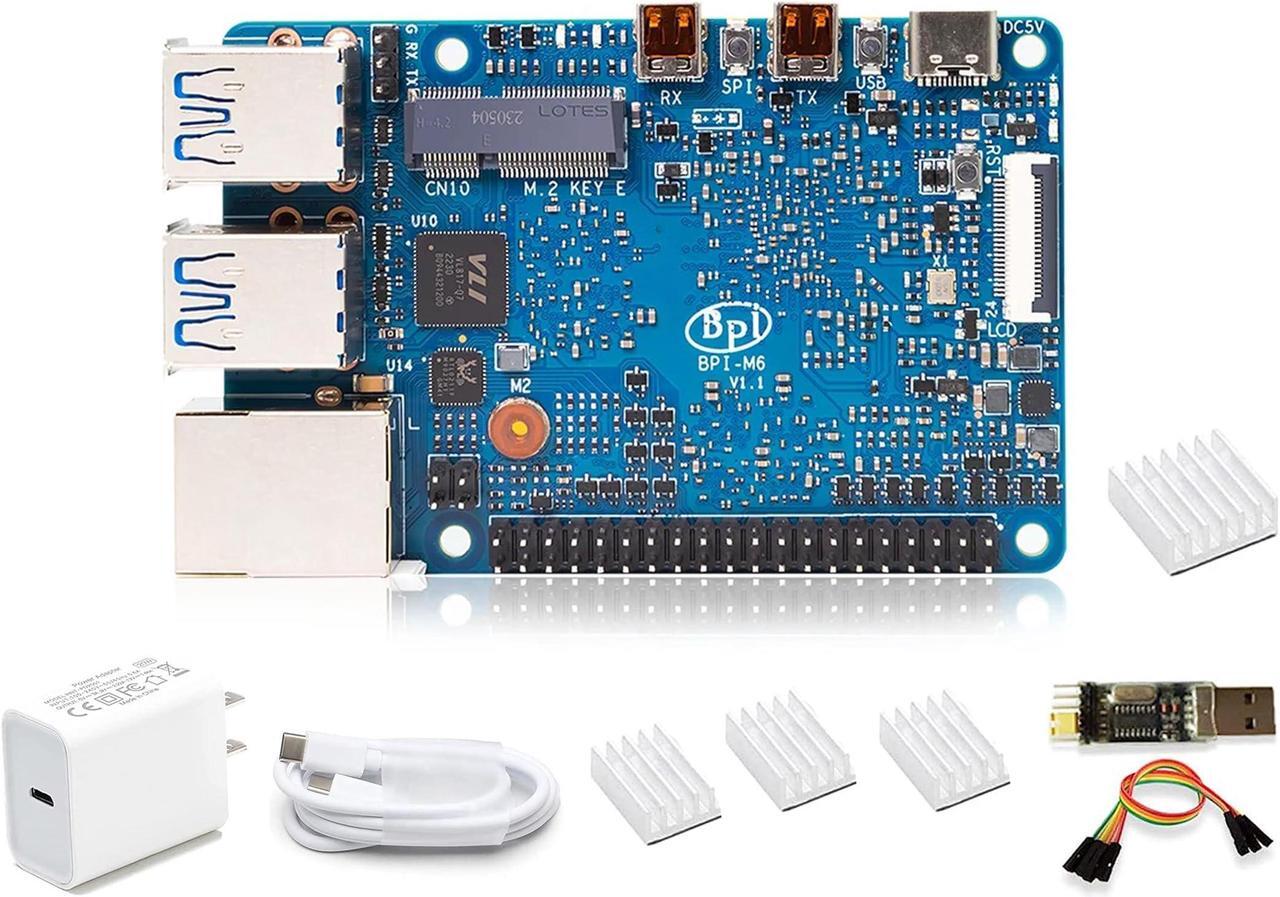

-Package Content-
BPI-M6 single board computer x1
Heat Sink x1
Serial Port x1
Dupont Line x1
5V 3A Power Supply x1
-Technical Support-
Getting Start: "wiki. banana-pi. org/Getting_Started_with_BPI-M6".
Please click "WayPonDEV" and ask a question.
Please leave the message "wpd#youyeetoo&com (#-@, &-
. )" or skype: monica_9122.
CPU: Synaptics VS680 quad-core Cortex-A73 ( 2.1GH z) and One Cortex-M3 processor
GPU: Imagination GE9920 GPU
NPU for AI: Up to 6. 75Tops
Memory: 4 GB LPDDR4
Storage: 16G eMMC flash, MicroSD slot with support for up to 256GB expansion and support for up to 64GB
Network: 10/100/1000 Mbit/s Ethernet, Optional WiFi USB dongle
Video: 1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID) out, and 1 HDMI in Port
Audio Output (s): 1 x HDMI digital output
Display: MIPI DSI interface
M. 2 interface: M. 2 Key E(PCIe + MIPI CSI)
USB ports: USB 3.0 PORT (x4)
GPIO:
40 Pin Header: GPIO (x28) and Power (+5V, + 3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
Switches: SPI boot and U-boot
LED: Power Status and Activity status
Power Source: 5 volt @3A TYPE C
Size & Weight: 92x60mm, 48g
OS: Android and Linux
-Package Content-
BPI-M6 single board computer x1
Heat Sink x1
Serial Port x1
Dupont Line x1
5V 3A Power Supply x1
-Technical Support-
Getting Start: "wiki. banana-pi. org/Getting_Started_with_BPI-M6".
Please click "WayPonDEV" and ask a question.
Please leave the message "wpd#youyeetoo&com (#-@, &-
. )" or skype: monica_9122.
