Banana Pi BPI-P2 Pro Linux Single Board Computer, Rockchip RK3308B Cortex-A35 Quad-core CPU, DDR3 512MB RAM 8GB eMMC, with POE Module and 100M LAN for IoT Programming, Support Debian Armbian
- [High-performance SoC] BPI-P2 Pro is open source single board computer based on RK3308B-S chip with Quad-core ARM Cortex-A35 CPU, 64bit 512MB DDR3 SDRAM 8GB eMMC, onboard WiFi (AP6256) & BT, 40 PIN + 12 PIN GPIO and 100M LAN, support PoE function.
- [Small Size, Rich interface] BPI-P2 Pro development board with 40 Pin+12 Pin GPIO support I2S, PCM, TDM, PDM, I2C, UART, SPDIF, HDMI ARC, etc. It can enable to meet the application of different products.Also with 1x 100M LAN port, 1xUSB 2.0, 1xType-C, 1x TF card Slot and 1x audio CODEC (ADCx8 and DACx2).
- [Widely Application] BPI-P2 Pro linux single board computer can be widely used to Maker DIY, IoT Smart Internet of Things, Intelligent speech recognition, Man-machine interface, Industrial control, Intelligent robot.
- [Developed based on Linux] BPI-P2 Pro linux IoT development board support Buildroot, Debian, Armbian and u-boot OS. The linux-5.10.110 kernel BSP Source code on github: "github.com/ArmSoM/armsom-p2pro-bsp"
- [
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

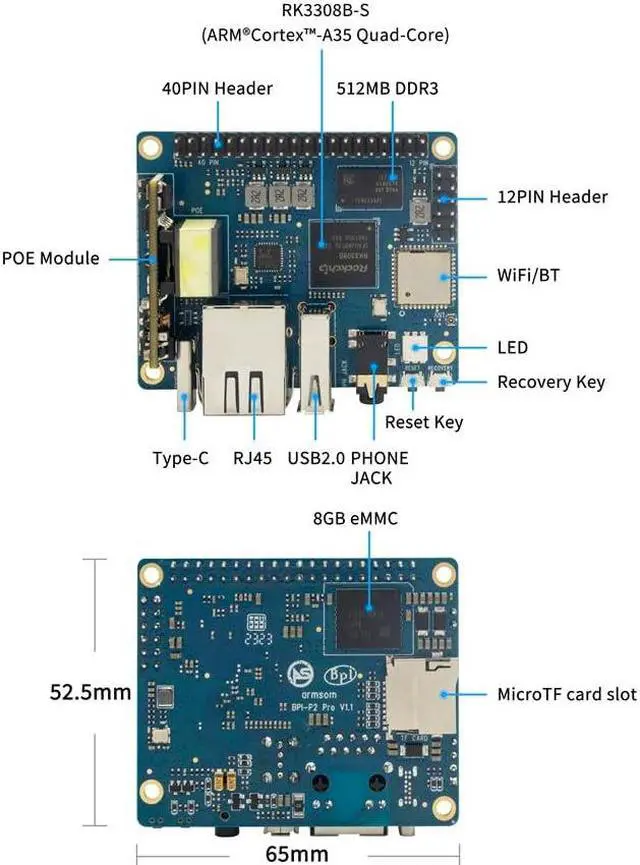

-Specification-
SOC: RockChip RK3308B-S
CPU: Quad-core ARM Cortex-A35
GPU: none
ROM: 512MB
RAM: 8GB eMMC
TF Card: TF card (Max 64GB)
Network: 100M LAN
PoE power: PoE function support, Output Voltage 5V, Output Power 10W
WiFi: (Built in AP6256)
Audio Output: With built-in audio CODEC, including ADCx8 and DACx2
Power Source: TYPE C 5V/2A or PoE power
USB: 1xUSB 2.0, 1xType-C
Others: Fan, RTC, LED, debug
Button: Power Button, Reset Button, Recovery Button, Root Button
Low-level peripherals: 40 Pin + 12 Pin
UART GPIO (1x3) pin: UART, ground
LED: Power led & Status led
Product size: 65mm X 52.5 mm
Weight: 30g
-Package Content-

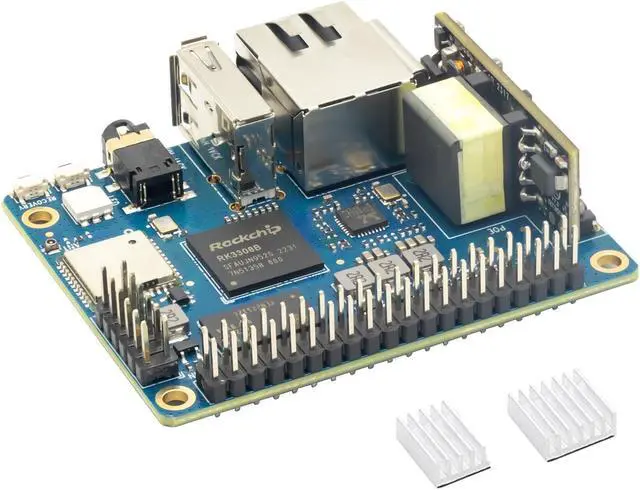

BPI-P2 Pro Single Board Computer x1
PoE Power Supply Module x1
Hest Sink x2
-Technical Support- Datesheet: "drive. google. com/file/d/1TsKFmItM1FJ-ziEvUkbcZxUsbaKYhsRq/view? usp=sharing" BPI-P2 PRO SCH, DXF, SMD
file: "drive. google. com/drive/folders/1QC-3x8bdQePFz1z70rapNwB2Jlb5orvh? usp=sharing" Please click "WayPonDEV" and ask a question. Please leave the message "wpd#youyeetoo&com (#-@, &-
. )" or skype: monica_9122.
SOC: RockChip RK3308B-S
CPU: Quad-core ARM Cortex-A35
GPU: none
ROM: 512MB
RAM: 8GB eMMC
TF Card: TF card (Max 64GB)
Network: 100M LAN
PoE power: PoE function support, Output Voltage 5V, Output Power 10W
WiFi: (Built in AP6256)
Audio Output: With built-in audio CODEC, including ADCx8 and DACx2
Power Source: TYPE C 5V/2A or PoE power
USB: 1xUSB 2.0, 1xType-C
Others: Fan, RTC, LED, debug
Button: Power Button, Reset Button, Recovery Button, Root Button
Low-level peripherals: 40 Pin + 12 Pin
UART GPIO (1x3) pin: UART, ground
LED: Power led & Status led
Product size: 65mm X 52.5 mm
Weight: 30g
-Package Content-
BPI-P2 Pro Single Board Computer x1
PoE Power Supply Module x1
Hest Sink x2
-Technical Support- Datesheet: "drive. google. com/file/d/1TsKFmItM1FJ-ziEvUkbcZxUsbaKYhsRq/view? usp=sharing" BPI-P2 PRO SCH, DXF, SMD
file: "drive. google. com/drive/folders/1QC-3x8bdQePFz1z70rapNwB2Jlb5orvh? usp=sharing" Please click "WayPonDEV" and ask a question. Please leave the message "wpd#youyeetoo&com (#-@, &-
. )" or skype: monica_9122.
