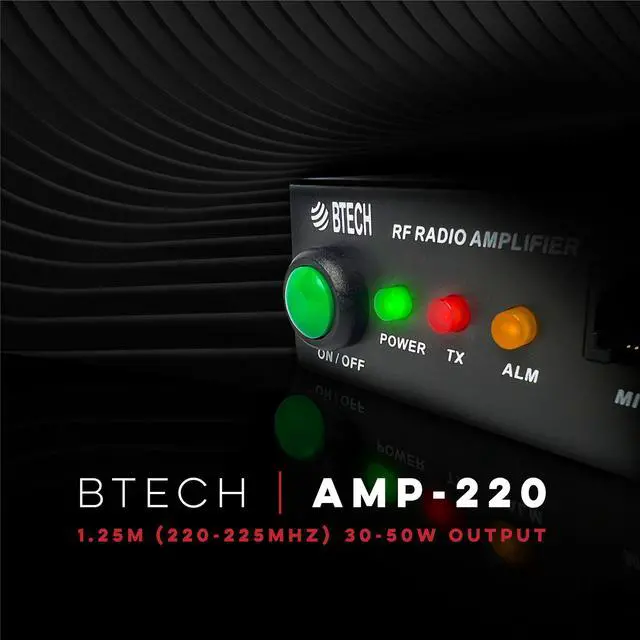

BTECH AMP-220 Amplifier | 30-50W Power Boost for 1.25M Band | Compatible with Handheld Radios | Amplifies Analog and Digital Modes | Ideal for Mobile, Field, & Home Use
- Enhanced Communication Range: Transform your handheld radio into a high-power device for mobile, field, or base use with the BTECH AMP-220, ensuring clear, extended range communication.

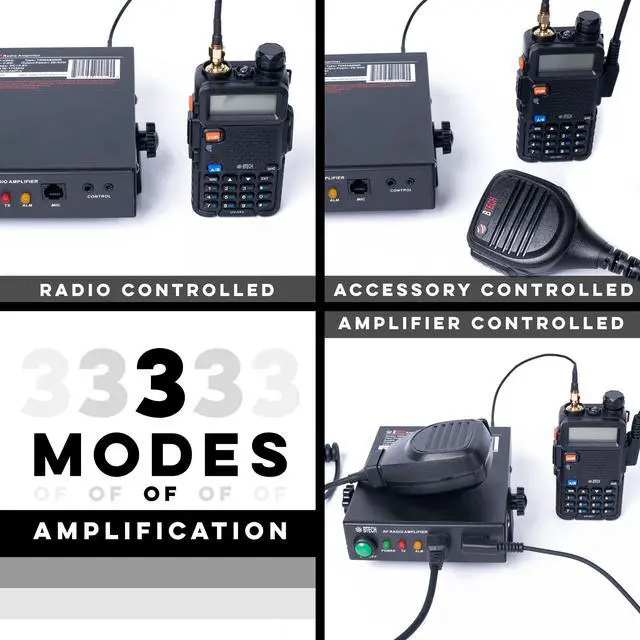

- Universal Compatibility: Seamlessly connects with popular handheld radio brands including BTECH, BaoFeng, Kenwood, Yaesu, ICOM, and Motorola, with a simple plug-and-play setup.
- Comprehensive Kit: Includes everything you need - Amplifier, Mounting Bracket, Cables, and a Speaker Microphone, for a hassle-free experience right out of the box.

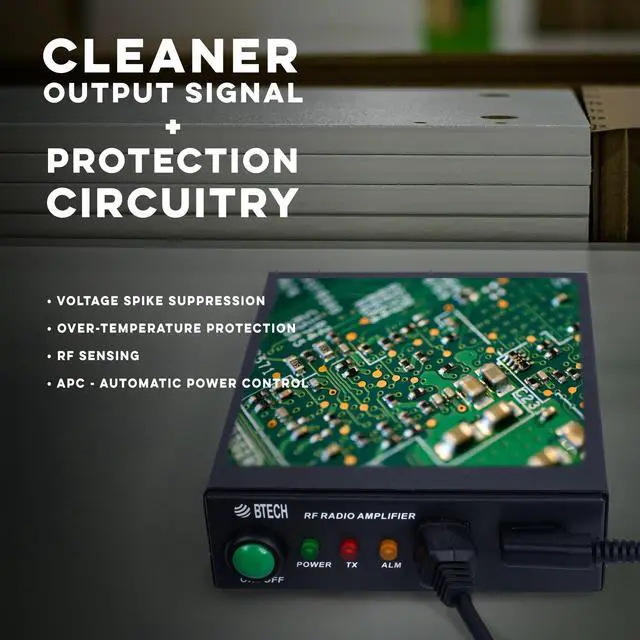

- Advanced Features: Features harmonic filters for cleaner output, protection circuitry for enhanced durability, and a built-in loudspeaker for clear audio, making it a versatile tool for any radio enthusiast.
- BTECH is proud to be in the USA, which allows you to have the best available local support for any issue that may arise. We only engineer and develop radio products. That focus allows you to have the best available radio, with the most feature
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
Technical
* Frequency range:
* AMP-220: 220 - 225 MHz
* Power supply: 13.8 VDC (+-15%), 5.5 A maximum
* Input RF power: 2 - 6W (+-10%)
* Output RF power: 30 - 50W
* Size: 5.5 -in D x 4.5 -in. W x 1.4 -in. H (40 mm D x 115 mm W x 36 mm H)
* Net weight: 1.8 lbs. (800 g)
The BTECH AMP-25 Series is designed to work with any BaoFeng or BTECH handheld transceivers, but it will also work with any handheld radio that outputs 2 W - 6 W with the appropriate cable. With the included Radio to Amplifier RF Cable, the amplifier will also work with Wouxun transceivers, some TYT transceivers, and some Kenwood transceivers. If the supplied cables do not connect to your radio, you will need to use adaptors or build cables with the appropriate connectors.
Your BTECH AMP-25 amplifier does not include an antenna. It is very important to not transmit without an antenna or dummy load connected to the ANT connector on the rear panel of the amplifier.
Transmitting without an antenna or dummy load may cause harm to the radio equipment.
When choosing an antenna, make sure that it is suitable for the bands you plan on transmitting and receiving on. For example, if you plan on transmitting on 145MHz, make sure that the antenna you select has an
SWR of 1.5: 1 or less on that frequency. Using an antenna with an
SWR greater than 1.5: 1 could damage the amplifier.
If you plan to use a magnetically-mounted (mag-mount) antennas, ensure that the antenna is grounded to a metal surface, such as a vehicle body. Magnetically-mounted antennas do not operate properly without a good ground.
Technical
Details
:* Frequency range:
* AMP-220: 220 - 225 MHz
* Power supply: 13.8 VDC (+-15%), 5.5 A maximum
* Input RF power: 2 - 6W (+-10%)
* Output RF power: 30 - 50W
* Size: 5.5 -in D x 4.5 -in. W x 1.4 -in. H (40 mm D x 115 mm W x 36 mm H)
* Net weight: 1.8 lbs. (800 g)
The BTECH AMP-25 Series is designed to work with any BaoFeng or BTECH handheld transceivers, but it will also work with any handheld radio that outputs 2 W - 6 W with the appropriate cable. With the included Radio to Amplifier RF Cable, the amplifier will also work with Wouxun transceivers, some TYT transceivers, and some Kenwood transceivers. If the supplied cables do not connect to your radio, you will need to use adaptors or build cables with the appropriate connectors.
Your BTECH AMP-25 amplifier does not include an antenna. It is very important to not transmit without an antenna or dummy load connected to the ANT connector on the rear panel of the amplifier.
Transmitting without an antenna or dummy load may cause harm to the radio equipment.
When choosing an antenna, make sure that it is suitable for the bands you plan on transmitting and receiving on. For example, if you plan on transmitting on 145MHz, make sure that the antenna you select has an
SWR of 1.5: 1 or less on that frequency. Using an antenna with an
SWR greater than 1.5: 1 could damage the amplifier.
If you plan to use a magnetically-mounted (mag-mount) antennas, ensure that the antenna is grounded to a metal surface, such as a vehicle body. Magnetically-mounted antennas do not operate properly without a good ground.
