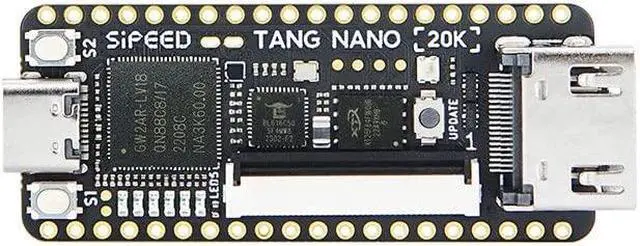

Main image of Sipeed Tang Nano 20K GW2AR-18 QN88 FPGA Development Board with 64Mbits SDRAM 828K Block SRAM Linux RISCV Single Board Computer for Retro Game Console Support microSD RGB LCD JTAG Port

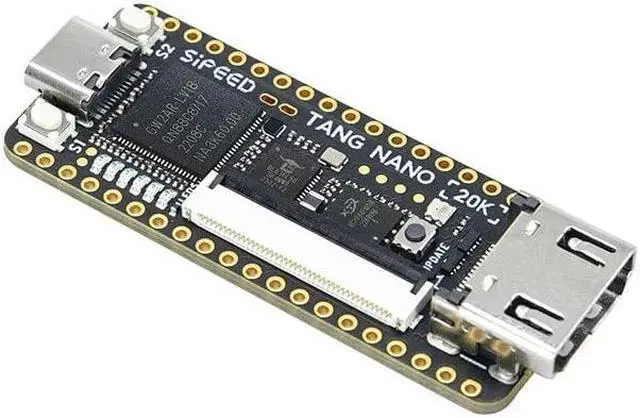

Alt view image 2 of 5 - Sipeed Tang Nano 20K GW2AR-18 QN88 FPGA Development Board with 64Mbits SDRAM 828K Block SRAM Linux RISCV Single Board Computer for Retro Game Console Support microSD RGB LCD JTAG Port

Alt view image 3 of 5 - Sipeed Tang Nano 20K GW2AR-18 QN88 FPGA Development Board with 64Mbits SDRAM 828K Block SRAM Linux RISCV Single Board Computer for Retro Game Console Support microSD RGB LCD JTAG Port

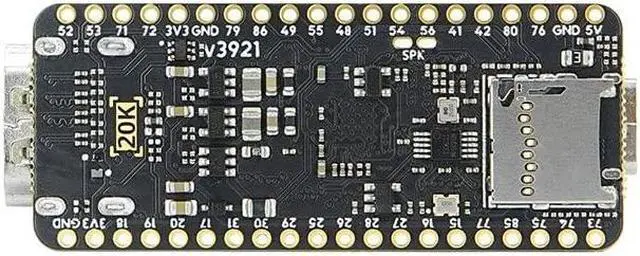

Alt view image 4 of 5 - Sipeed Tang Nano 20K GW2AR-18 QN88 FPGA Development Board with 64Mbits SDRAM 828K Block SRAM Linux RISCV Single Board Computer for Retro Game Console Support microSD RGB LCD JTAG Port

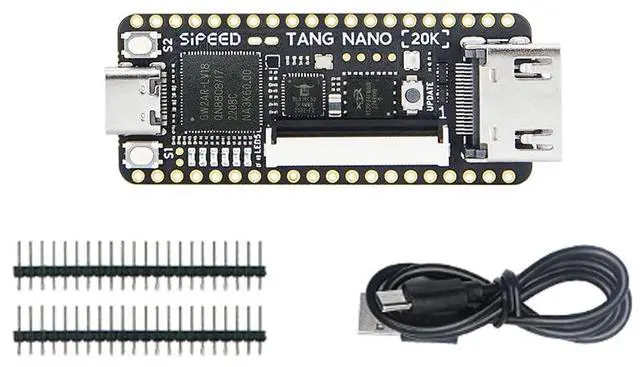

Alt view image 5 of 5 - Sipeed Tang Nano 20K GW2AR-18 QN88 FPGA Development Board with 64Mbits SDRAM 828K Block SRAM Linux RISCV Single Board Computer for Retro Game Console Support microSD RGB LCD JTAG Port

Shop All Schneider Electric SA Products | Visit DSKL Store

Sipeed Tang Nano 20K GW2AR-18 QN88 FPGA Development Board with 64Mbits SDRAM 828K Block SRAM Linux RISCV Single Board Computer for Retro Game Console Support microSD RGB LCD JTAG Port

[FPGA Chip] GW2AR-18 QN88 FPGA Chip containing 20736 LUT4 logic cells and 15552 Filp-Flops.There are 2 PLL in this FPGA chip, and many DSP units supporting 18 bit x 18 bit multiplication
[Onboard Debugger ] Sipeed Tang Nano 20K Development Board support JTAG for FPGA, USB to UART for FPGA,USB to SPI for FPGA communication, Control MS5351 generate frequency
[USB2.0 HS interface] The 27MHz crystal generates the clock for HDMI display, onboard MS5351 clock generating chip also provides mutiple clocks.Support Serial communication, high-speed SPI reception.
[Application scenarios] Tang Nano 20K Open source Development Board supports game console emulators, drives RGB screens, multiple display outputs, 20K LUT4, RISC-V soft-core experiments.
[Wiki] "https://dl.sipeed.com/shareURL/TANG/Nano_20K/1_Datasheet";Any after-Sales Privems, Please Contact us by click "Waypondev" store and ask a question or leave the message in our forum by "forum.youyeetoo .com/".

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

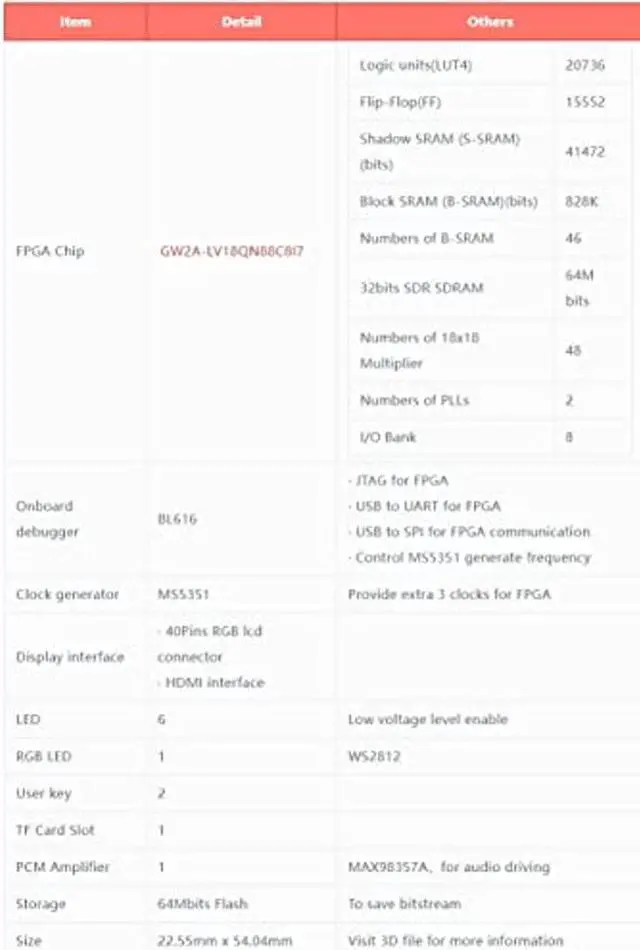

-Specification-
FPGA Chip: GW2A-LV18QN88C8I7
Logic units (LUT4): 20736
Flip-Flop (FF): 15552
Shadow SRAM (S-SRAM) (bits): 41472
Block SRAM (B-SRAM) (bits): 828K
Numbers of 18x18 Multiplier: 48
Onboard debugger: BL616
Clock generator: MS5351, provide extra 3 clocks for FPGA
Display interface: 40Pins RGB lcd connector/ HDMI interface
LED: 6, Low voltage level enable
RGB LED: 1, WS2812
User key: 2
TF Card Slot: 1
PCM Amplifier: 1, MAX98357A, for audio driving
Storage: 64Mbits Flash, To save bitstream
Size: 22.55 mm x 54.04 mm x 5mm
