$79.99
Meet Your Seller
VSDISPLAY 17" 19" 1280x1024 6Pin LED Backlight 30Pin LVDS LCD VGA DVI Audio Controlller Kit, Fit to Modification LCD M170ETN01 1 M170ETN01.3 M190ETN01.0 G190ETN01.0
- Compatible work with DIY modification, fit for machine which screen type is M170ETN01 1 , M170ETN01.3 ,M190ETN01.0, G190ETN01.0,,and so on .
- Compatible Work With: 17inch 19inch 1280x1024 1280x1024 6Pin LED Backlight 30Pin LVDS LCD Screen , Board type name :M.NT68676.3 (new version) ,Board Size:139mm x 53mm x 17mm
- Video Input: DVI VGA, Audio Input: ,Audio Output: Speaker Connector ,Can work with : VSDISPLAY Speaker 8ohm 2W 70mmx33mmx15mm 4Pin Cable for LCD Controller Board M.NT68676.3 (new version)
- Board Power Adapter Recommond sepc.: 12Vdc more than 2A, 5.5mmx2.1mm Connector (Help to notice there is no power adapter in the packing list)
- Packing list :1× VGA DVI LCD Controller Board M.NT68676.3 (new version) ,1× Inverter Board, 1× LVDS Signal Cable, 1× Keyboard With Cable.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

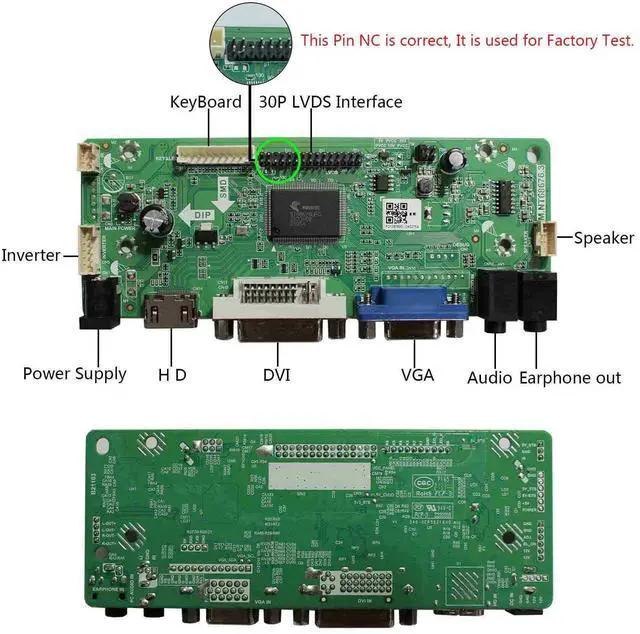

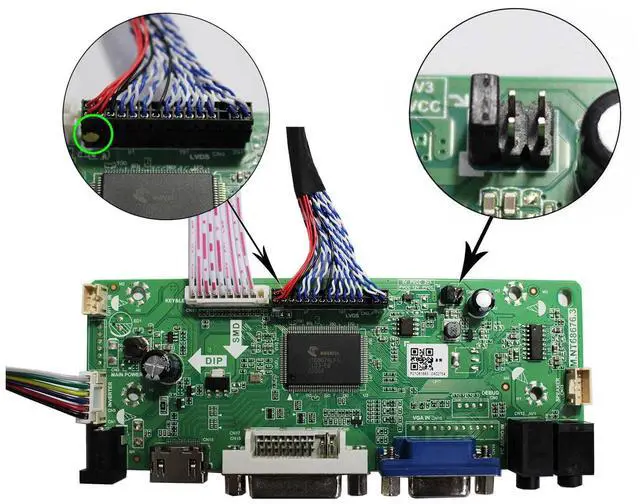

LCD Controller Board:
DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
Audio Input:
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 139mm x 53mm x 17mm
Compatible Work With:
17inch 1280x1024
M170ETN 01.1 M170ETN 01.3
19inch 1280x1024
M190ETN 01.0 G190ETN 01.0

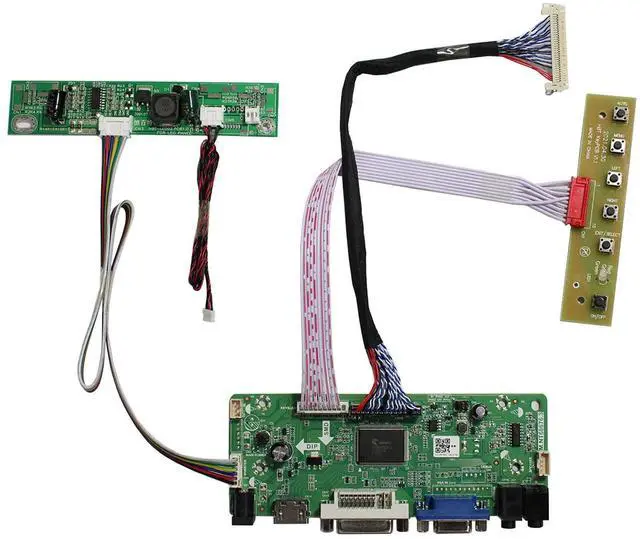

Packing list:
1× VGA DVI LCD Controller Board M. NT 68676.3 (new version)
1× Inverter Board
1× LVDS Signal Cable
1× Keyboard With Cable
DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
Audio Input:
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 139mm x 53mm x 17mm
Compatible Work With:
17inch 1280x1024
M170ETN 01.1 M170ETN 01.3
19inch 1280x1024
M190ETN 01.0 G190ETN 01.0
Packing list:
1× VGA DVI LCD Controller Board M. NT 68676.3 (new version)
1× Inverter Board
1× LVDS Signal Cable
1× Keyboard With Cable
