A Pair 2 Pack Multi-Mode Dual SC Fiber Gigabit Fast Ethernet Media Converter, Mini 1x 10/100/1000Base-T RJ45 to 1000Base-SC Slot Converter Transceiver, up to 2KM 850-1310-nm, AC 100V~240V
- Product List: 2x Multi-Mode Gigabit Dual SC Ethernet Media Converter, 2x DC Power Adapter, 1x Product Manual. Dual SC type Multi-Mode fiber port connects over distances of up to 2km
- Fiber Optical Port: 1.25Gbps, Fiber Type MMF 850nm wavelength, 2x RJ45 Port: CAT5E/CAT6 10M/100M/1000M, Cable Type: UTP/STP Cat.5e for 100 meters. Supports jumbo frame size 9K byte,Power Supply: 5V-1A, UL Certified, Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.
- Equiped with high-quality chip to ensure stability and Ultra-low time-delay data transmission. Complies with IEEE 802.3/802.3u/802.3z/802.3ab, 10/100/1000Base-TX/FX, Supports wide temperature range from 0°C to 60°C.
- 10/1000Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode; Wall mountable: Its compact modular design facilitates deployment in a narrow desktop location to save space.
- Modulization configuration design, support hot-swappable, plug and play. And LED indicators for
+
+
Overview
Specs
Reviews

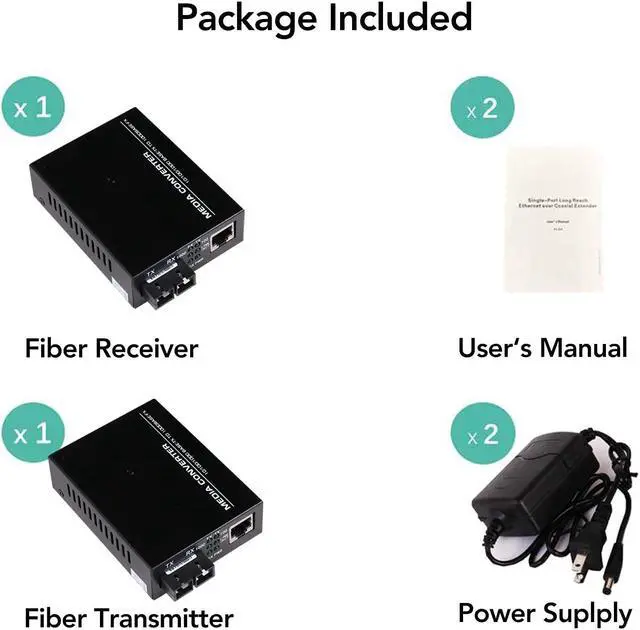

Product Include
2x Dual SC Gigabit Ethernet Fiber Media Converter
2x DC Power Adapter
1x Product Manual, Multi-Language Quick Installation Guide
Feature Introduction
1.
Optical Port Data Rate: 1.25G bps, 10/100/1000Base-Tx to 1000Base-LX Dual SC Fiber Gigabit Media Converter.
2.

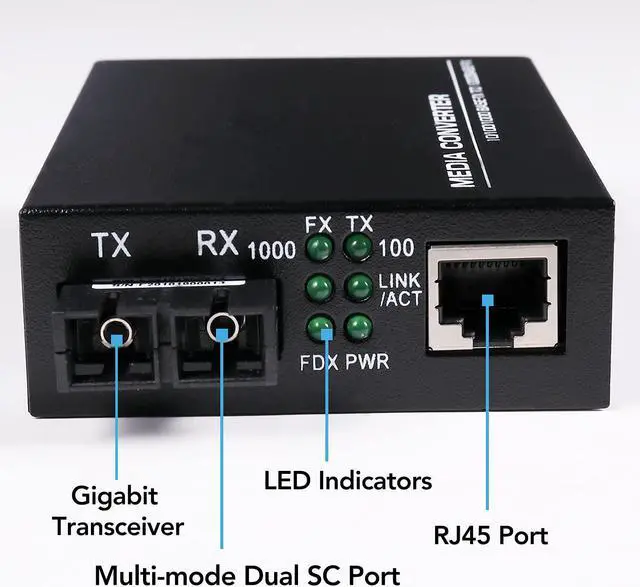

Interface: Dual SC Port+RJ45 Port, RJ45
Port Data Rate: 10/100/1000M auto-negotiation.
3.
Fiber Type: Multi-Mode, Fiber
Connector: Dual SC Fiber, Wavelength: 1310nm, Reach: 20km, Included
Power Supply Weight: 0.35 kg.
Excellent Function
1.
Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life.
2. Lightning protection. Strong anti-interference ability. High-speed and stability signal conversion.
3. Standalone design with simple plug-and-play set-up. Compact size provide more flexible installation options.
Dimensions: 95 x 72 x 27mm (D xWxH).
4.
Power Adapter Safety standards: UL/EN60950 GB4943.
Output voltage: 5V DC/1A, Power Dissipation 3 watts, External
Power: AC 100V~240V.
5. High-quality Conversion Chip & Easy Installation, Operating
temperature: 0°C to 60°C.
Storage temperature: -20°C to 70°C.
Humidity: 5% to 90% RH.
Wide Applications
1. Extend or bridge networks using fiber cable.
2. Provide connectivity to users in an isolated area of a large complex or in a separate building.
3. Ideal for secure connections required by government or corporations where EMI is not acceptable.

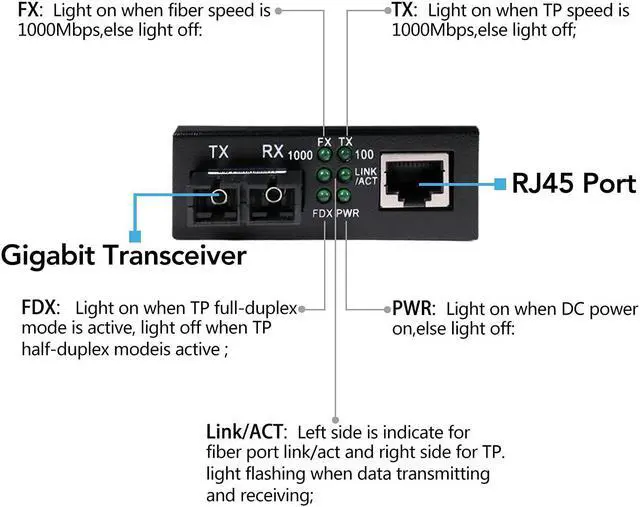

LED Indicator
1.
FP: Light on when fiber speed is 1000Mbps, else light off.
2.
TP: Light on when TP speed is 1000Mbps, else light off.
3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving.
4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active.
5.
PWR: Light on when DC power on, else light off.
2x Dual SC Gigabit Ethernet Fiber Media Converter
2x DC Power Adapter
1x Product Manual, Multi-Language Quick Installation Guide
Feature Introduction
1.
Optical Port Data Rate: 1.25G bps, 10/100/1000Base-Tx to 1000Base-LX Dual SC Fiber Gigabit Media Converter.
2.
Interface: Dual SC Port+RJ45 Port, RJ45
Port Data Rate: 10/100/1000M auto-negotiation.
3.
Fiber Type: Multi-Mode, Fiber
Connector: Dual SC Fiber, Wavelength: 1310nm, Reach: 20km, Included
Power Supply Weight: 0.35 kg.
Excellent Function
1.
Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life.
2. Lightning protection. Strong anti-interference ability. High-speed and stability signal conversion.
3. Standalone design with simple plug-and-play set-up. Compact size provide more flexible installation options.
Dimensions: 95 x 72 x 27mm (D xWxH).
4.
Power Adapter Safety standards: UL/EN60950 GB4943.
Output voltage: 5V DC/1A, Power Dissipation 3 watts, External
Power: AC 100V~240V.
5. High-quality Conversion Chip & Easy Installation, Operating
temperature: 0°C to 60°C.
Storage temperature: -20°C to 70°C.
Humidity: 5% to 90% RH.
Wide Applications
1. Extend or bridge networks using fiber cable.
2. Provide connectivity to users in an isolated area of a large complex or in a separate building.
3. Ideal for secure connections required by government or corporations where EMI is not acceptable.
LED Indicator
1.
FP: Light on when fiber speed is 1000Mbps, else light off.
2.
TP: Light on when TP speed is 1000Mbps, else light off.
3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving.
4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active.
5.
PWR: Light on when DC power on, else light off.
