MikroTik CWDM-MUX8A
- The CWDM is a passive MUX/DEMUX unit, which allows to combine up to eight fiber links into one, to simplify and reduce the cost of long distance fiber installations
- You can use a single optical fiber cable to create up to eight independent 1.25Gbps SFP (up to 40km) or 10Gbps SFP+ (up to 10km) links.
- Enables up to 8 channels for transmitting and receiving signals, with the wavelengths from 1470 nm to 1610 nm
- The 8-port CWDM MUX/DEMUX unit supports both SFP and SFP+ which can be mixed at the same time
- CWDM MUX/DEMUX modules are passive devices and there is no power source required
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SKU: CWDM-MUX8A

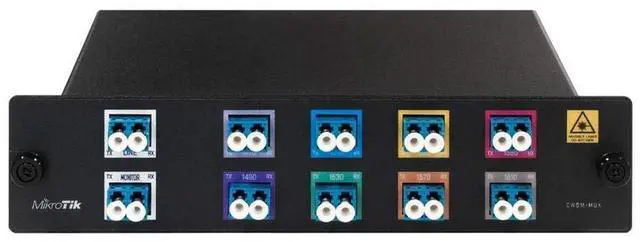

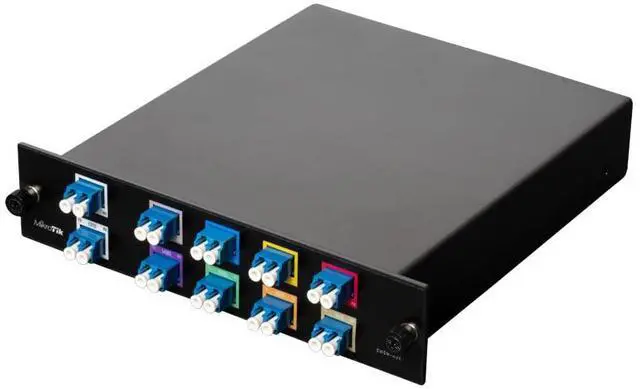

Mikrotik CWDM-MUX8A passive Mux/Demux with 8 port supporting SFP and SFP+
A passive MUX/DEMUX unit that allows the combining of up to eight fiber links into one. And you can split it up again later! Upgraded version featuring a handy EXP/1310 expansion port!
The CWDM is a passive MUX/DEMUX unit, which allows to a combination of up to eight fiber links into one, to simplify and reduce the cost of long-distance fiber installations. At the other location, the combined line is split back up again, so that instead of eight long fiber lines, you would only need one. The Coarse Wavelength-Division Multiplexing (CWDM) technology offers a solution that will increase the capacity of existing fiber infrastructure by enabling multiple channels/wavelengths over the same fiber cabling and will reduce costs for a new fiber optic deployment.
Enables up to 8 channels for transmitting and receiving signals, with wavelengths from 1470 nm to 1610 nm. A duplex fiber cable links two dual-fiber CWDM MUX/DEMUXs units, supporting the same wavelengths installed on each end of the fiber optic network. In each CWDM unit is a filter, which is tuned for a specific wavelength which is why it is important to connect the correct wavelength to the corresponding port. You can use a single optical fiber cable to create up to eight independent 1.25G bps SFP (up to 40km) or 10Gbps SFP+ (up to 10km) links, offering more affordable alternative to installing more fiber or leasing additional fibers. You can even use 1.25G bps modules and 10Gbps modules at the same time.
CWDM MUX/DEMUX modules are passive devices and there is no power source required.
Mikrotik CWDM-MUX8A passive Mux/Demux with 8 port supporting SFP and SFP+
A passive MUX/DEMUX unit that allows the combining of up to eight fiber links into one. And you can split it up again later! Upgraded version featuring a handy EXP/1310 expansion port!
The CWDM is a passive MUX/DEMUX unit, which allows to a combination of up to eight fiber links into one, to simplify and reduce the cost of long-distance fiber installations. At the other location, the combined line is split back up again, so that instead of eight long fiber lines, you would only need one. The Coarse Wavelength-Division Multiplexing (CWDM) technology offers a solution that will increase the capacity of existing fiber infrastructure by enabling multiple channels/wavelengths over the same fiber cabling and will reduce costs for a new fiber optic deployment.
Enables up to 8 channels for transmitting and receiving signals, with wavelengths from 1470 nm to 1610 nm. A duplex fiber cable links two dual-fiber CWDM MUX/DEMUXs units, supporting the same wavelengths installed on each end of the fiber optic network. In each CWDM unit is a filter, which is tuned for a specific wavelength which is why it is important to connect the correct wavelength to the corresponding port. You can use a single optical fiber cable to create up to eight independent 1.25G bps SFP (up to 40km) or 10Gbps SFP+ (up to 10km) links, offering more affordable alternative to installing more fiber or leasing additional fibers. You can even use 1.25G bps modules and 10Gbps modules at the same time.
CWDM MUX/DEMUX modules are passive devices and there is no power source required.
