TBS5302 1080P USB3.0 HDMI Video Capture Card with HDMI 1.4 Support Windows 8/10

1080P 60FPS: The HD video capture card can support HDCP 1080P with 60FPS, it is very suitable to use it for game live streaming.

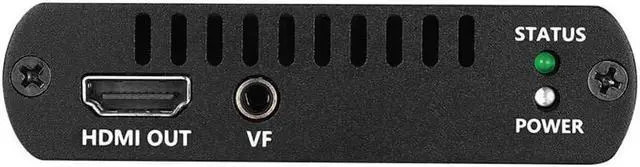

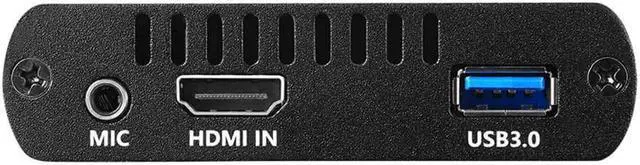

3.5MM AUDIO SOURCE: also offers a separate 3.5 mm audio input for accompanying audio or voice-overs, and a HDMI loop out port for connecting another HDMI device when you are making live stream
USB3.0: high speed transmission port,let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily
COMPATIBLE WITH WINDOWS 8/10: Support with Windows 8/10 and compatible with many USB3.0 chipset(Intel, Renesas, ASMedia, FrescoLogic), PC le Gen1.1 x1 expansion via USB3.0 interface. The HD video capture meets UVC and UAC standard without having to install drivers and settings , the real Pnp, easy to use
COMPATIBLE WITH 1080P 720P HDMI DEVICE: such as Wii U, PS4, PS3, Xbox One, Xbox 360, Wii, Nintendo Switch, DVD, camera, ZOSI security camera, DSLR and set top box etc

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Specification:
Interface: USB 3.0
Video input: HMDI 1.4
Input Resolution: 1920x1080_P/I 60hz; 1920x1080_P/I 50hz; 1920x1080_P 30hz; 1920x1080_P 25hz;
1920x1080_P 24hz; 720_P 60hz; 720P 50hz; 576_P/I; 480_P/I
Video Output: 1920x1080 60fps
Audio input: HDMI embedded
3.5 mm microphone
Audio output: HDMI loop out
Earphone, loudspeaker
Video Capture: Standard of UVC and UAC
Application: Windows Media Encoder; Adobe Flash Media Encoder; RealRpoducer Plus;
VLC Media Player; Wire cast; Pot Player; OBS
Software compatible:
Windows Media Encoder
Adobe Flash Media Live Encoder (windows)
Real Producer Plus (Windows)
VLC (Windows)
Quick Time Broadcaster (Windows)
Quick Time Player (Windows)
Wire Cast (Windows )
Pot Player ( Windows)
Consumption: less than 2.5W
Temperature: 0-50
Storage temperature: -20
Storage humidity: 5%-90%
OS: Supports Windows 10 / Windows 8.1 / (Windows 7 (SP1) need install driver) Linux (kernel version 2.6. 38 and above)
PC: Supports Intel Core i5 -4400 3.10 GHz + NVIDIA GeForce GTX or more advanced
Laptop: Supports Intel Core i7-4810 OMQ + NVIDIA GeForce GTX 870M or more advanced
RAM: 8 GB
Mobile phone: Android phone Only support USB 2.0, not supports USB 3.0 (because Adroid UVC driver not supports USB 3.0 )
