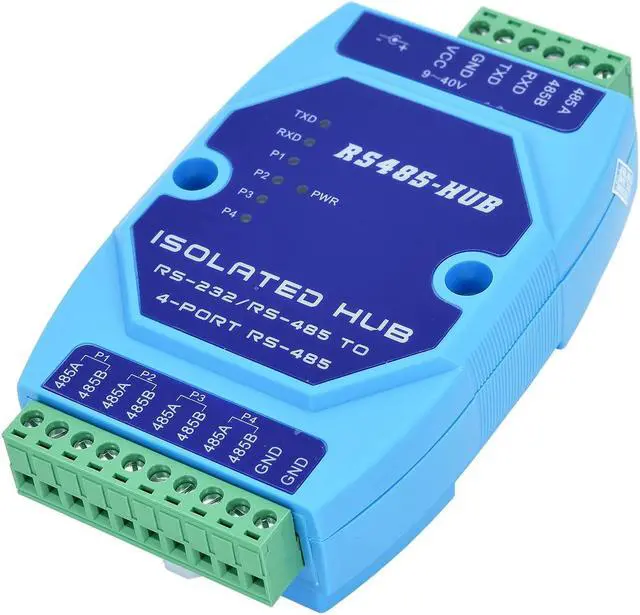

    ATNEDCVH RS232 RS485 to 4 Ports RS485 Repeater Optical Isolator Industrial Grade, RS485 hub 4 in 1 Out Signal Amplifier Anti-Interference (Blue)

    Be the first to review this product...

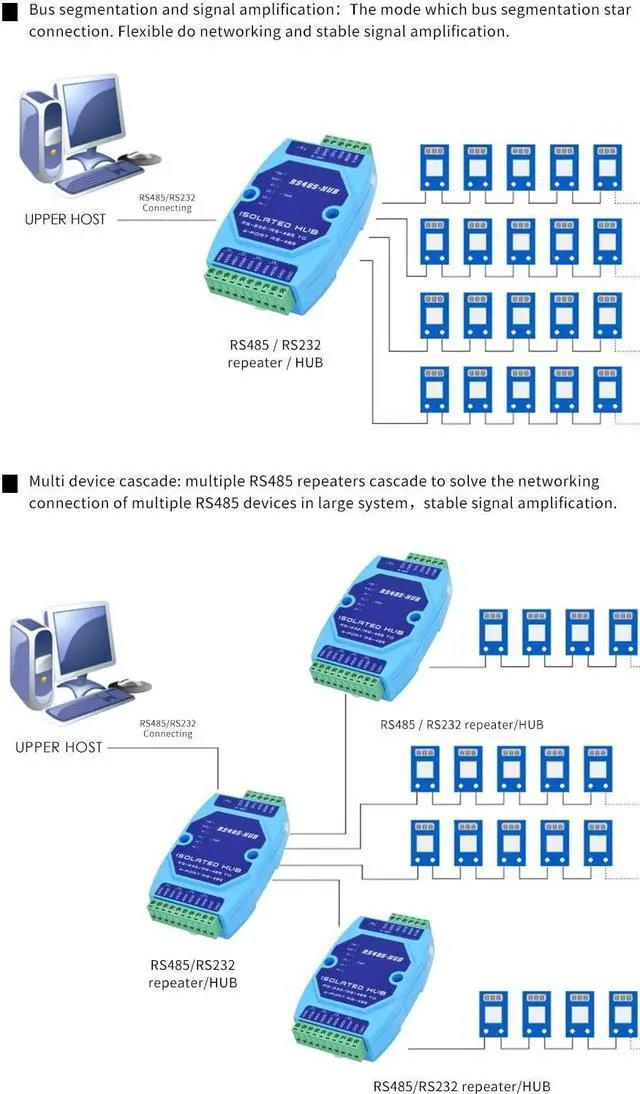

    • RS232 RS485 to 4 Ports RS485 repeater/hub. This is a RS485 repeater / hub specially designed for industrial automation communication. It solves the networking of RS485 bus star structure and the requirements of RS485 large system in complex electromagnetic environment.
    • It supports transmission rate up to 115.2kbps, and adopts optical isolation technology in the RS485 terminal. High performance transient voltage suppressor, 600W protect against surges circuit,Providing 1000V isolation voltage can effectively ESD protection. It effectively optocoupler isolate the RS485 signal from the main and auxiliary ends, and has 4 independent isolated auxiliary stations. Effectively do power supply isolating between the main port and the auxiliary port.
    • The built-in conversion processor automatically senses the direction of data flow. Automatically judge the channel status, automatically switch the enabling control circuit,It is easy to solve the delay problem of RS485 transceiver co
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Product Name: RS232/RS485 to 4 ports RS485 repeater / hub
    Product model: RS485H4P
    Compatible with RS232, RS485 TIA / EIA standard
    Automatic sending and receiving data: RS485 three wire system (TXD, RXD, GND) communication

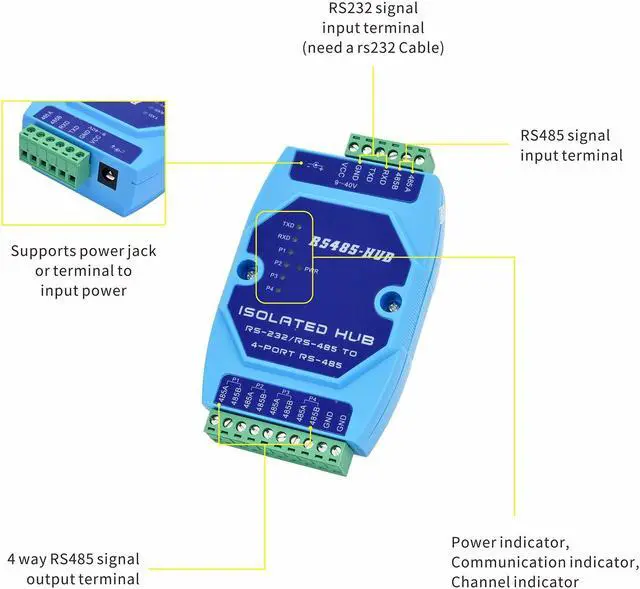

    Input interface: 1 channel RS232/ RS485
    Output interface: 4 channel RS485
    Communication rate: 300bps- 115.2 kbps (adaptive)
    Working power supply: DC9-40v 500mA
    Load capacity: each RS485 port can connect 128 devices
    Communication distance: 3000m (each interface)
    Work indicator: power indicator, data direction indicator, channel indicator
    Working mode: asynchronous half duplex (RS485 two-way communication)
    Photoelectric isolation: isolation voltage 2.5 kvrms/500v DC insulation, isolation of DC / DC module. 600W surge protection, 15kV ESD protection

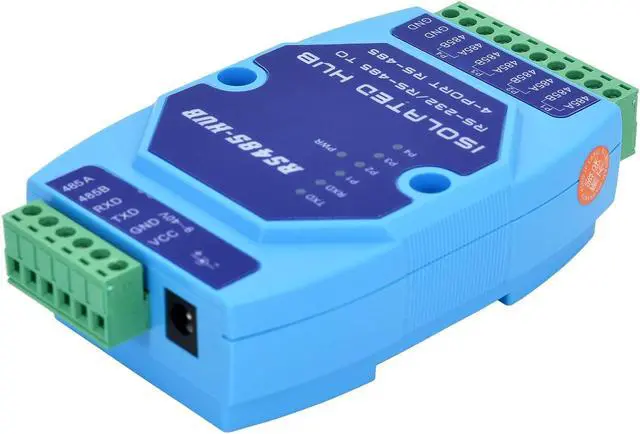

    Electrical interface: RS232, RS485 (6, 10 core industrial terminal), power supply ( 2.5 jack)
    Transmission Cable: twisted pair or shielded cable

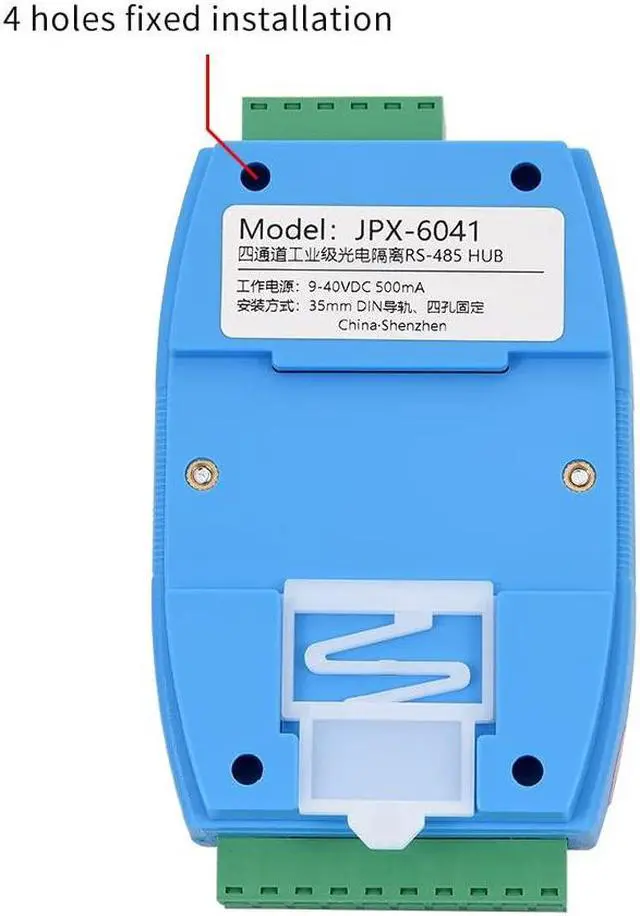

    Installation mode: 35mm DIN rail installation, or 4-hole wall hanging, or other suitable installation mode.
    Product size: 122 * 72 * 33 mm / 4.8 * 2.83 * 1.3 in
    Working environment: temperature - 40 - 85, relative humidity > 95% RH
    What's in the box: RS485H4P*1pcs, 12V/1A DC power adapter*1pcs
