Main image of FanyiTek 10.3 inch 1920x720 850nit IPS Wide Bar LCD Screen and H/D VGA DVI Audio LVDs Controller Board,for Sub Monitor,Car Gauge Display,

Alt view image 2 of 4 - FanyiTek 10.3 inch 1920x720 850nit IPS Wide Bar LCD Screen and H/D VGA DVI Audio LVDs Controller Board,for Sub Monitor,Car Gauge Display,

Alt view image 3 of 4 - FanyiTek 10.3 inch 1920x720 850nit IPS Wide Bar LCD Screen and H/D VGA DVI Audio LVDs Controller Board,for Sub Monitor,Car Gauge Display,

Alt view image 4 of 4 - FanyiTek 10.3 inch 1920x720 850nit IPS Wide Bar LCD Screen and H/D VGA DVI Audio LVDs Controller Board,for Sub Monitor,Car Gauge Display,

Shop All V2 Technologies Products | Visit Riveira Store

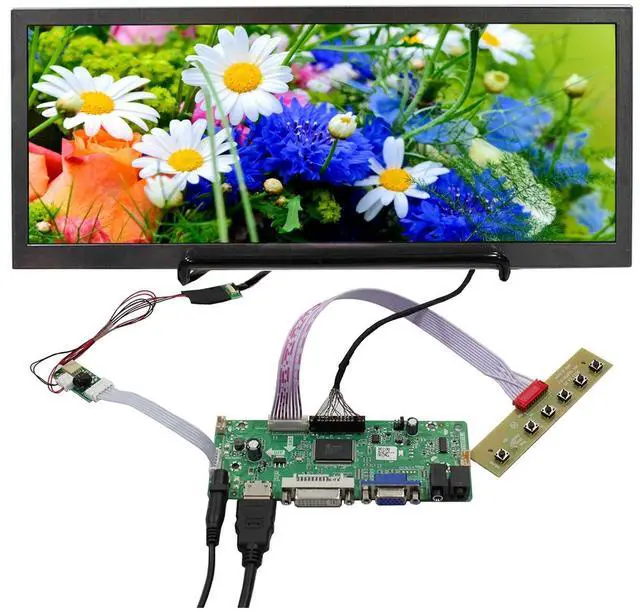

FanyiTek 10.3 inch 1920x720 850nit IPS Wide Bar LCD Screen and H/D VGA DVI Audio LVDs Controller Board,for Sub Monitor,Car Gauge Display,

10.3" Bar IPS LCD screen720P Full resolution ,850nit high brightness, display area 243.691.4 (HVmm), Contrast Ratio 1000:1 ,with full viewing angle ,wled backlight ,lvds signal interface.
LCD Driver Board Video input: H/D VGA DVI,Audio Output: Speaker Connector (8ohm 2W 4Pin PH2.0 Speaker).Please use in insulated environment.
Input Power Supply12V DC 2A, port size :5.5x2.1mm, (Pls prepare the power adapter seperately).

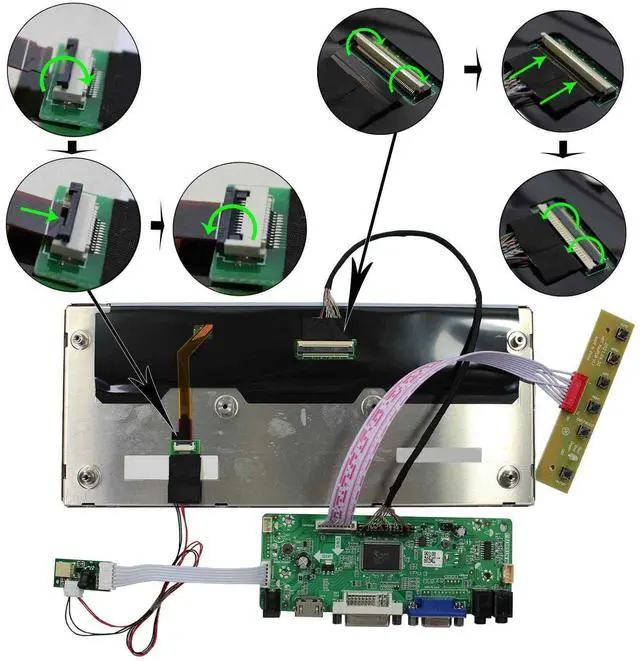

Plug and playConnecting cables and ports according to link picture details ,Power on,enter signal cable,Keyboard LED light become green,with correct resolution 1920x720,the screen can work well.
ApplicationsThis wide IPS screen with resolution and high brightness ,can be used as DIY sub display ,gaming marquee monitor ,car gauge ,advertising monitor ,etc.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

LCD Controller Board: Input
Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: DVI
VGA
Audio Output: Speaker
ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 139mm x 53mm x 17mm 10.3" 1920x720
LCD Screen: Display New Mode IPS Pro, Normally Black, TransmissiveResolution 1920 (RGB) 720Outline Size 259.811215. 7 (HVD) mmDisplay Area 243.691. 4 (HV) mmBrightness 850 cd/m (Typ. )Contrast Ratio 1000:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (2 ch, 8-bit), Connector, 50pinsBacklight 9S4P WLED
Input Voltage 3.3V (Typ.

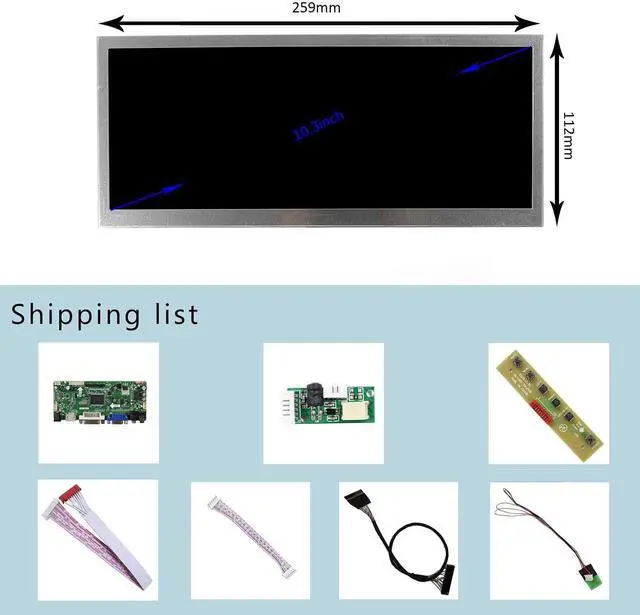

)Packing list: 1 VGA DVI LCD Controller Board M. NT 68676110.3" HSD103KPW2 JJ103IA 1920X720 LCD Screen1 Converter Board1 LVDs Signal Cable1 Keyboard With Cable
