SANXIXING 3PCS ESP32 S3 Development Board 2.4G WiFi BT Module Internet of Things ESP32-S3-WROOM-1 N16R8 MCU 44Pin 8M PSRAM with 1pc 50CM Type-C Cable Set

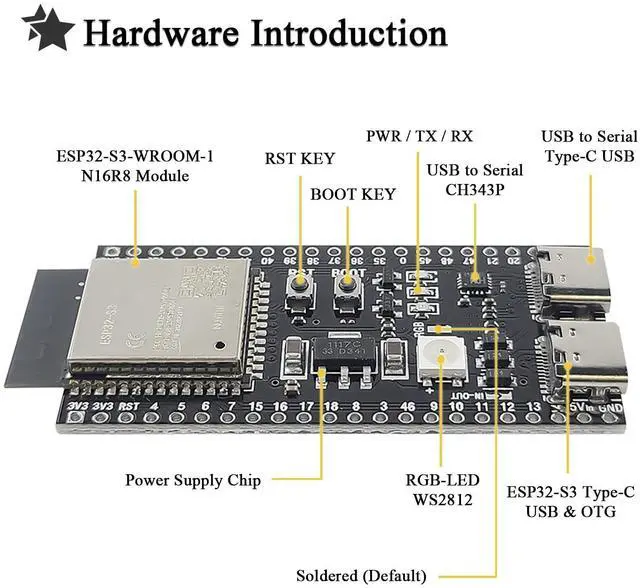

- ESP32-S3-DevKitC-1-N16R8 SPI voltage: 3.3 V, ESP32-S3-DevKitC-1 is an entry-level development board equipped with ESP32-S3-WROOM-1

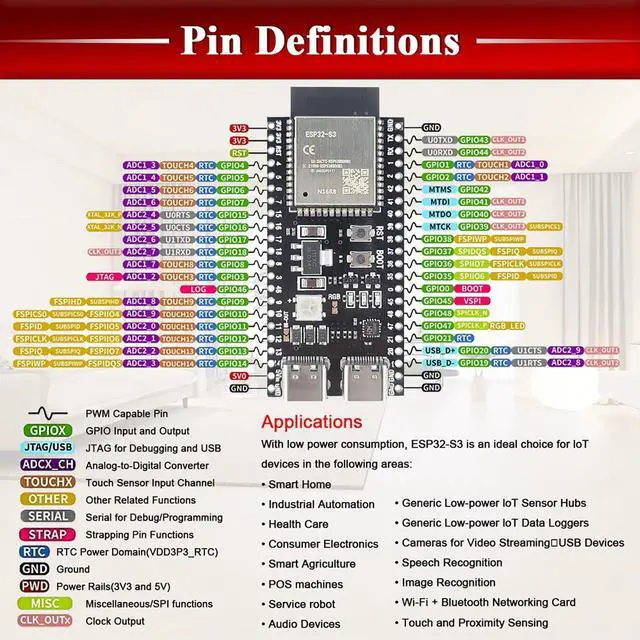

- Most of the I/O pins on the module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-S3-DevKitC on a breadboard
- The ESP32-S3-DevKitC development board equipped with ESP32-S3-DevKitC-1-N16R8, a general-purpose MCU module.
- ESP32-S3-WROOM-1-N16R8 cable can be used: USB Type A to Type-C cable or CC cable Note the distinction between the commonly used USB A port to Type-C cable that can only be charged, which cannot be used for communication
- USB-to-UART Port and ESP32-S3 USB Port (either one or both), default power supply (recommended) Package include:3pcs ESP32-S3 and 1pc x 50CM USB Type-C Cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
3PCS ESP32 S3 Development Board Module Internet of Things ESP32-S3 N16R8 MCU 44Pin 8M PSRAM with 1pc 50CM
Type-C Cable ESP32S3 SetHardware Setup: Connect the board with the computer using USB-to-UART Port or ESP32-S3 USB Port. In subsequent steps, USB-to-UART Port will be used by default.
Software Setup: Please proceed to Get Started, where Section Installation will quickly help you set up the development environment and then flash an application example onto your board.

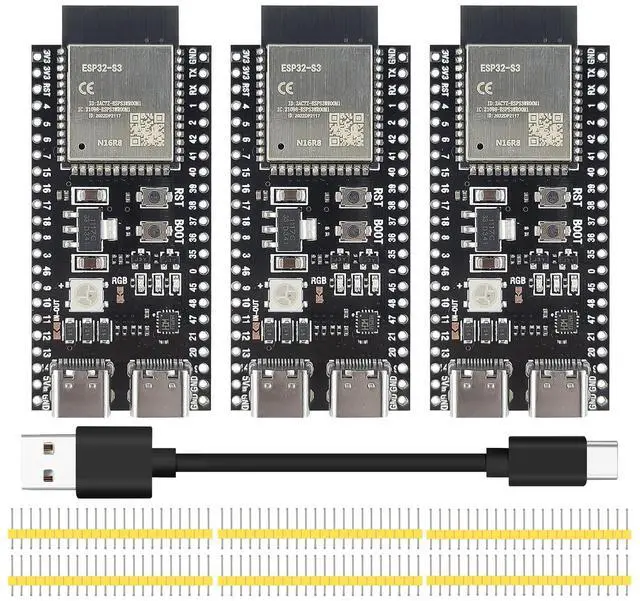

Package include: 3pcs x ESP32-S3-DevKit C Board + 1pc x 50CM USB Type-C Cable.
Type-C Cable ESP32S3 SetHardware Setup: Connect the board with the computer using USB-to-UART Port or ESP32-S3 USB Port. In subsequent steps, USB-to-UART Port will be used by default.
Software Setup: Please proceed to Get Started, where Section Installation will quickly help you set up the development environment and then flash an application example onto your board.
Package include: 3pcs x ESP32-S3-DevKit C Board + 1pc x 50CM USB Type-C Cable.
