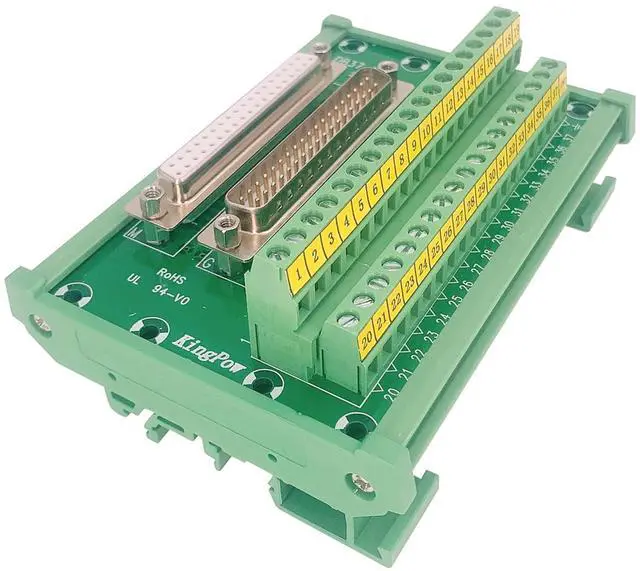

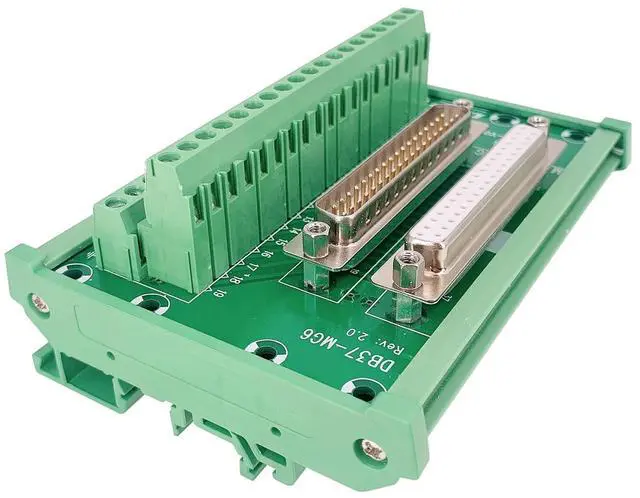

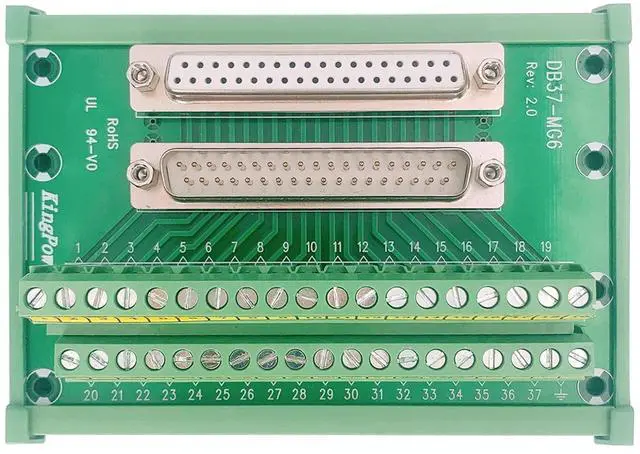

Jienk DB37 Male/Female D-SUB Din Rail Mount Interface Module, RS232 D-SUB Serial to 37-pin Port Terminal D-sub Terminal Block Breakout Board
- Male and Female RS232 DB37 connectors, Screw terminal block. This allowed customer to build an adapter to allow switching between devices without changing the field wiring cable.

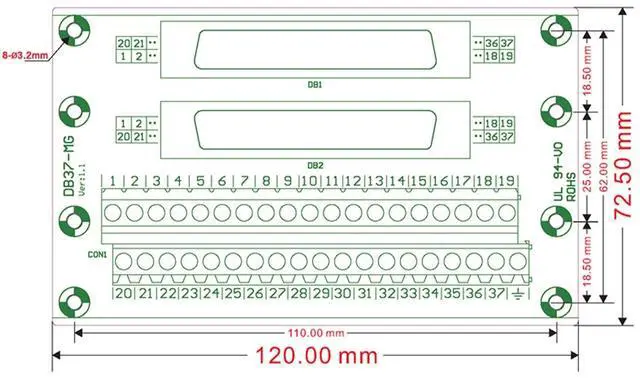

- FR-4 fiber glass PCB, dual copper layers. PCB dimensions: 72 x 116mm(W x L).
- Din rail mountable - for DIN C45 width 35 / 32 / 15mm rails, Din mount case can be taken apart for panel mount use.
- Terminal block: Pitch 5.08mm/0.2" miniaturization screw terminal block. Wire range: 28-12AWG.
- External dimensions: 85 x 120mm(W x L ).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Male and Female RS232 DB37 connectors, Screw terminal block. This allowed customer to build an adapter to allow switching between devices without changing the field wiring cable. ^^ FR-4 fiber glass PCB, dual copper layers.
PCB dimensions: 72 x 116mm (W x L). ^^ Din rail mountable - for DIN C45 width 35 / 32 / 15mm rails, Din mount case can be taken apart for panel mount use.
^^ Terminal block: Pitch 5.08 mm/ 0.2" miniaturization screw terminal block.
Wire range: 28-12AWG.
^^ External dimensions: 85 x 120mm (W x L ).
PCB dimensions: 72 x 116mm (W x L). ^^ Din rail mountable - for DIN C45 width 35 / 32 / 15mm rails, Din mount case can be taken apart for panel mount use.
^^ Terminal block: Pitch 5.08 mm/ 0.2" miniaturization screw terminal block.
Wire range: 28-12AWG.
^^ External dimensions: 85 x 120mm (W x L ).
