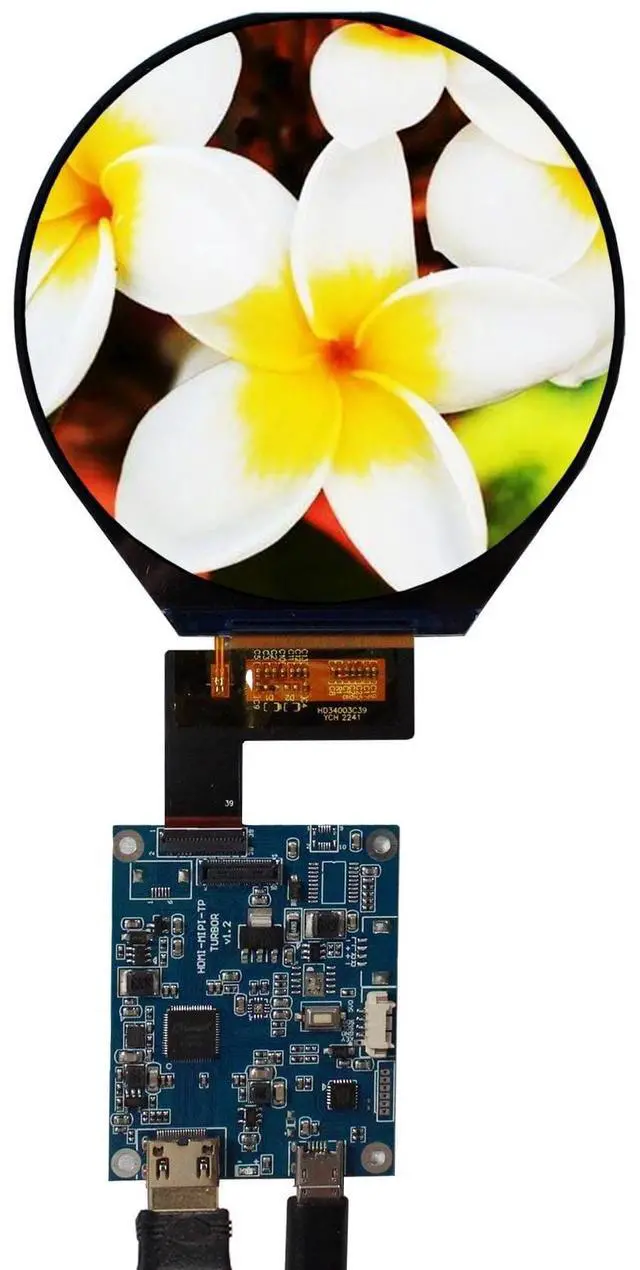

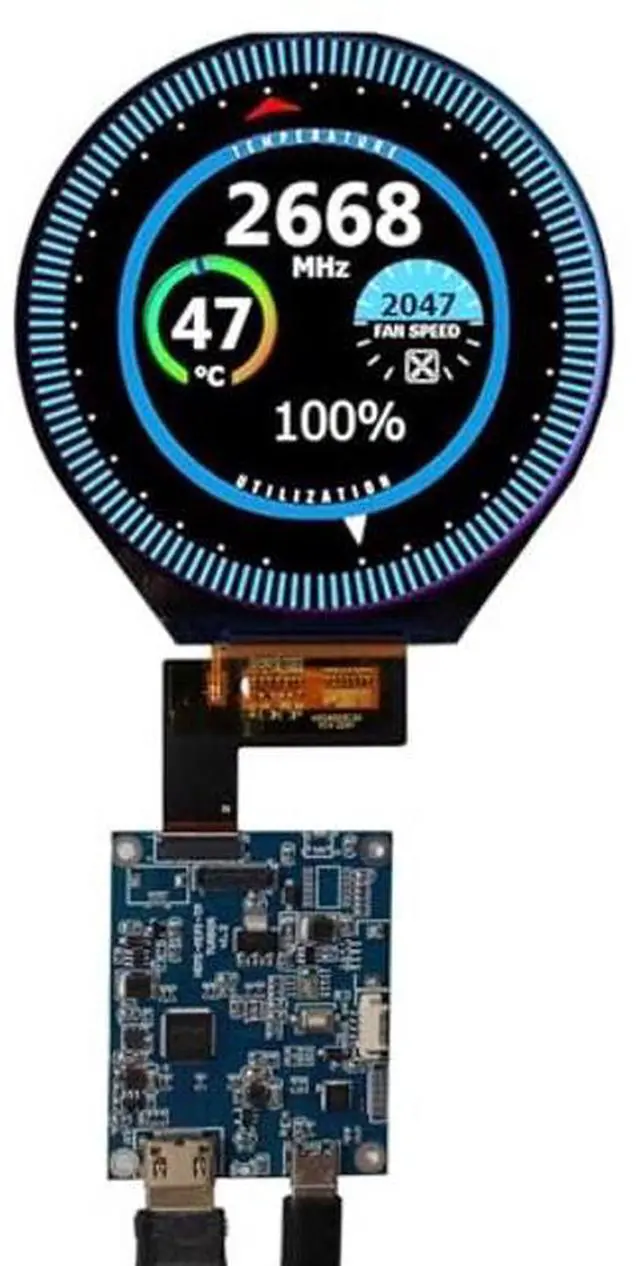

FanyiTek 3.4 inch 800x800 IPS MIPI 330nit Round LCD Screen and 39 pins Controller Board,Micro USB Power Port
- Round MIPI screen3.4" 800x800 VS34003C39 cirle display,IPS full viewing angle,outline size:94.9x96.95x2.3(WHD)mm,display area:87.6x 87.6(WH)mm,330nit high brightness ,WLED backlight ,input voltage: 2.8V .

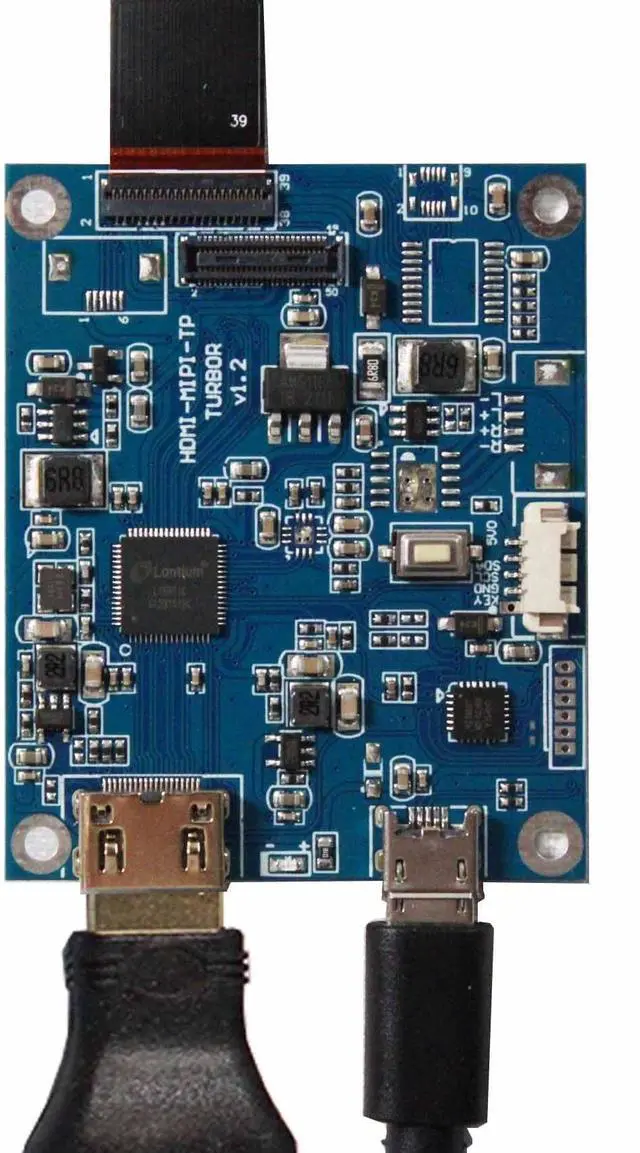

- Controller boardVideo input :port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
- Input Power5Vdc More than 1A,Pls prepare it seperately .

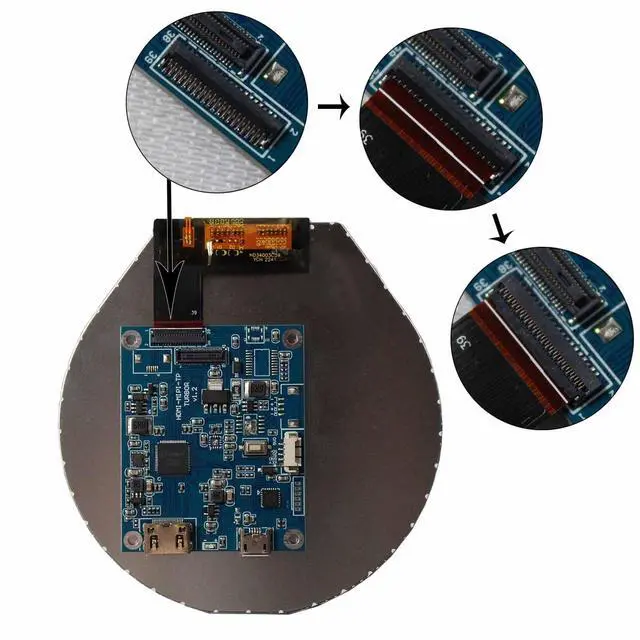

- Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.

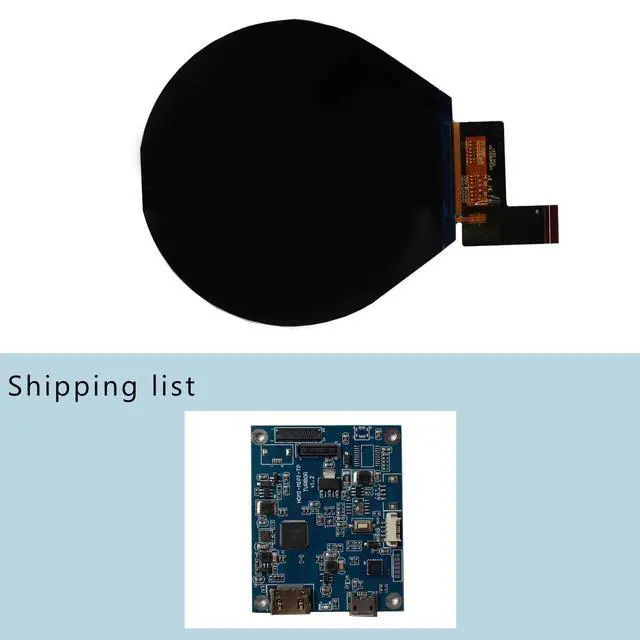

- Packing lists1 LCD Board for 40Pin VS-TURBOR-04 ,1 3.4inch VS34003C39 800x800 LCD Screen
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board: Input
Power Adapter: USB 5V More than 1A. Come In Standby Model When Not
Input SignalVideo Input: Micro
H/DBoard Size: 50mm x 35mm x 5mm 3.4" VS34003C39 800X800
LCD Screen: Display Mode IPS MVA, Normally Black, TransmissiveResolution 800 (RGB) x800Outline Size 94.9 x 96.95 x 2.3 (WHD) Display Area 87.6 x 87.6 (WH) Brightness 330 cd/m (Typ. )Contrast Ratio 300:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Interface Mipi, 39 pins, Backlight WLED
Input Voltage 2.8V (Typ.
)Packing list: 1 LCD Board for 40Pin VS-TURBOR-041 3.4 inch VS34003C39 800x800 LCD Screen
Power Adapter: USB 5V More than 1A. Come In Standby Model When Not
Input SignalVideo Input: Micro
H/DBoard Size: 50mm x 35mm x 5mm 3.4" VS34003C39 800X800
LCD Screen: Display Mode IPS MVA, Normally Black, TransmissiveResolution 800 (RGB) x800Outline Size 94.9 x 96.95 x 2.3 (WHD) Display Area 87.6 x 87.6 (WH) Brightness 330 cd/m (Typ. )Contrast Ratio 300:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Interface Mipi, 39 pins, Backlight WLED
Input Voltage 2.8V (Typ.
)Packing list: 1 LCD Board for 40Pin VS-TURBOR-041 3.4 inch VS34003C39 800x800 LCD Screen
