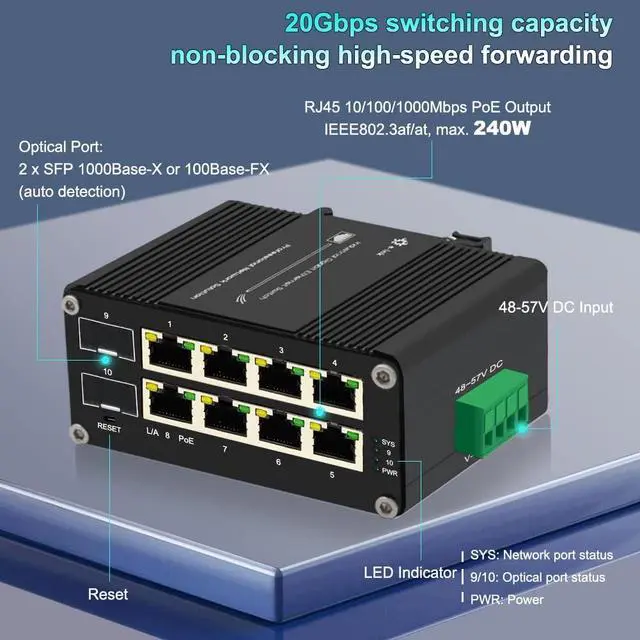

Overview: This is a managed industrial network switch with 8 ports 10/100/1000Base-TX RJ45 and 2 ports 100/1000Base-X SFP. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Features: 8x10/100/1000Base-TX + 2x100/1000Base-X SFP10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
Supports IEEE 802.3 at PoE+ (30W per port) Supports 802.3 x Flow ControlSupport IEEE 802.3 / 802.3 u/ 802.3 ab/ 802.3 z/ 802.3 x store and forward modeIEEE 802.3 az Energy Efficient Ethernet (EEE)
Support Ring Network: Redundancy
Protocols: Support STP/RSTP
Multicast Support: Support
IGMP Snooping V1/V2/V3VLAN: Support IEEE 802.1Q 4K
VLANQOS: Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue
WeightDiagnostic Maintenance: Support port mirroring, Syslog, PingManagement
Function: WEB
Security: Broadcast/Multicast Storm Protection, MAC filtering, MAC

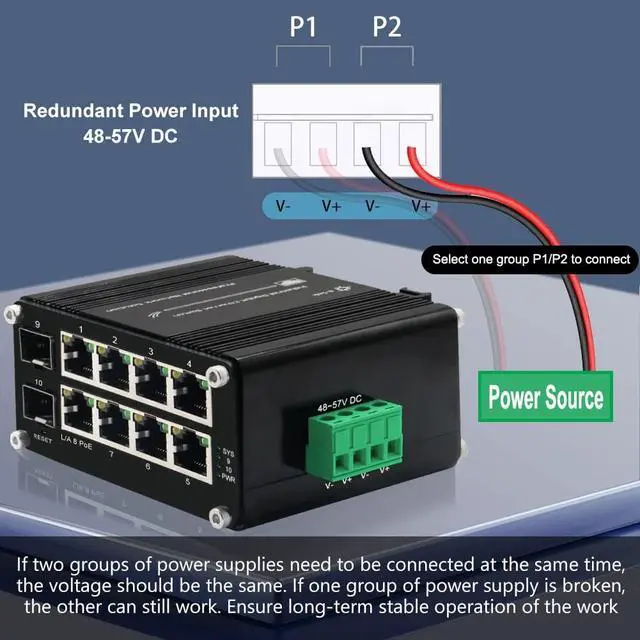

ConstraintPlease Attention: This Din Rail Ethernet Switch dont contain Power Supply, You need to purchase separately. 48V/240W recommended (Determined by the total power of your devices)
