Digital IO Board Kit, Project Starter Kit for DE10 FPGA for MisterFPGA, SDRAM V2.9 for Multi Gaming Console

How to
Use: Take out the product and install it inSpecification: Item
Type: Digital
IO Board KitMaterial: PCB
Memory: for Mister SDRAM XS D V 2.9 (128+128MB) Additional Function ICVideo and Voice
Frequency Interfaces: Analog Voice Frequency (tape input)
Network Interface:
EthernetOS: For DE10 NanoFor MiSTer Digital IO Board v 1.2

Details

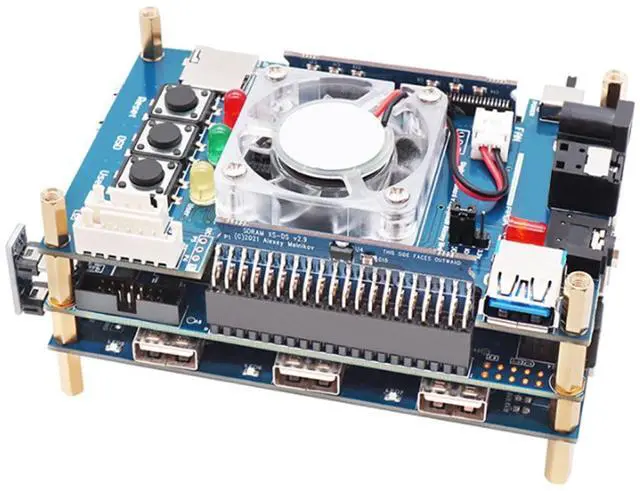

: The For MiSTer FPGA Digital v 1.2 IO Board is anOptional Expansion Board That Can Be Used by Plugging into the Top of the for Terasic DE10 Nano SoC and Allows SDRAM Modules. Has a USB 3.0 Connector That Supports for Mega Drive, for for Master System Gamepads Using for SNAC Adapter BoardsAdded the Following Features for the for

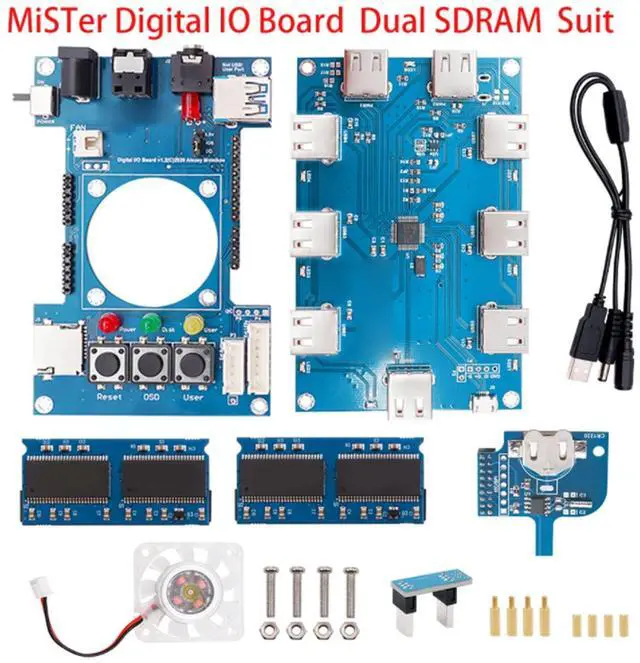

MiSTer: For Terasic DE10 Nano FPGA BoardIncludes Silent Fan or for Noctua NF A4x10 FanBuilt in on and off Power SwitchDigital for TOSLINK Connector 3.5 mm for Analog Voice Frequency (tape input) 3 User Buttons and 3 Status LEDsAuxiliary Micro Storage Card SlotPackage List: 1 x HUB1 x lO Board1 x DC 1 Point 2 Lines1 x USB Bridge1 x For Mister RTC V 1.3 Clock Board2 x For Mister SDRAM XS D V 2.9 Board1 x Fan4 x Fan Screws4 x Fan Nuts5 x lO Plate Screw5 x lO Plate Nut1 x
User ManualNote: The SW3 switch on the motherboard for DE10 Nano must be turned to the "On" position for the digital IO board to work properly
