AVR SE350 Automatic Voltage Regulator Control Module for Generator Genset with 2 Year Warranty!
- SE350 AVR - Automatic Voltage Regulator - Exact Generic Replacement Sensing & Power Input: 190 - 240 Vac Burden: 500 VA
- Output Power - Continuous: 73 Vdc at 3.5 Adc (255w)
- Output Power - Forcing (240 Vac Input Power): 105 Vdc at 5 Adc (525w)
- Regulation: 1.0%
- Remote Voltage adjustment Range: 10% with 2000 ohm rheostat
- 5% with 1000 ohm rheostat
- Frequency Compensation: Adjustable Roll off frequency: 54 - 64 Hz for 60 Hz
- 45 - 51 Hz for 50 Hz
- Operation: Weight 6.5 oz
- Operating Temperature: -40C to + 60C
- Storage Temperature: -60C to + 85C
- Power Dissipation: 8 watts maximum
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

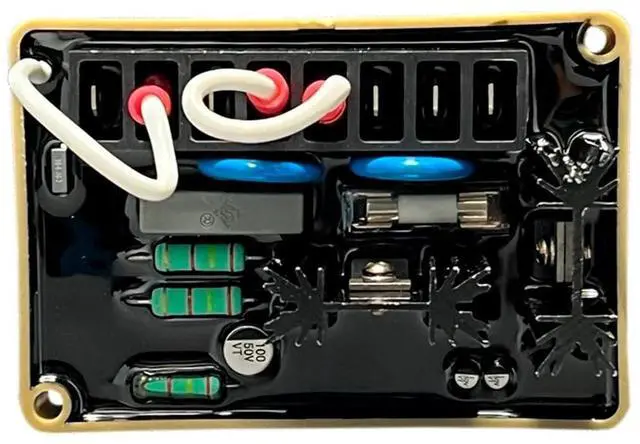

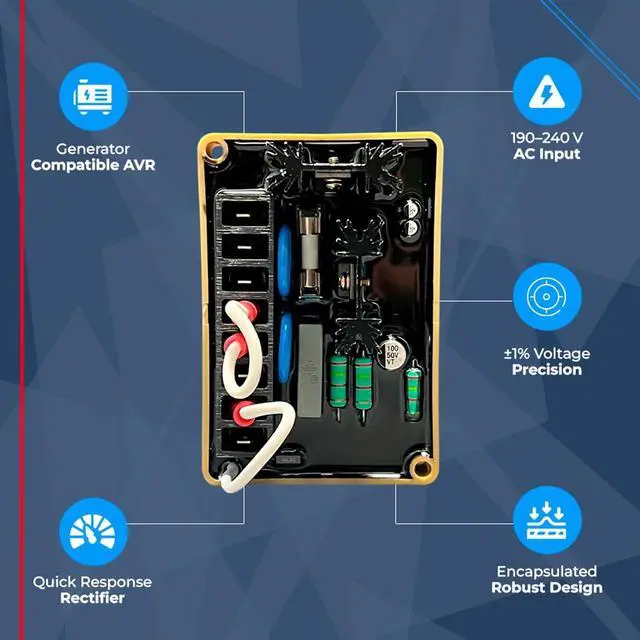

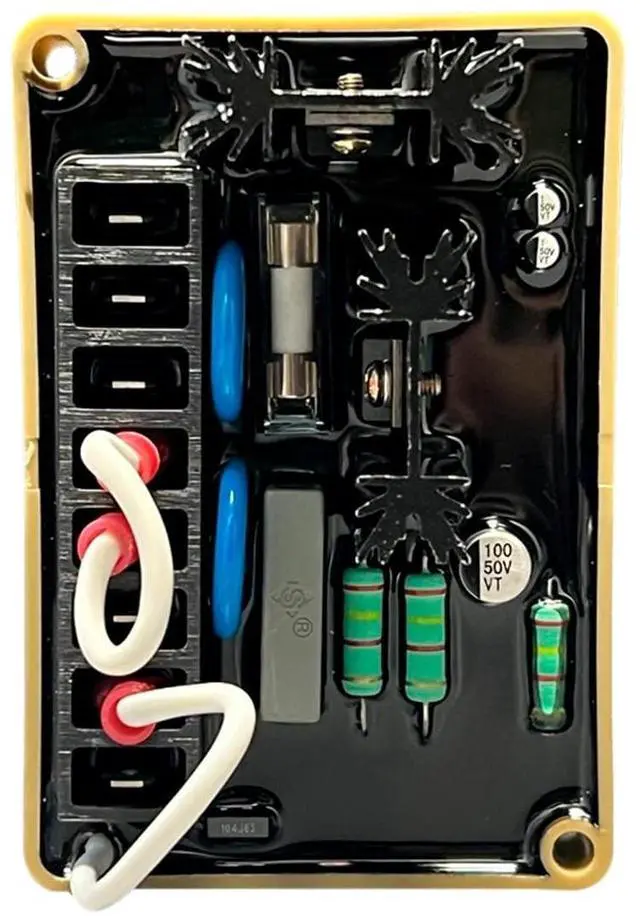

SE350 AVR - Automatic Voltage Regulator - Exact Generic Replacement The SE350 voltage regulator is an encapsulated electronic voltage regulator that controls the output of a brushless AC generator by regulating the current into the exciter field.
Sensing & Power Input: 190 - 240
Vac Burden: 500 VA

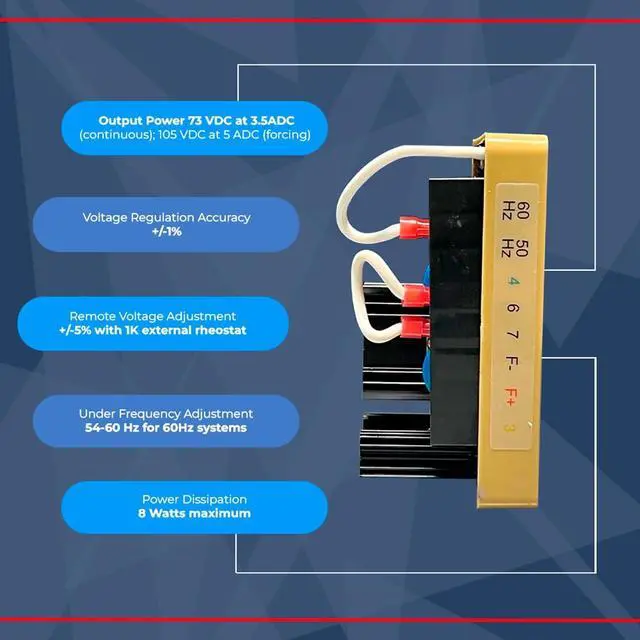

Output Power - Continuous: 73 Vdc at 3.5 Adc (255w) Output Power - Forcing (240 Vac
Input Power): 105 Vdc at 5 Adc (525w)
Regulation: 1.0 % Remote
Voltage adjustment Range: 10% with 2000 ohm rheostat 5% with 1000 ohm rheostat
Frequency Compensation: Adjustable
Roll off frequency: 54 - 64 Hz for 60 Hz 45 - 51 Hz for 50
Hz Operation: Weight 6.5 oz
Operating Temperature: -40C to + 60C
Storage Temperature: -60C to + 85C
Power Dissipation: 8 watts maximum
Voltage Buildup: Internal Provisions for automatic voltage build up from generator residual voltage as low as 10 Vac.

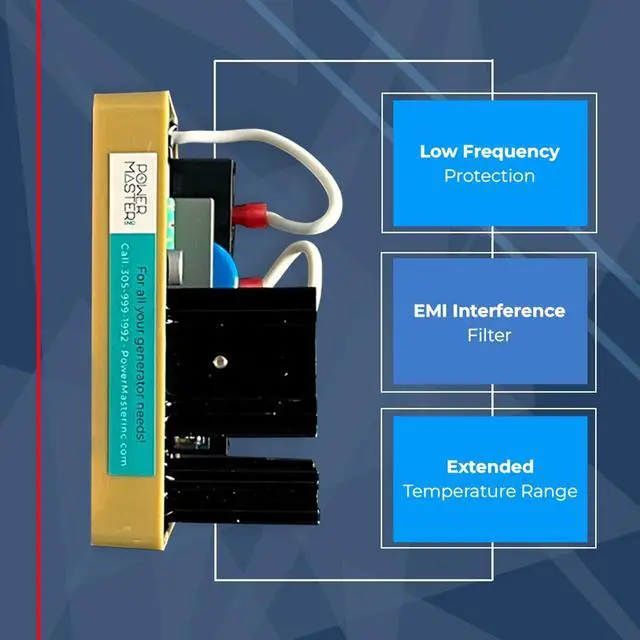

EMI Suppression: Internal Electromagnetic Interference filter (EMI Filter)
Sensing & Power Input: 190 - 240
Vac Burden: 500 VA
Output Power - Continuous: 73 Vdc at 3.5 Adc (255w) Output Power - Forcing (240 Vac
Input Power): 105 Vdc at 5 Adc (525w)
Regulation: 1.0 % Remote
Voltage adjustment Range: 10% with 2000 ohm rheostat 5% with 1000 ohm rheostat
Frequency Compensation: Adjustable
Roll off frequency: 54 - 64 Hz for 60 Hz 45 - 51 Hz for 50
Hz Operation: Weight 6.5 oz
Operating Temperature: -40C to + 60C
Storage Temperature: -60C to + 85C
Power Dissipation: 8 watts maximum
Voltage Buildup: Internal Provisions for automatic voltage build up from generator residual voltage as low as 10 Vac.
EMI Suppression: Internal Electromagnetic Interference filter (EMI Filter)
