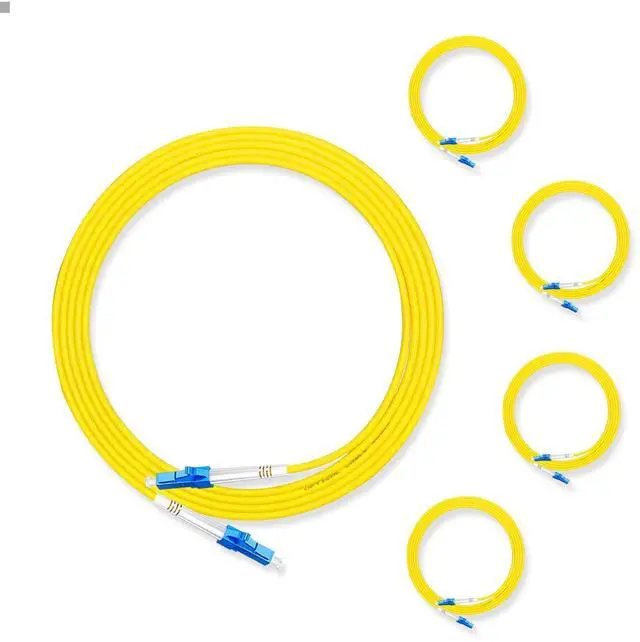

Lebrudos 5Pcs 3 Meter Fiber Optic Patch Cord LC UPC to LC UPC, Simplex Single Mode Fiber Cable Jumper OS2 G652D 9/125m, 1310nm/1550nm LSZH 3.0mm

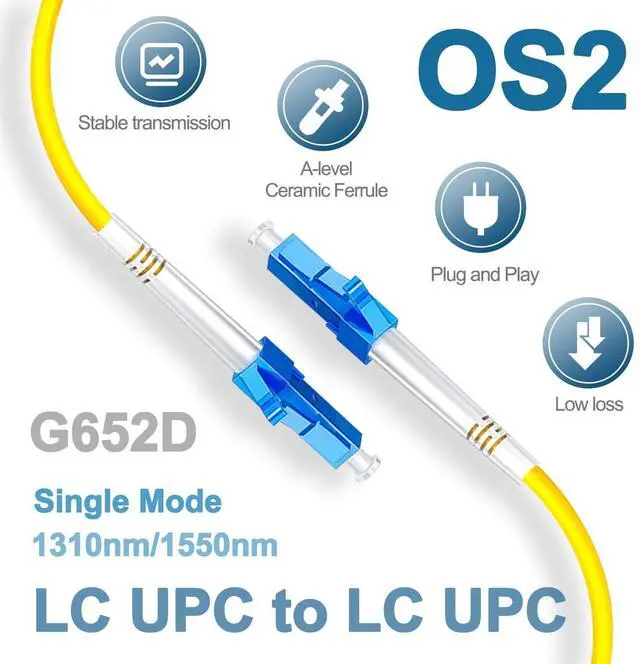

- Main Parameters5Pcs 3 Meter (3.28ft) LC UPC to LC UPC Single Mode Simplex OS2 Fiber Optic Patch Cord9/125 m G652D fiber core, which supports 1310nm/1550nm wavelength
- High PerformanceThe fiber patch cord 0.2dB repeatability and interchangeability, 0.3dB insertion loss, and 50dB return loss. The low insertion loss and high return loss ensure stable transmission. which can operates reliably in a temperature range of -20~70C.

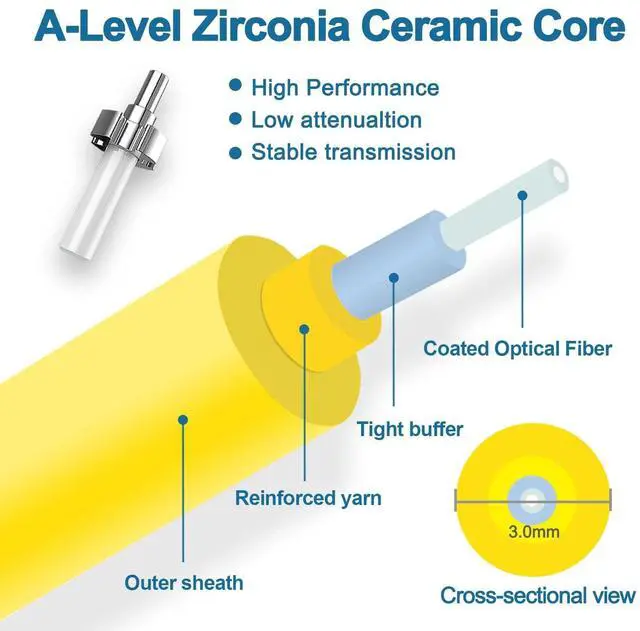

- 3.0mm&LSZH Fiber Jacket The Fiber Optic Patch Cord is buffered to the specified size of 0.9mm with LSZH material, and a Reinforced yarn is used as a strength member to wrap the 0.9mm buffer layer. The 3.0mm external LSZH jacket is used to protect the internal structure. It is equipped with an A-level zirconia ceramic core, ensuring data transmission quality and providing good tensile performance and flame retardancy for the cable.
- OS2 9/125m FiberCompared to traditional Fiber Optic Patch Cords, the 9/125m OS2 bend-insensitive single-mode fiber optic patch cor
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description-The main function of fiber optic patch cords is to serve as a key component connecting different devices to the fiber optic cabling system. It is designed with a thick protective layer, typically used for connecting optical transceivers and termination boxes. Fiber optic patch cords are widely used in various applications, including fiber optic communication systems, fiber optic access networks, fiber optic data transmission, local area networks (LAN), fiber optic cable television (CATV), fiber optic sensors, and many other fields. Product DetailsConnectorLC/UPC to LC/UPCWire Diameter 3.0 mmFiber TypeSingle mode G652DFiber CountSimplexCore Diameter9/125mWavelength1310nm/1550nmSheath materialLSZHInsert typeA-level zirconia ceramic coreInsertion Loss 0.30R eturnback Loss 50dBRepeatability 0.2 dBInterchangeability 0.2 dBWorking Temperature -20 ~70 Storage Temperature - 40 ~80 Cable Length3MPacking Quantity5 PCS
