ZK3002 Digital Power Amplifier Board, TPA3255 Chip 300W x 2 Dual Channel 600W Mono Audio AMP Board with Heat Sink, DC18-50V,for Home Passive Speakers DIY

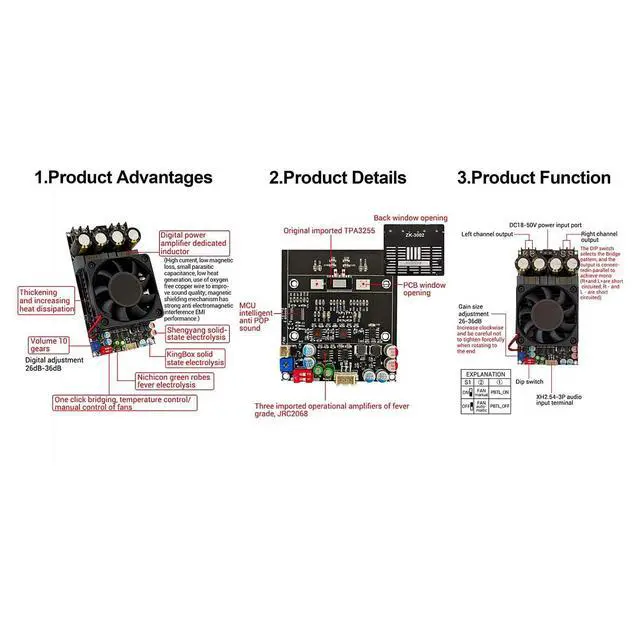

- TPA3255 Chip: Featuring the advanced TPA3255 chip, our amplifier incorporates cutting digital sound processing technology, delivering an exceptional sound experience. Its efficient power conversion performance allows for a dual channel output of 300+300W and a robust single channel output of 600W, ensuring powerful and clear sound output.
- One Click Bridging: To meet diverse sound requirements, our amplifier supports bridging functionality, allowing users to configure the system flexibly. In bridged mode, the power output is significantly enhanced, providing users with a more varied sound layout and immersive sound experience.
- Thickened and Enlarged Heat Sink: Equipped with large and efficient heat sinks, the device ensures stable under sustained high power output. The enlarged and thickened heat sink effectively dissipates generated heat, enhancing the operational efficiency of the amplifier board and ensuring outstanding performance under high loads.
- Digital Amplifier Specifi
+
+
Overview
Specs
Reviews
Specification: Item
Type: Power
Amplifier BoardMaterial: PCB
Supply Voltage: 1850VApplicable
Speakers: BTL Dual Channel Mode 38 (50300W); PBTL Mono Mode 28 (100600W) Number of
Channels: Left and
Right Dual ChannelOutput Power: 300W and 300WHeat
Sink: Large
Heat SinkProtecting Mechanism: Over Voltage, Under Voltage, Overheating, Short

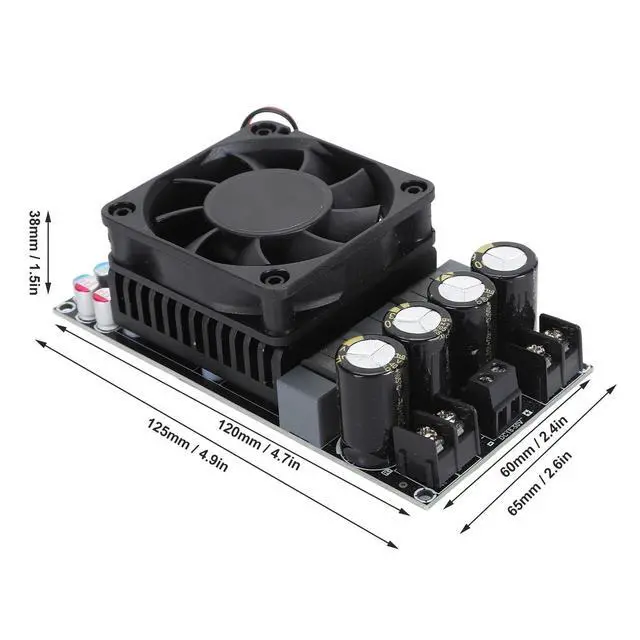

CircuitSize: Approx. 125x65x38mm / 4.9 x 2.6 x 1.5 inPackageList: 1 x Amplifier Board1 x
Connection CableNotice: All data are measured manually, and there are certain errors in the measurement results.
Type: Power
Amplifier BoardMaterial: PCB
Supply Voltage: 1850VApplicable
Speakers: BTL Dual Channel Mode 38 (50300W); PBTL Mono Mode 28 (100600W) Number of
Channels: Left and
Right Dual ChannelOutput Power: 300W and 300WHeat
Sink: Large
Heat SinkProtecting Mechanism: Over Voltage, Under Voltage, Overheating, Short
CircuitSize: Approx. 125x65x38mm / 4.9 x 2.6 x 1.5 inPackageList: 1 x Amplifier Board1 x
Connection CableNotice: All data are measured manually, and there are certain errors in the measurement results.
