GwliUni 2Pcs 1m MPO Fiber Optic Patch Cord, OM4 Multi-Mode Cable Jumper Plug, Female to Female, 12 Core 6 Channel Type B, PC end face, LSZH 3.0mm, Compatible with 8 Core 4 Channel MPO

Main Parameters1m(3.3 feet) MPO to MPO multi-mode OM4 3.0mm fiber patch cord, female to female connector; utilizes type B wiring structure, PC polished end face

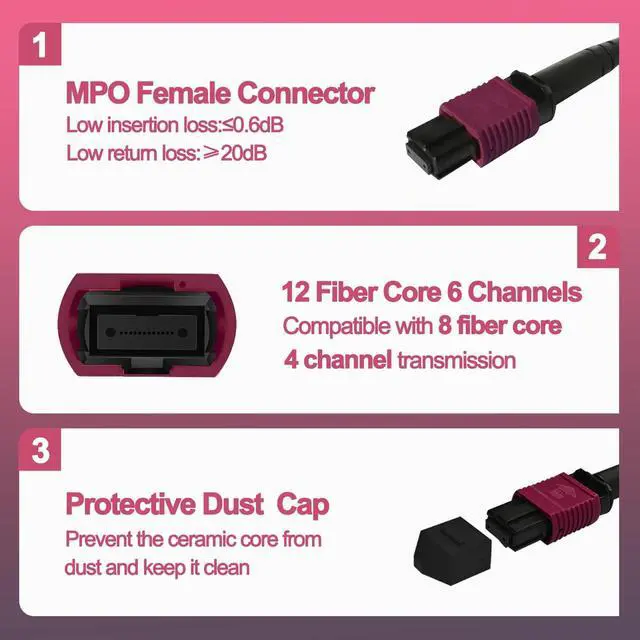

12 Cores 6 channelThe MPO cable supports 12 cores fiber 6 channel transmission, which is compatible with 8 core fiber 4 channel transmission, achieving high-performance information transmission of 40G-100G.

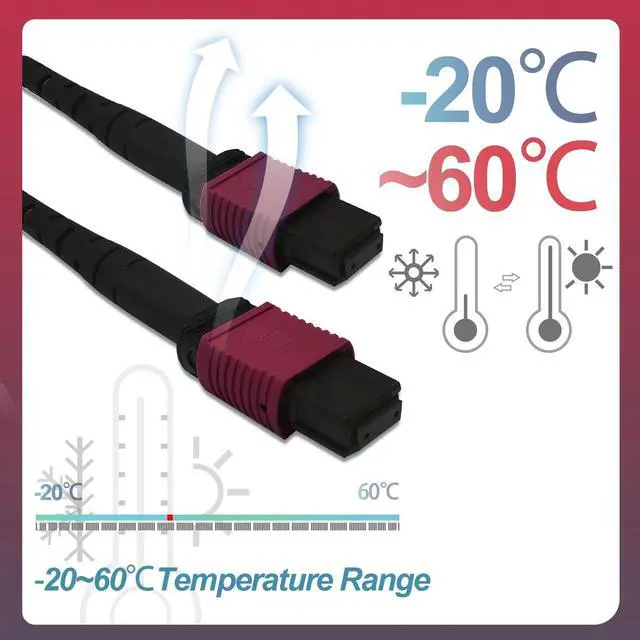

Stable Signal transmissionThe signal is transmitted by high-quality connectors (low insertion loss0.6dB, high return loss 20dB). And the connectors can be pluged for more than >1000+ time, supports operating -20to 60 temperature

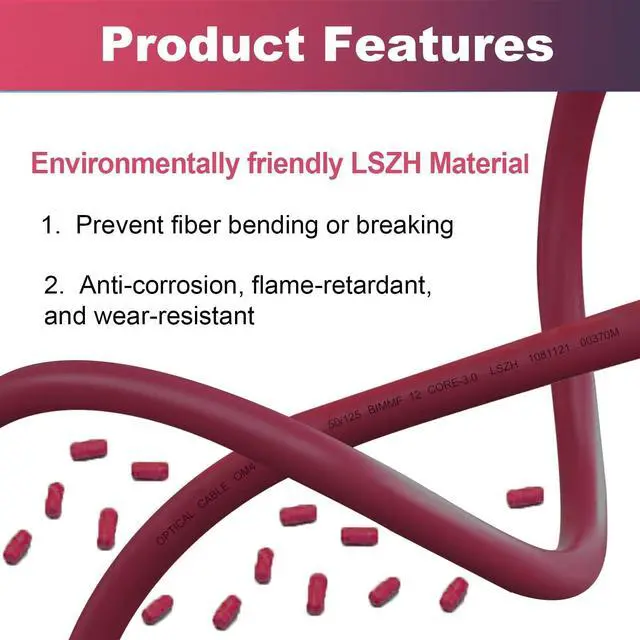

Good Fiber ProtectionMPO fiber jumpers adopt environmentally friendly LSZH outer sheath material to effectively prevent fiber bending or breaking.It also has anti-corrosion, flame-retardant, and wear-resistant characteristics.
Widely applicableThe MPO is widely deployed in high end data centers for 40G-100G data transmission in fiber communication systems, like QSFP+ and QSFP28 optical mo

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Product Description-All the data were tested with high-precision instruments-MPO jumpers are widely used in the environment where high-density integrated optical fiber lines are needed in the wiring process, and the internal and external connection applications of FTTX, 40/100GSFP, and other transceiver modules or devices.

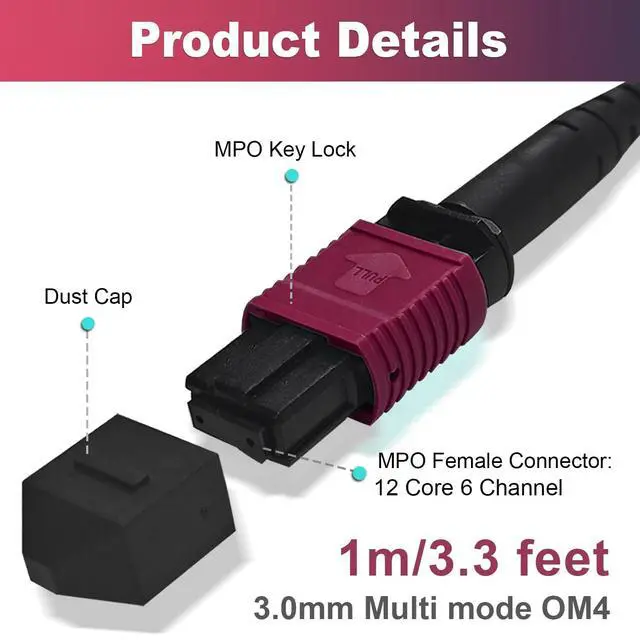

Product DetailConnector Type: MPO Female to
MPO FemaleFiber type: 3.0 mm OM4 Multi modeEnd
Face Type: PCCore
Type: 12 Core 6 ChannelsCompatible with 8 Core 4
ChannelInsertion Loss: 0.6 dbReturn
Loss: 20dbOperating
temperature: -20~60Cable
Length: 1m/ 3.3 feetCacket MaterialLZSH

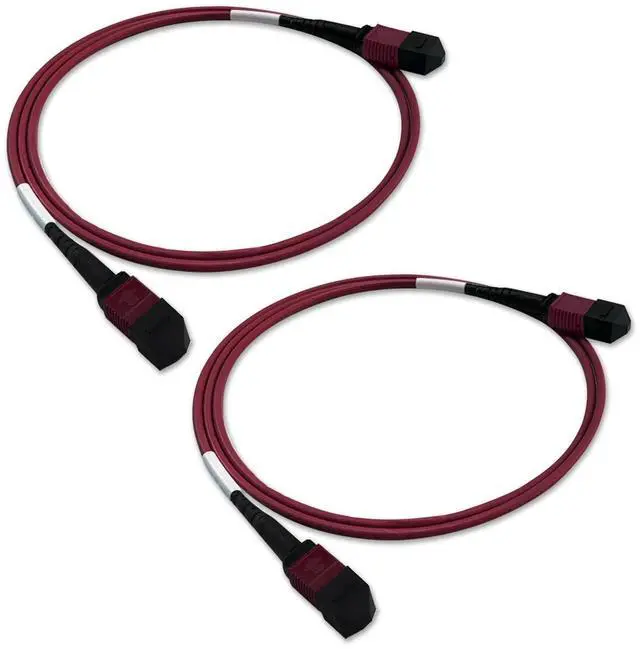

Packing Quantity: 2 PCS
