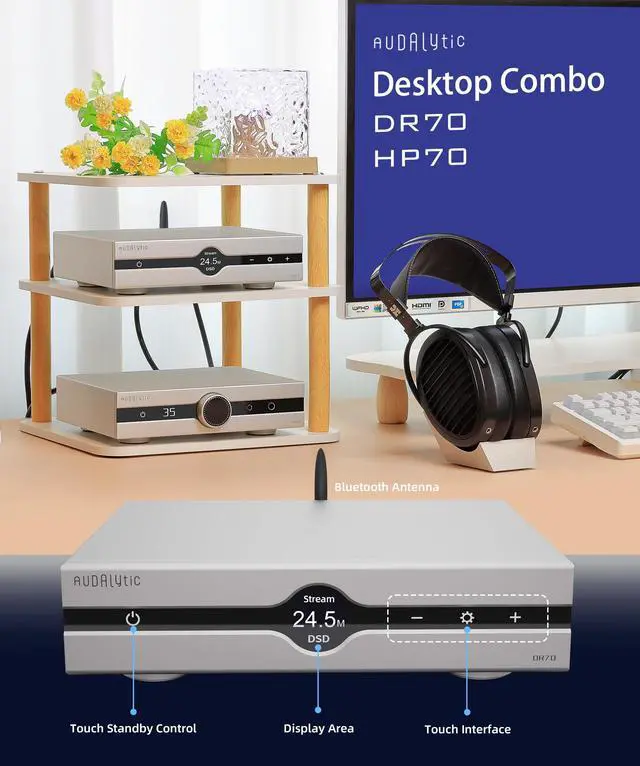

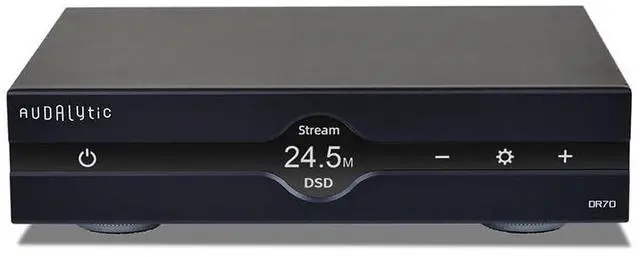

Gustard Audalytic DR70 R2R Streaming DAC DSD512 PCM768 Decoder (Black)
- True 1-Bit DSD D/A Converter with native DSD512 support. In DIRECT DSD mode, the DSD signal is routed directly to the 1-bit switching array DAC circuit, completely bypassing PCM conversion. Using pure hardware processing, the system directly translates the DSD bitstream into analog, preserving the full dynamic range and detail of the original pulse modulation.
- Employing a field-programmable gate array (FPGA), this custom-configured digital integrated circuit allows flexible implementation of logic functions, including clock management and digital shaping. Integrated with exclusive technologies such as DoP demodulation and PCM/DSD depop switching, the FPGA lays a solid foundation for exceptional sound quality.
- Features the third-generation UsB Audio XU316, supporting up to PCM 768kHz and DSD512.
- CK01 Clock Module, Delivers femtosecond-grade precision timing for the entire system.
- Independent voltage regulation for each circuit group minimizes interference and ensures optimal
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Digital InputCOAX/OPT Input Support: PCM 16-24bit/ 44.1 -192kHz; DSD DoP64USB/Streamer
Input support:
PCM: 16-32bit/ 44.1 -768kHZ;
DSD: DoP64-DoP256;
Native DSD: DSD64-DSD512Bluetooth
5.0 support: LDAC, AAC, SBC, aptX, LDAC enables 24-bit/96kHz high-resolution transmissionUSB
Host Compatibility: Windows 7/8/10/11(32/64-bit); mac I0S;
LinuxAnalog OutputFrequency Response: 20Hz-20kHz( 0.2 dB, OS
Mode)Dynamic Range: >111dBSignal-to-Noise
Ratio: >113dBChannel
Crosstalk: -125dB
@ 1kHzTHD+N: 0.004
% @ 1kHzIMD: 0.009 % @ -2dBFSRCA
Output Level: 2Vrms (Fixed)
RCA Output lmpedance: 100XLR
Output Level: 4Vrms (Fixed) XLR
Output lmpedance: 100OthersPower
Supply: AC 115V/230V, 50/60HzPower
Consumption: <10WDimensions
(WxDxH): 220 x170 x 50 mm (excluding protrusions)
Net Weight: 1.5 kgPackage
Dimensions: 295 x 265 x 85 mmShipping
Weight: 2.0 kg
Input support:
PCM: 16-32bit/ 44.1 -768kHZ;
DSD: DoP64-DoP256;
Native DSD: DSD64-DSD512Bluetooth
5.0 support: LDAC, AAC, SBC, aptX, LDAC enables 24-bit/96kHz high-resolution transmissionUSB
Host Compatibility: Windows 7/8/10/11(32/64-bit); mac I0S;
LinuxAnalog OutputFrequency Response: 20Hz-20kHz( 0.2 dB, OS
Mode)Dynamic Range: >111dBSignal-to-Noise
Ratio: >113dBChannel
Crosstalk: -125dB
@ 1kHzTHD+N: 0.004
% @ 1kHzIMD: 0.009 % @ -2dBFSRCA
Output Level: 2Vrms (Fixed)
RCA Output lmpedance: 100XLR
Output Level: 4Vrms (Fixed) XLR
Output lmpedance: 100OthersPower
Supply: AC 115V/230V, 50/60HzPower
Consumption: <10WDimensions
(WxDxH): 220 x170 x 50 mm (excluding protrusions)
Net Weight: 1.5 kgPackage
Dimensions: 295 x 265 x 85 mmShipping
Weight: 2.0 kg
